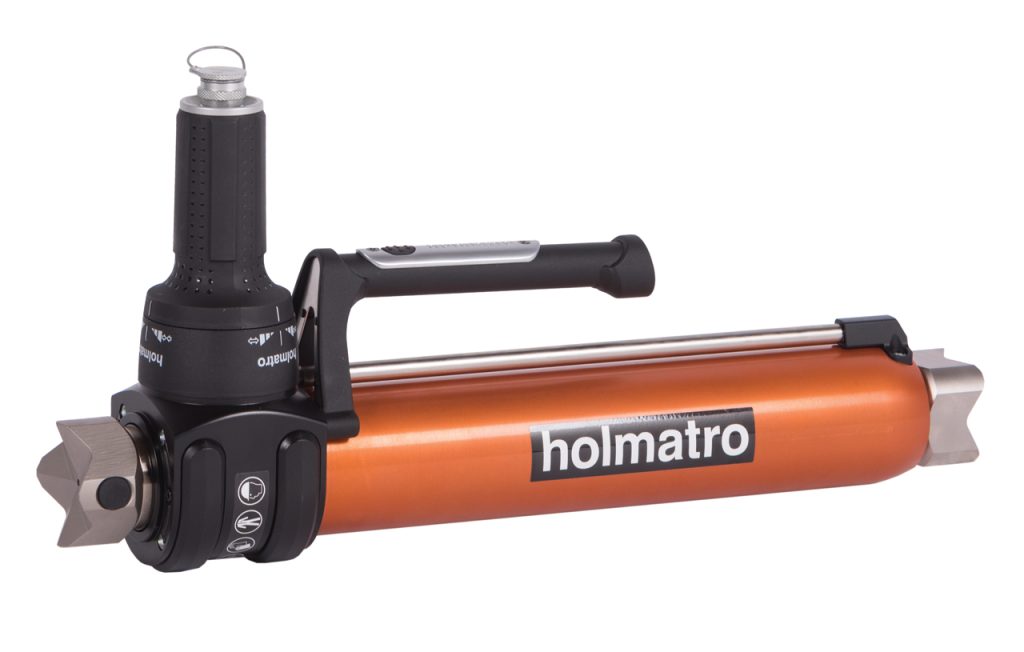

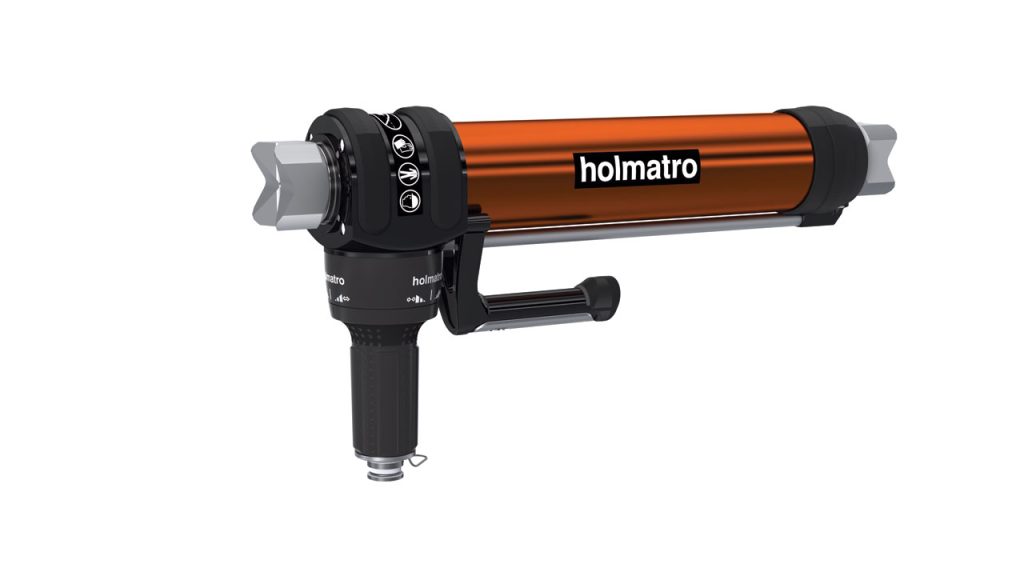

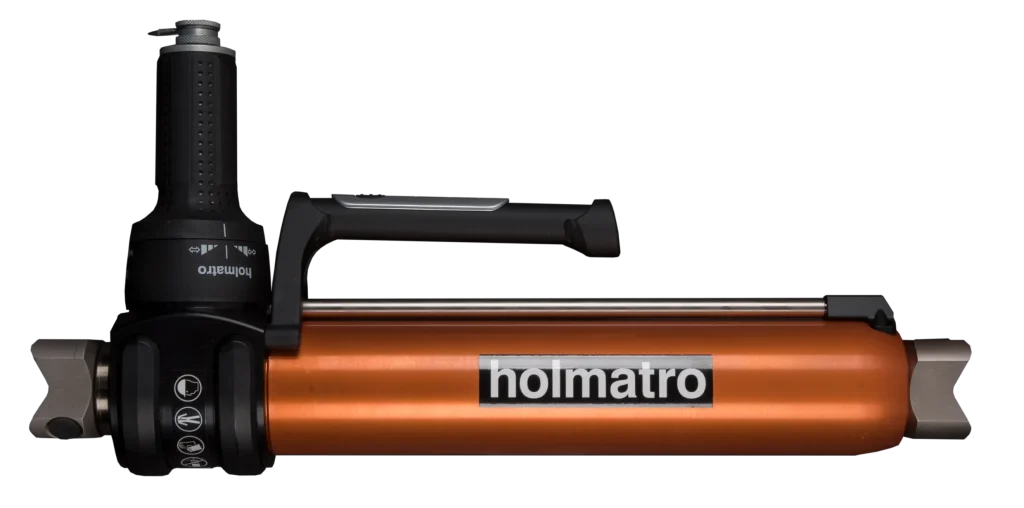

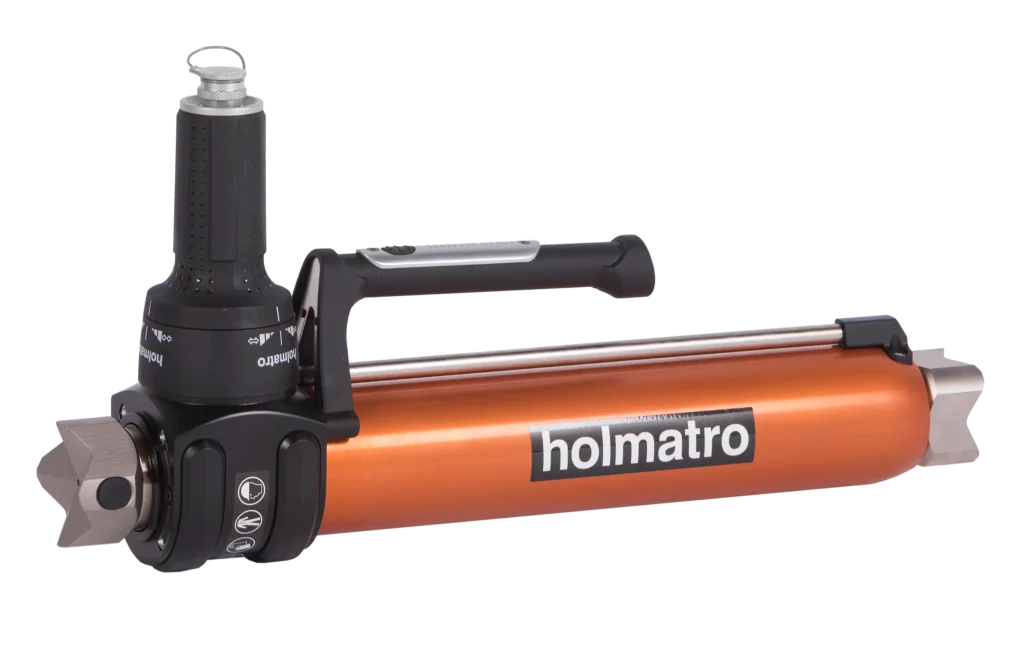

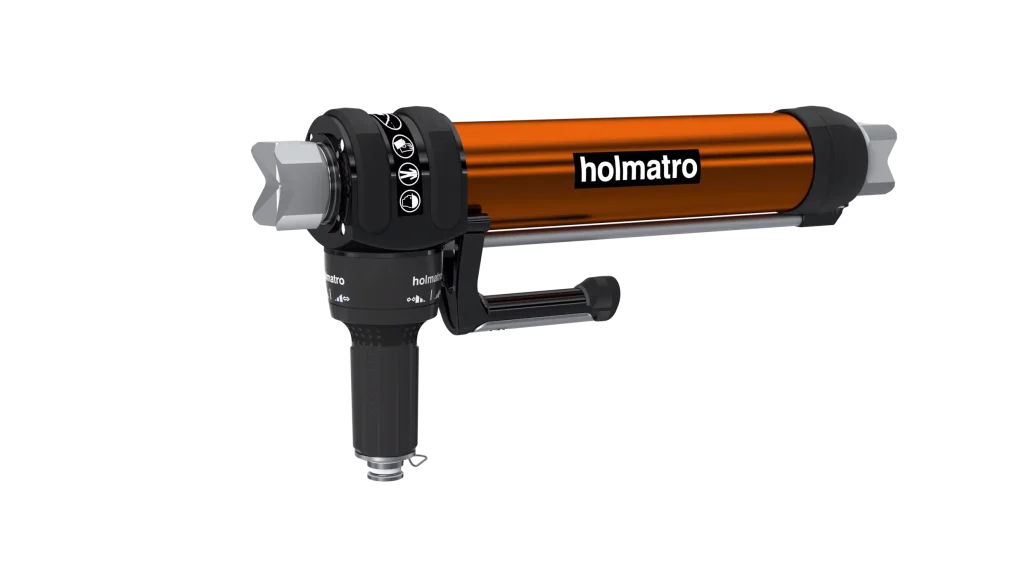

Telescopic Ram TR 5350 LP
Features & benefits
- Lighter than ever, thanks to new materials, component integration and smart design. Easier to carry and handle, reducing physical strain.
About the Telescopic Ram TR 5350 LP
Specifications
Details
Article number
150.032.101
Basic specifications
model
TR 5350 LP
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. spreading force 1st plunger
48784 lbf
max. spreading force 2nd plunger
22706 lbf
spreading stroke 1st plunger
375 mm
spreading stroke 1st plunger
14.8 in
spreading stroke 2nd plunger
350 mm
spreading stroke 2nd plunger
13.8 in
total spreading stroke
725 mm
total spreading stroke
28.5 in
retracted length
560 mm
retracted length
22 in
extended length
1285 mm
extended length
50.6 in
max. spreading force 1st plunger
217 / 22.1 (kN/t)
max. spreading force 2nd plunger
101 / 10.3 (kN/t)
General specifications
number of plungers
2
Dimensions, weight and temperature

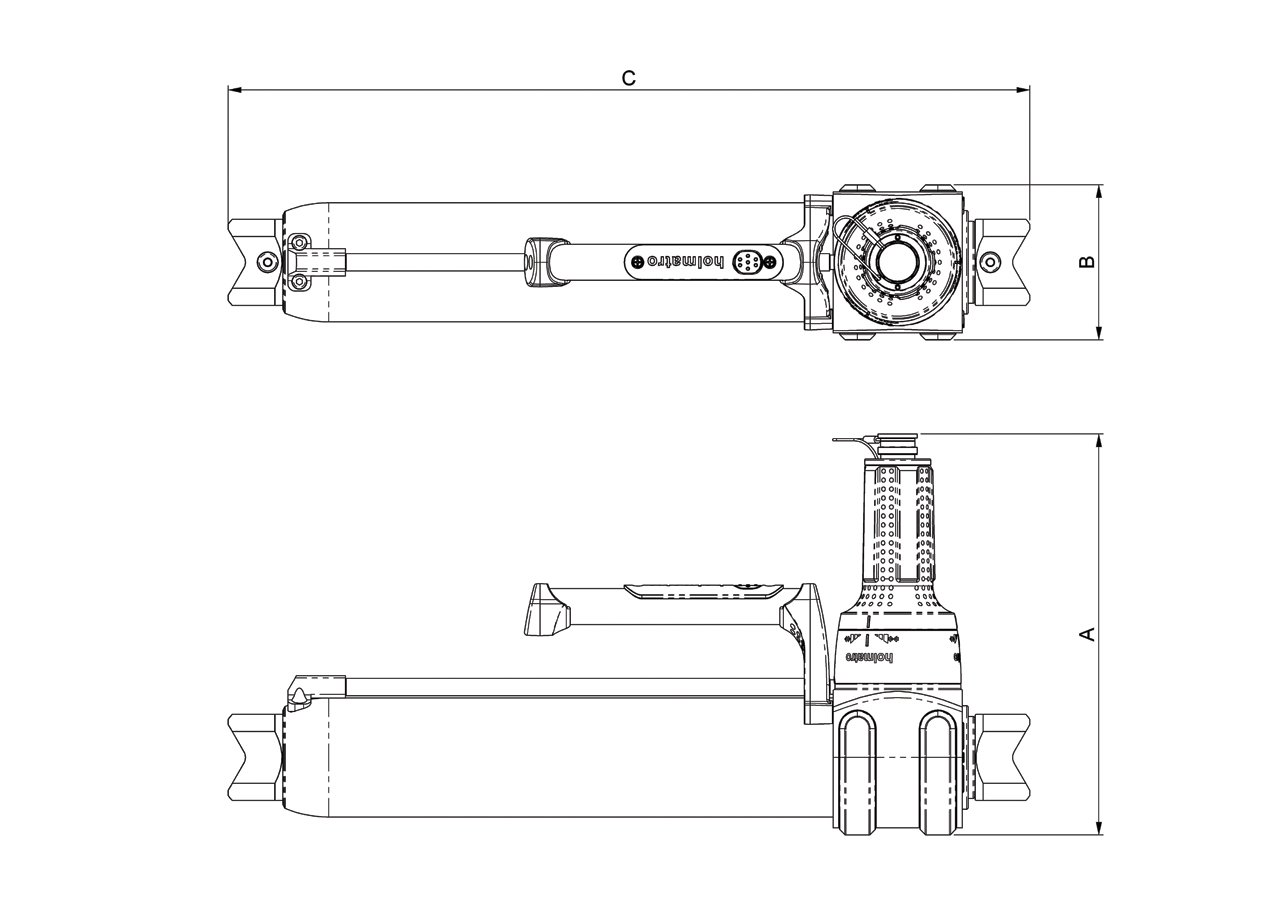

dimensions (AxBxC)
280 x 109 x 560 mm
dimensions (AxBxC)
11 x 4.3 x 22 in
weight (without hose)
14.6 kg
weight (without hose)
32.2 lb
weight, ready for use (EN13204:2025 & NFPA1960)
15.8 kg
weight, ready for use (EN13204:2025 & NFPA1960)
34.8 lb
Norms
EN 13204 classification
TR217/375-101/350-14.6
NFPA 1960 compliant
yes
EN 13204 compliant
yes
NFPA 1960, HSF
48784 lbf
NFPA 1960, HSF
217 / 22.1 (kN/t)
NFPA 1960, LSF
22706 lbf
NFPA 1960, LSF
101 / 10.3 (kN/t)
EN 13204 2025 Ed classification
TR-217/375-101/350
Features
Decreased weight
- Lighter than ever, thanks to new materials, component integration and smart design. Easier to carry and handle, reducing physical strain.
Increased performance
- More spreading force in 2nd stage, where you need it the most, and more length to expand your extrication options

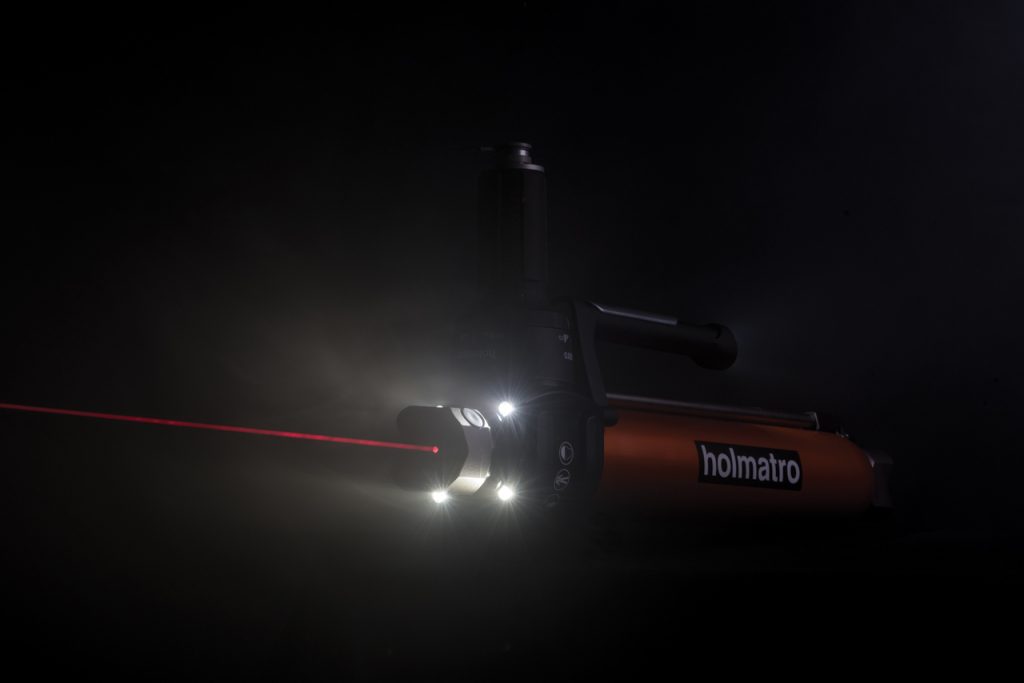

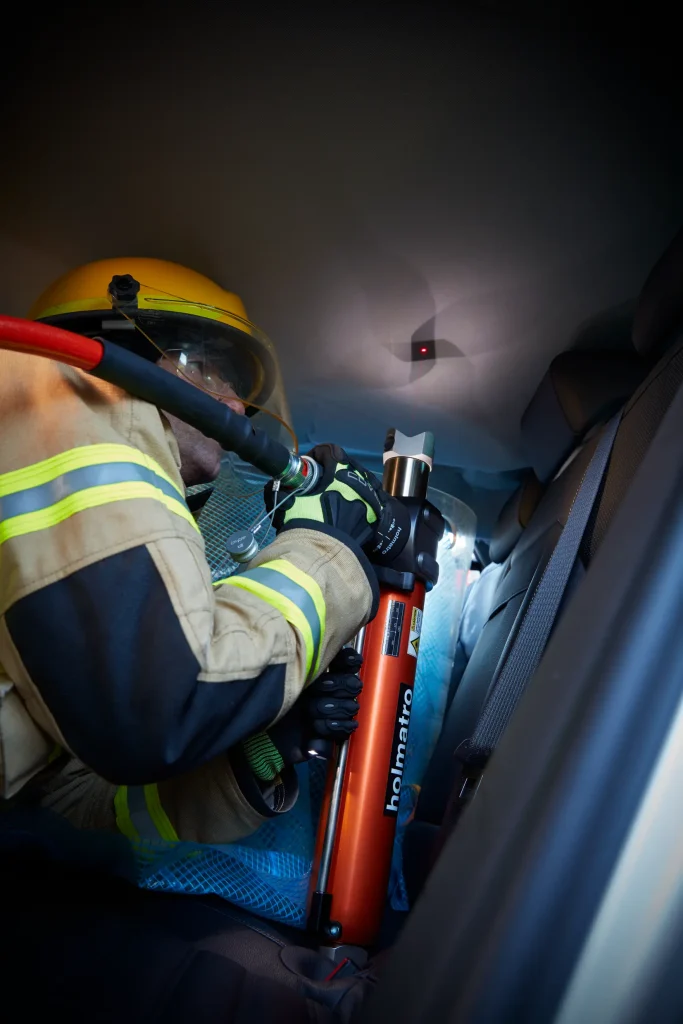

Integrated laser pointer in ram head
- Marks the exact spot where the ram will touch the object after extension
- Enables first-time-right positioning, which saves time and is safer for the patient

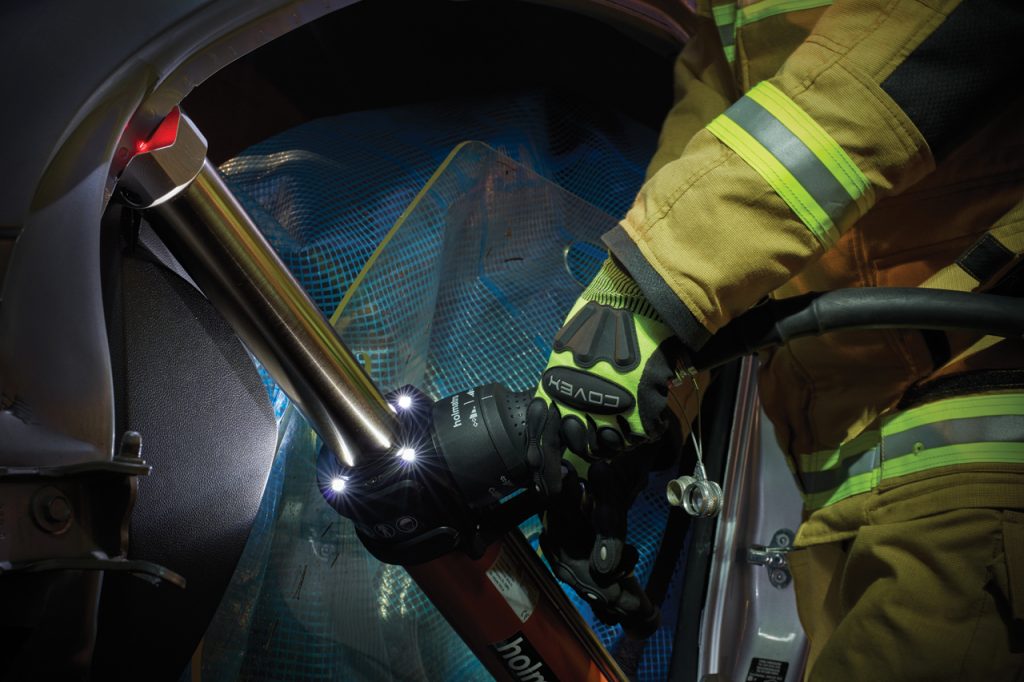

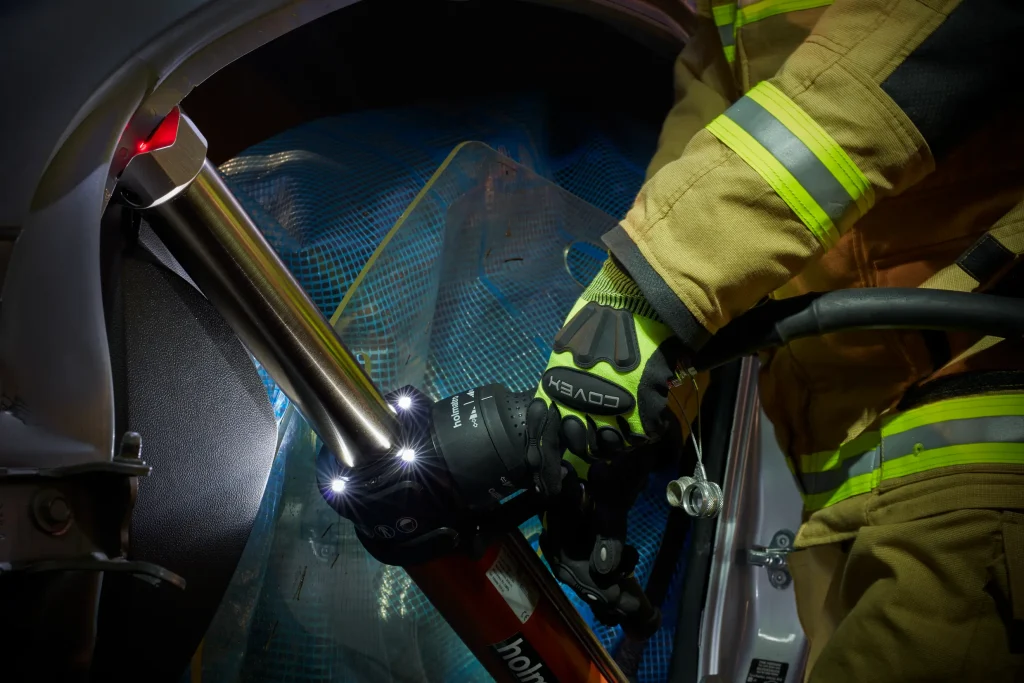

Integrated LED lighting
- Illumination of both the plunger and the base side of the ram (6 LED lights in total)
- You can start right away, both during the day and at night, without working in your own shadow

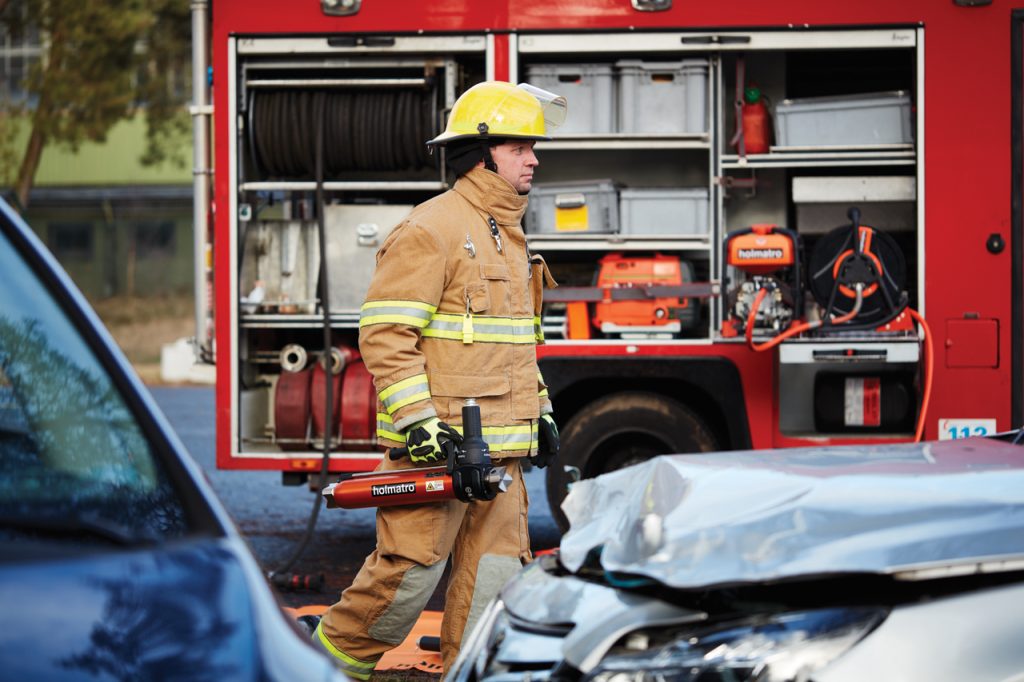

Ergonomic carrying handle
- New handle design for easy carrying: tool remains in balance
- Mounted parallel to tool to limit dimensions
Built-in Speed Valve
- When unloaded, the plunger extends quickly to the desired distance to speed up positioning of your ram
New control handle
- Improved ergonomic design, offering better grip for optimal tool control
