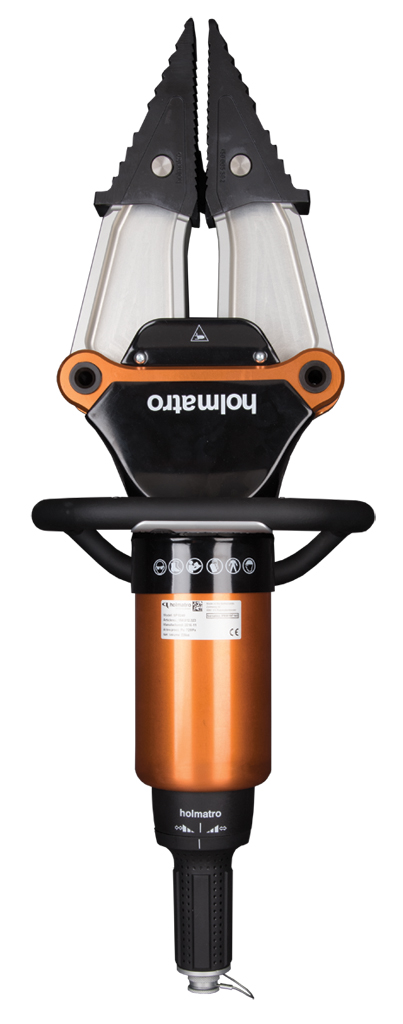

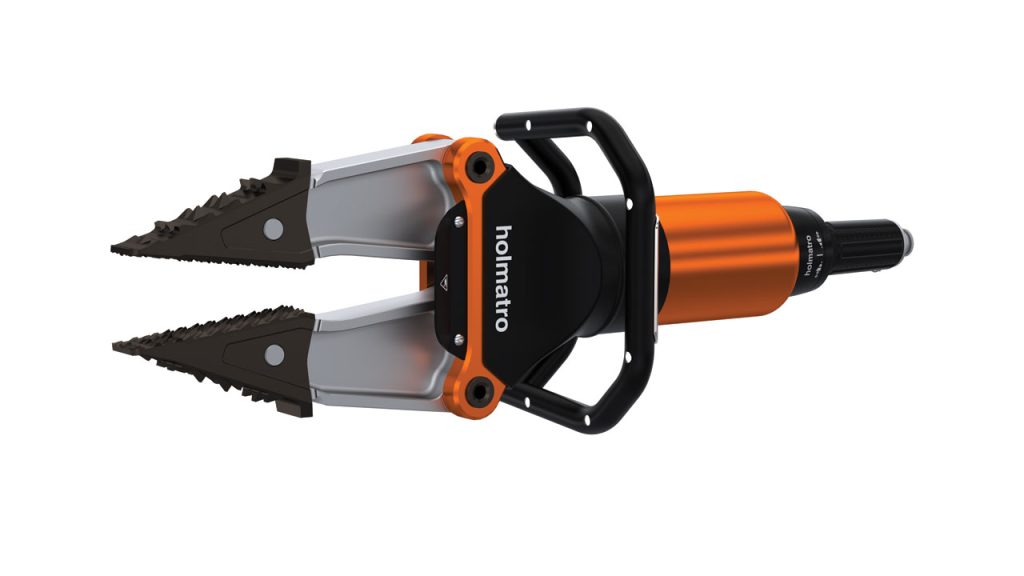

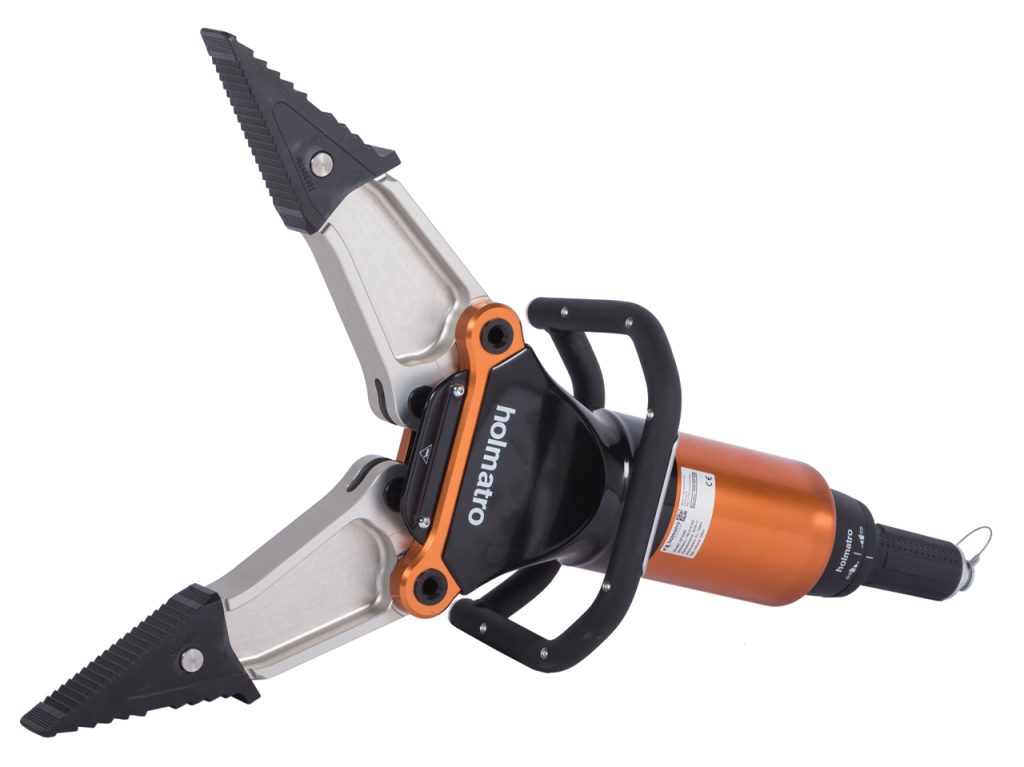

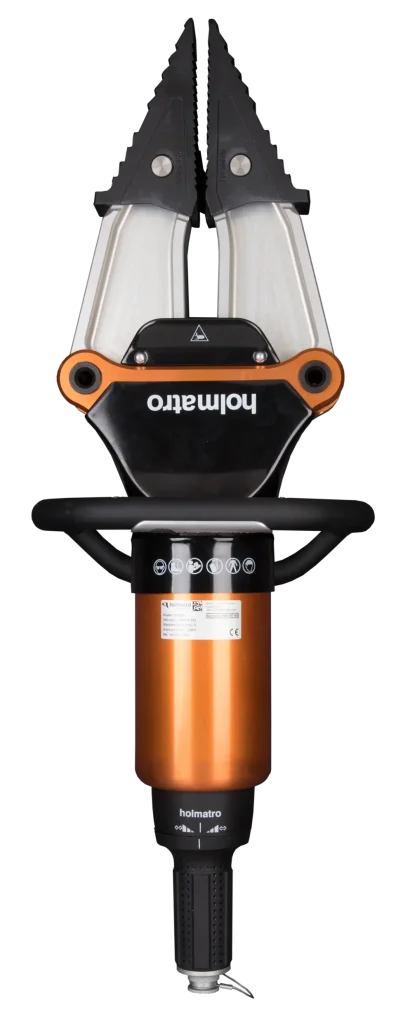

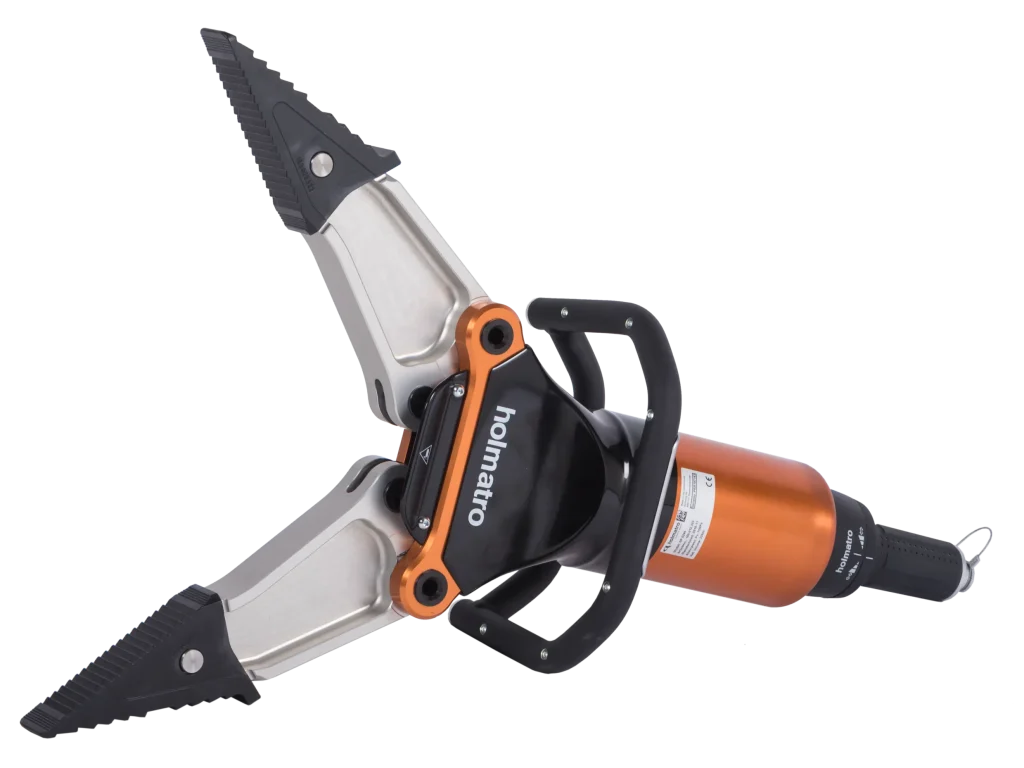

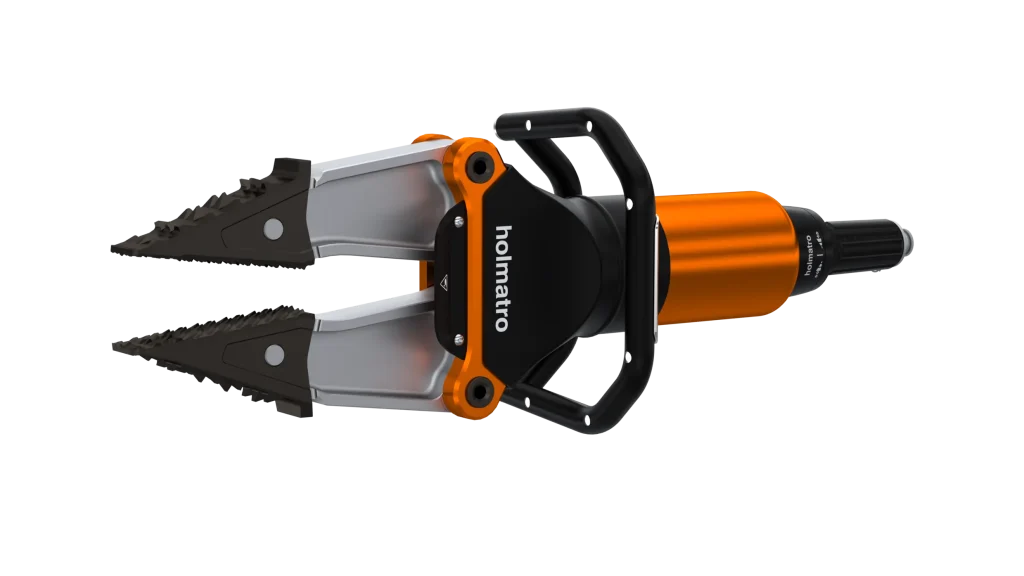

About the Spreader SP 5240
Specifications
Details
Article number
150.012.323
Basic specifications
model
SP 5240
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. spreading force
62947 lbf
theoretical calculated spreading force
875 / 89.2 (kN/t)
theoretical calculated spreading force
196708 lbf
min. spreading force (EN 13204)
9217 lbf
spreading distance
725 mm
spreading distance
28.5 in
max. squeezing force
13264 lbf
max. pulling force
10566 lbf
pulling distance
610 mm
pulling distance
24 in
max. spreading force
280 / 28.6 (kN/t)
min. spreading force (EN 13204)
41 / 4.2 (kN/t)
max. squeezing force
59 / 6 (kN/t)
max. pulling force
47 / 4.8 (kN/t)
directives
2006/42/EC
min. squeezing force (EN 13204 2025 Ed.)
5395 lbf
min. squeezing force (EN 13204 2025 Ed.)
24 / 2.4 (kN/t)
Dimensions, weight and temperature

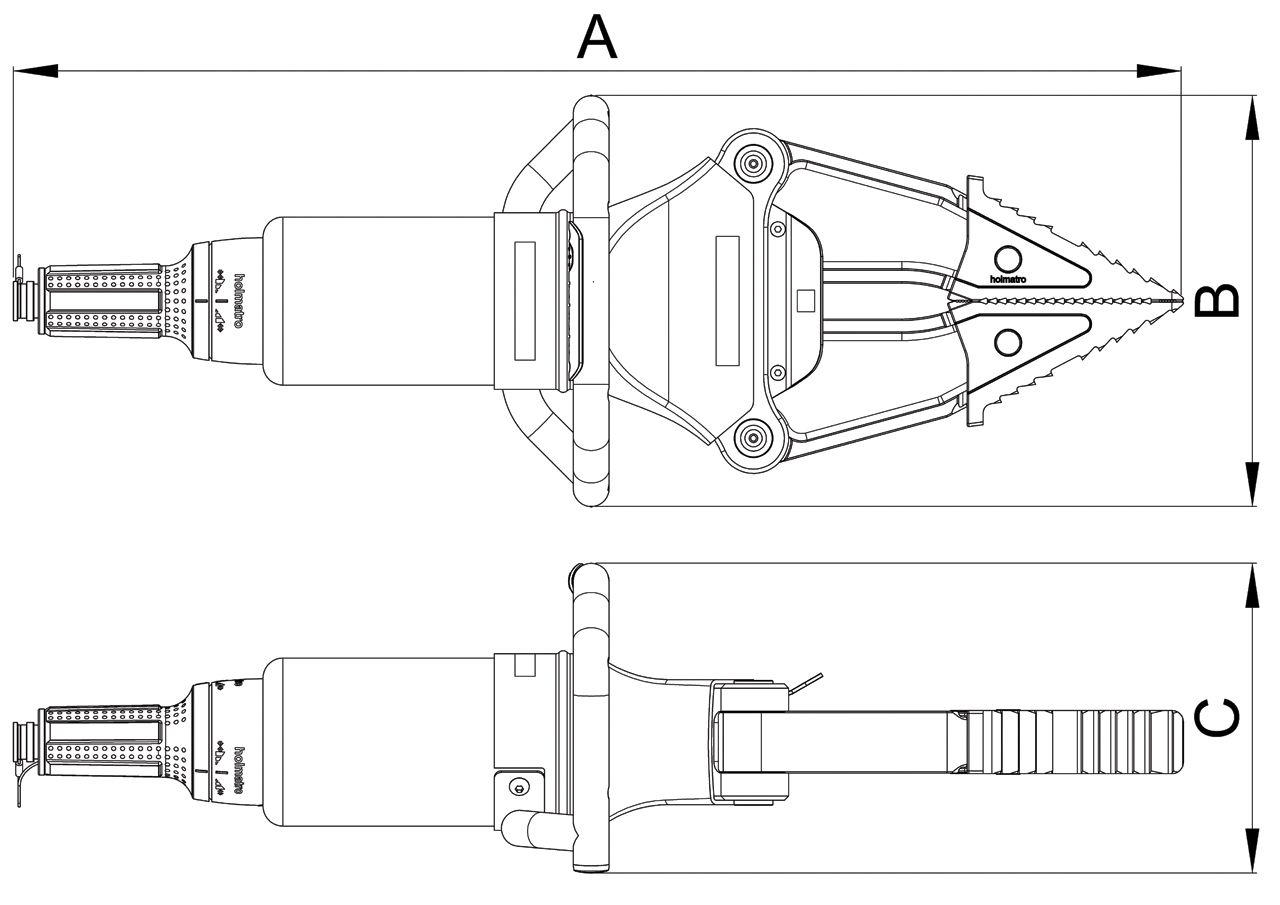

dimensions (AxBxC)
815 x 286 x 217 mm
dimensions (AxBxC)
32.1 x 11.3 x 8.5 in
weight (without hose)
14.5 kg
weight (without hose)
32 lb
weight, ready for use (EN13204:2025 & NFPA1960)
15.8 kg
weight, ready for use (EN13204:2025 & NFPA1960)
34.8 lb
Norms
EN 13204 classification
AS41/725-14.5
NFPA 1960 compliant
yes
NFPA 1960, HPF
10566 lbf
NFPA 1960, HPF
47 / 4.8 (kN/t)
NFPA 1960, HSF
15737 lbf
NFPA 1960, HSF
70 / 7.1 (kN/t)
NFPA 1960, LPF
5620 lbf
NFPA 1960, LPF
25 / 2.5 (kN/t)
NFPA 1960, LSF
8543 lbf
NFPA 1960, LSF
38 / 3.9 (kN/t)
EN 13204 2025 Ed classification
SP3-41/725
Features
Lightweight, no concessions on performance
- Easy to carry and handle
- Reducing physical burden
- Maximum performance at minimum weight
Effective profile on the spreading tips
- Perfect grip in every situation
Ergonomic carrying handle
- New design increases operator comfort in various working positions
New LED lighting in the carrying handle
- No less than six LED lights with a higher light output
- Rescuers can start their job right away, both during the day and at night, without working in their own shadow
New control handle
- Improved ergonomic design, offering better grip for optimal tool control
