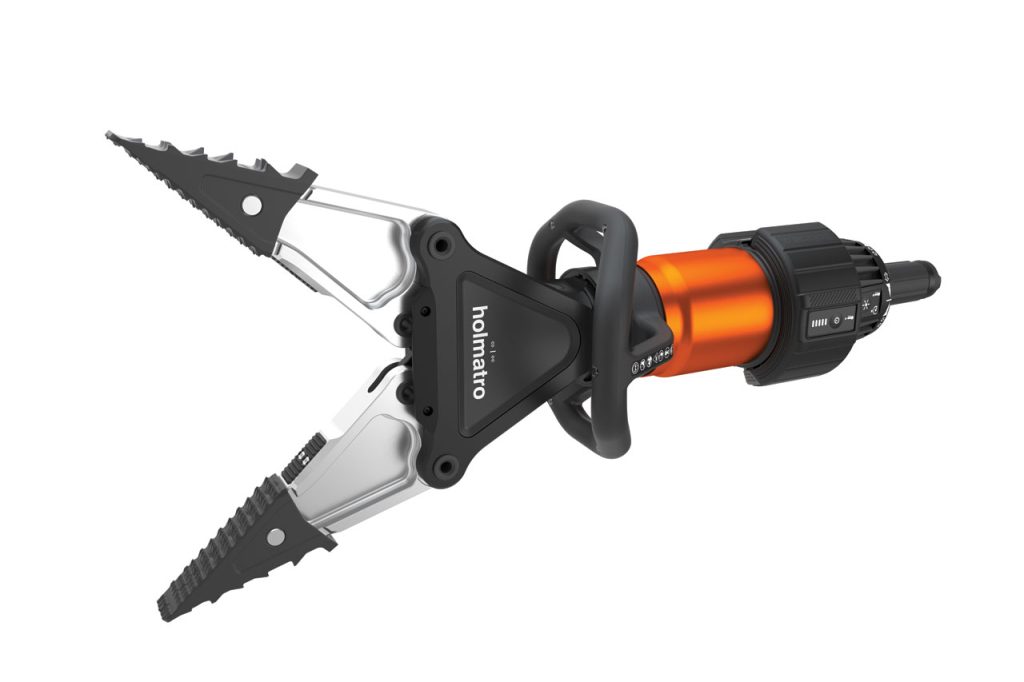

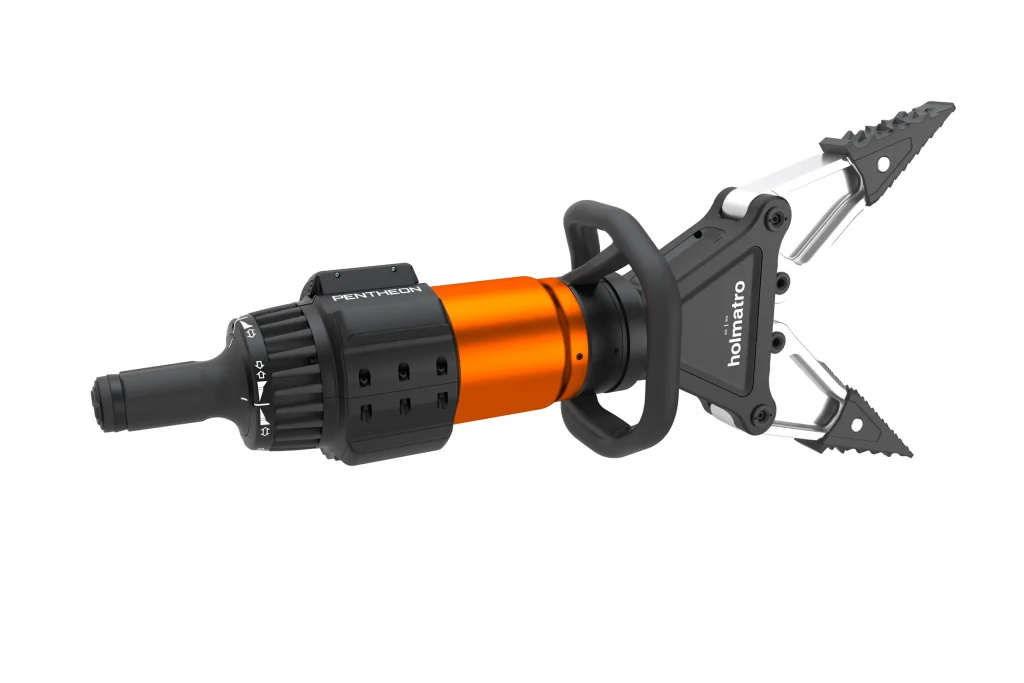

Spreader PSP50
Features & benefits
- Fastest spreader on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
- Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
About the Spreader PSP50
Specifications
Details
Article number
159.000.237
Basic specifications
model
PSP50
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
battery included
no
connectivity, mobile app
Bluetooth
Performance
max. spreading force
82280 lbf
theoretical calculated spreading force
875 / 89.2 (kN/t)
theoretical calculated spreading force
196708 lbf
min. spreading force (EN 13204)
12140 lbf
spreading distance
725 mm
spreading distance
28.5 in
max. squeezing force
30349 lbf
max. pulling force
15062 lbf
pulling distance
610 mm
pulling distance
24 in
max. spreading force
366 / 37.3 (kN/t)
min. spreading force (EN 13204)
54 / 5.5 (kN/t)
max. squeezing force
135 / 13.8 (kN/t)
max. pulling force
67 / 6.8 (kN/t)
protection rate
IP57
directives
2006/42/EC, 2014/30/EU, 2014/53/EU
min. squeezing force (EN 13204 2025 Ed.)
6744 lbf
min. squeezing force (EN 13204 2025 Ed.)
30 / 3.1 (kN/t)
Dimensions, weight and temperature
weight (excl. battery)
19.4 kg
weight (excl. battery)
42.8 lb

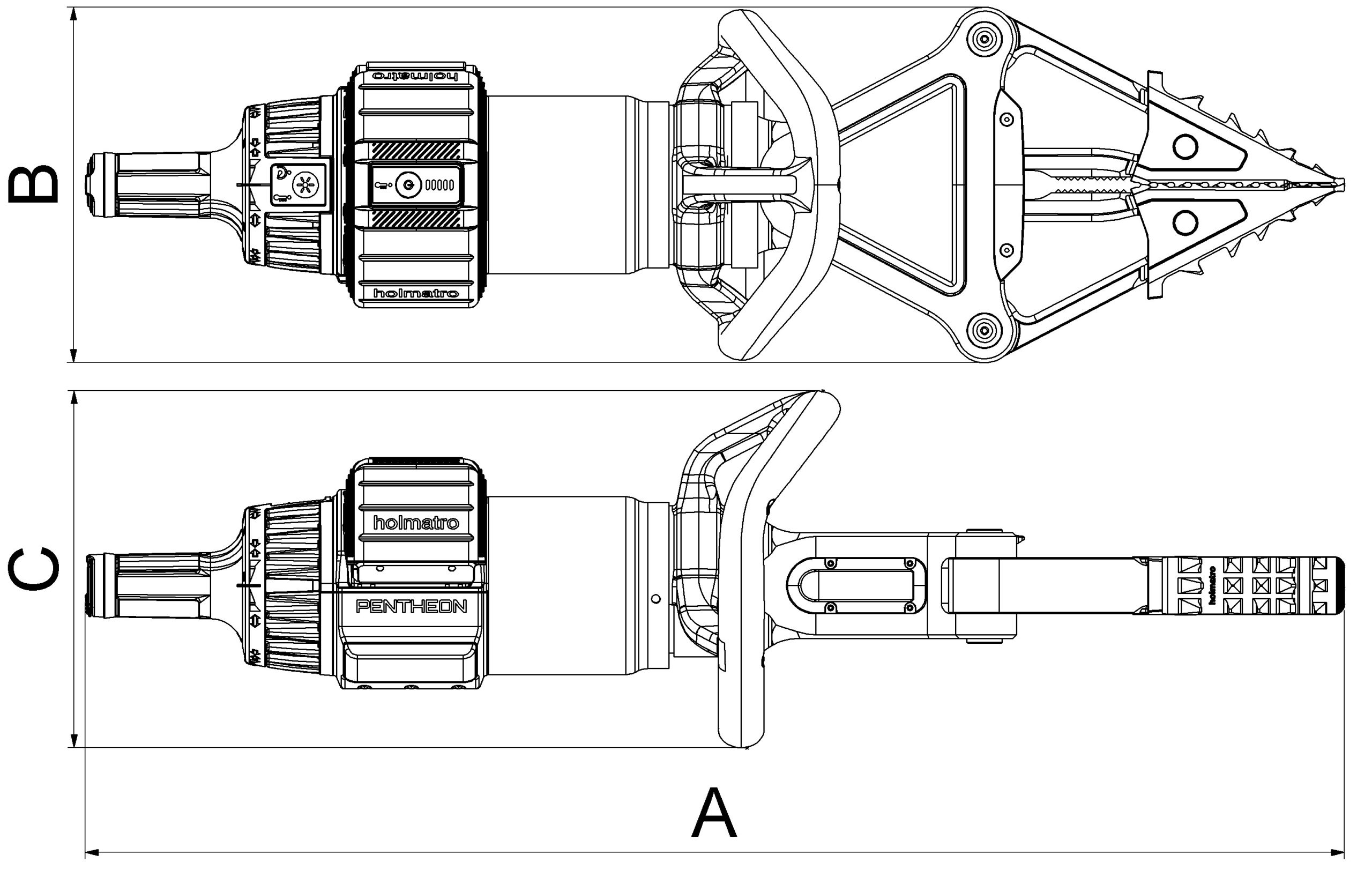

dimensions (AxBxC)
964 x 272 x 272 mm
dimensions (AxBxC)
38 x 10.7 x 10.7 in
weight, ready for use (incl. battery)
21 kg
weight, ready for use (incl. battery)
46.3 lb
Norms
EN 13204 classification
AS54/725-21
NFPA 1960 compliant
yes
EN 13204 compliant
yes
NFPA 1960, HPF
15062 lbf
NFPA 1960, HPF
67 / 6.8 (kN/t)
NFPA 1936, HSF
20907 lbf
NFPA 1936, HSF
93 / 9.5 (kN/t)
NFPA 1960, HSF
20907 lbf
NFPA 1960, HSF
93 / 9.5 (kN/t)
NFPA 1936, LPF
7419 lbf
NFPA 1936, LPF
33 / 3.4 (kN/t)
NFPA 1960, LPF
7419 lbf
NFPA 1960, LPF
33 / 3.4 (kN/t)
NFPA 1936, LSF
11240 lbf
NFPA 1936, LSF
50 / 5.1 (kN/t)
NFPA 1960, LSF
11240 lbf
NFPA 1960, LSF
50 / 5.1 (kN/t)
EN 13204 2025 Ed classification
F-SP3-54/725
Features
Unparalleled speed for faster rescue operations
- Fastest spreader on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
- Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
Ultimate speed control for more controlled tool handling
- Two-speed inline control handle – Switch between high-speed and low-speed and keep perfect control at all times
Guaranteed maximum power during a tool’s entire lifespan
- Electronic motor control and pressure monitoring – Constant lifetime performance for every Pentheon tool
Battery management made easy

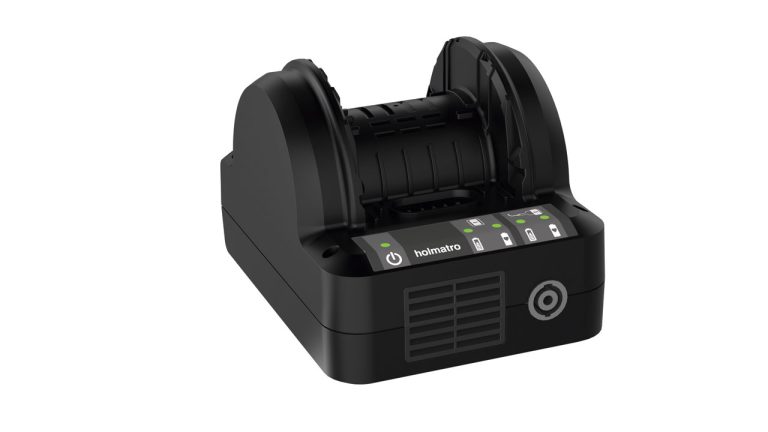

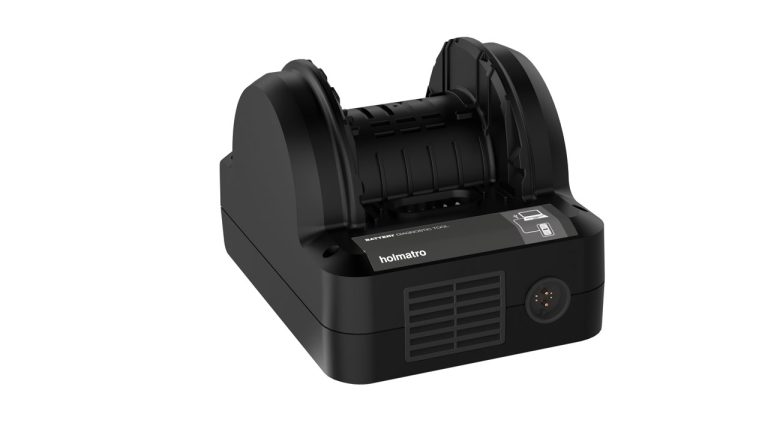

- Charge batteries directly on the tools with the On-Tool Charging System
- Priority charging for on-tool batteries over batteries on a separate charger

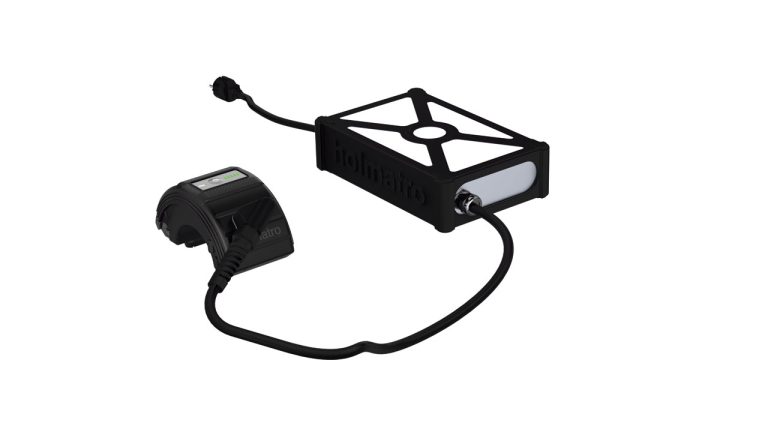

- Charge up to six batteries automatically – Connect up to three chargers to one single outlet

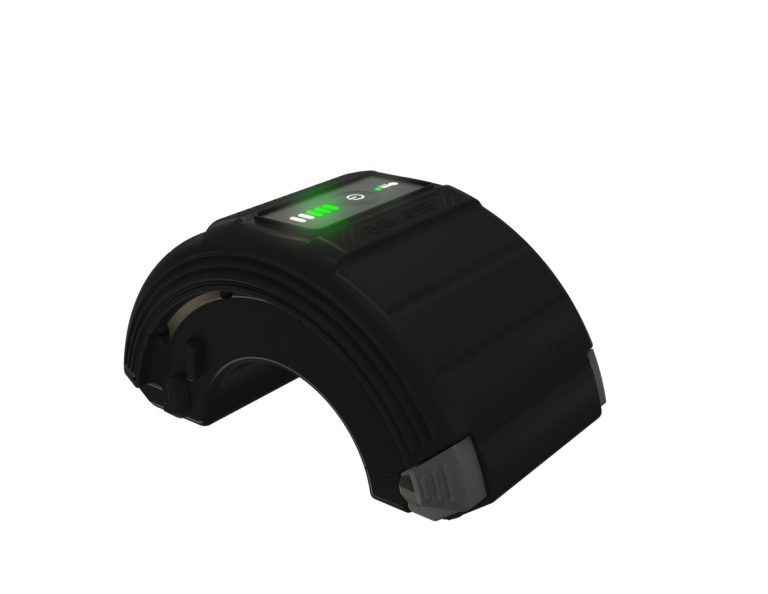

- Holmatro battery – Power Pentheon tools as well as OmniLock struts (patented) and other upcoming Holmatro products
Superb ergonomics for effortless handling

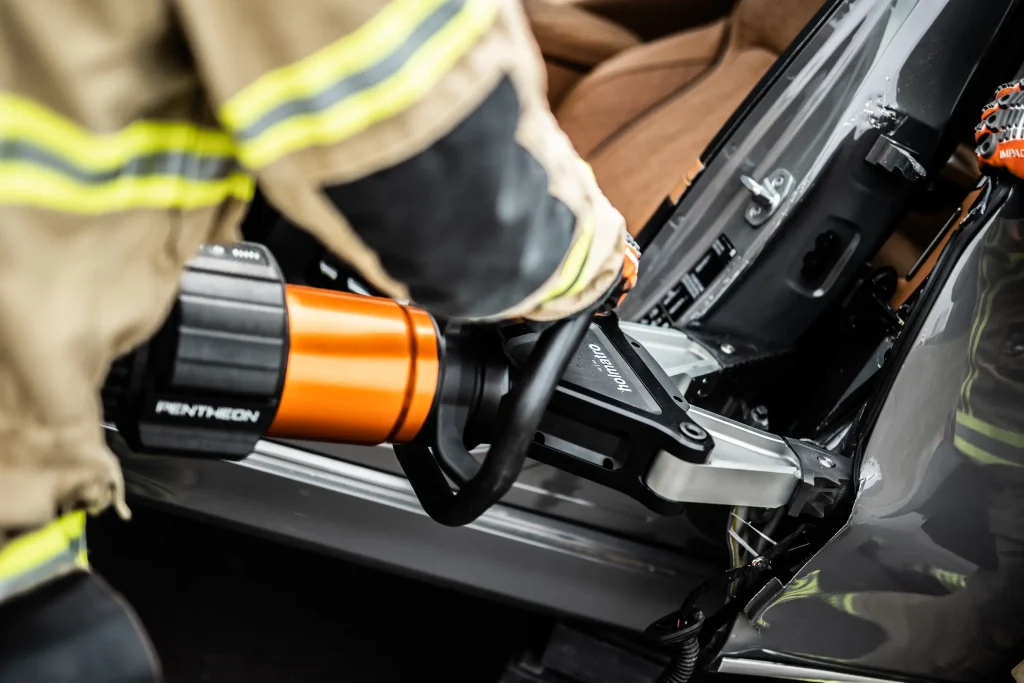

- Easy tool operation on all sides of a vehicle – Inline control handle with 360° access
- Hold every tool in any position – 360° carrying handle made of tough, damage-proof material
Continue your mission under all conditions
- Flawless performance under water, at high and low outdoor temperatures and in rain and snow
- Easier communication during rescue operations – A new and improved drive system ensures tool operation at a lower sound level
- Automatic LED lights in the carrying handle, powered by the main battery. The lights can also be operated manually
Realtime tool insights to adapt and change tactics

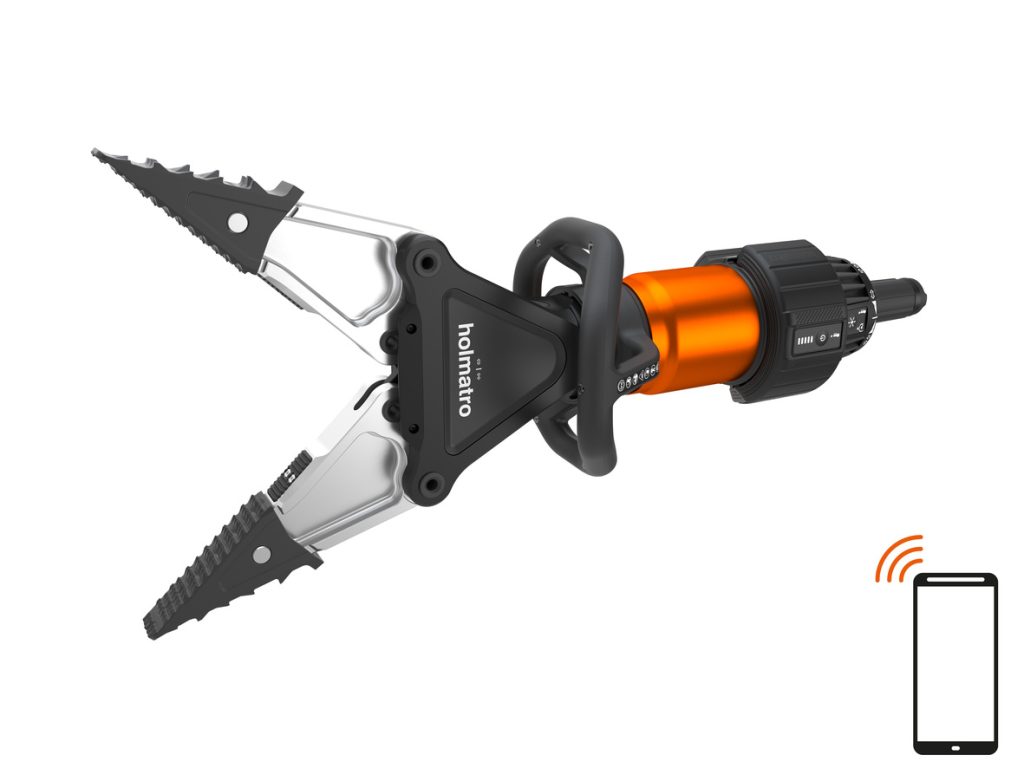

- Connect every tool to your tablet or phone with Bluetooth®
- Easy to use and intuitive MyHolmatro app
- Real-time diagnostics during every operation – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode
Automatically keep your tools in perfect condition
- Quickly and easily perform an automated Pentheon Self Check with the MyHolmatro app – Automatically check the drive system, speed and pressure, battery firmware and battery state of health
Effortless tool maintenance
- Premium tool service thanks to the Holmatro Inspection Procedures (HIP) – An extensive software program for Authorized Holmatro (Dealer) Service Technicians
Phenomenal grip over the full spreading range

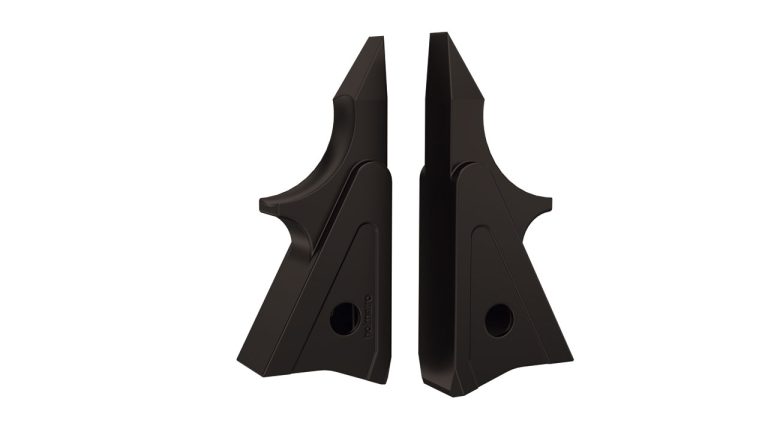

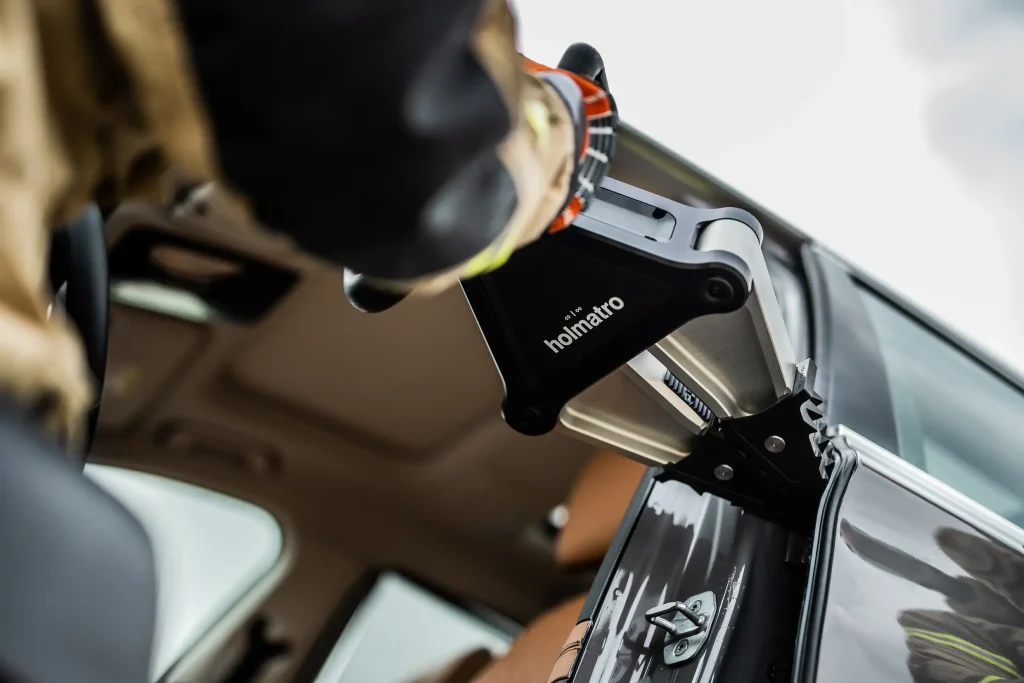

- Extreme Grip Spreader Tips with teeth on the inside and outside offer immediate grip and bite sharply into the material
