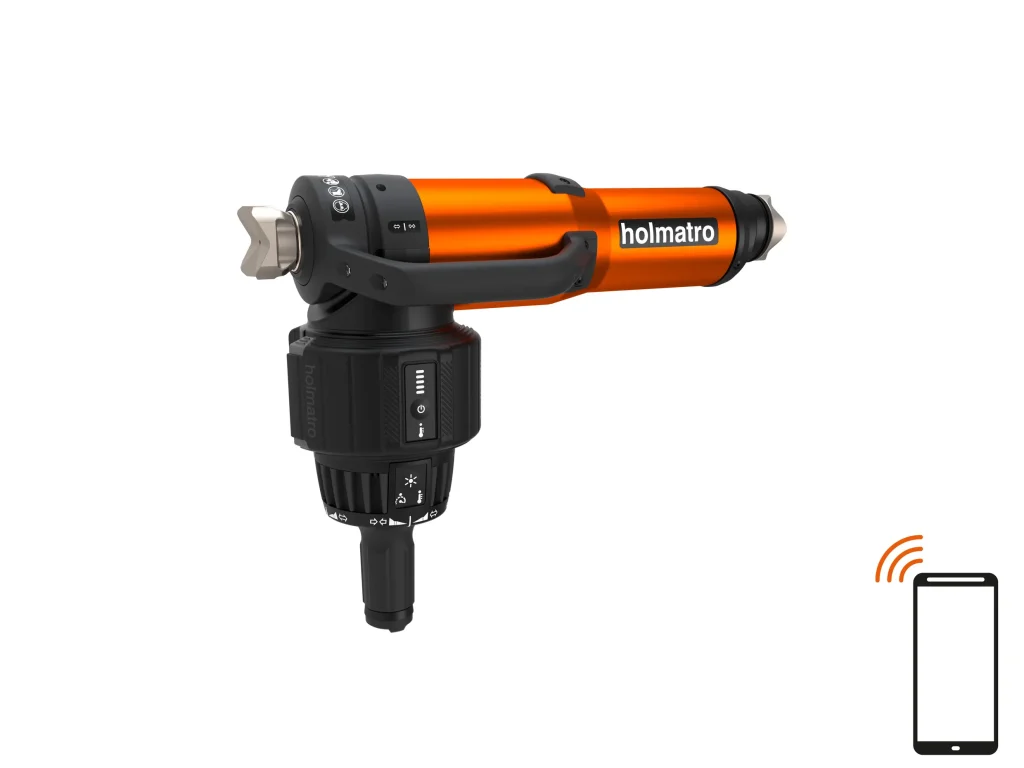

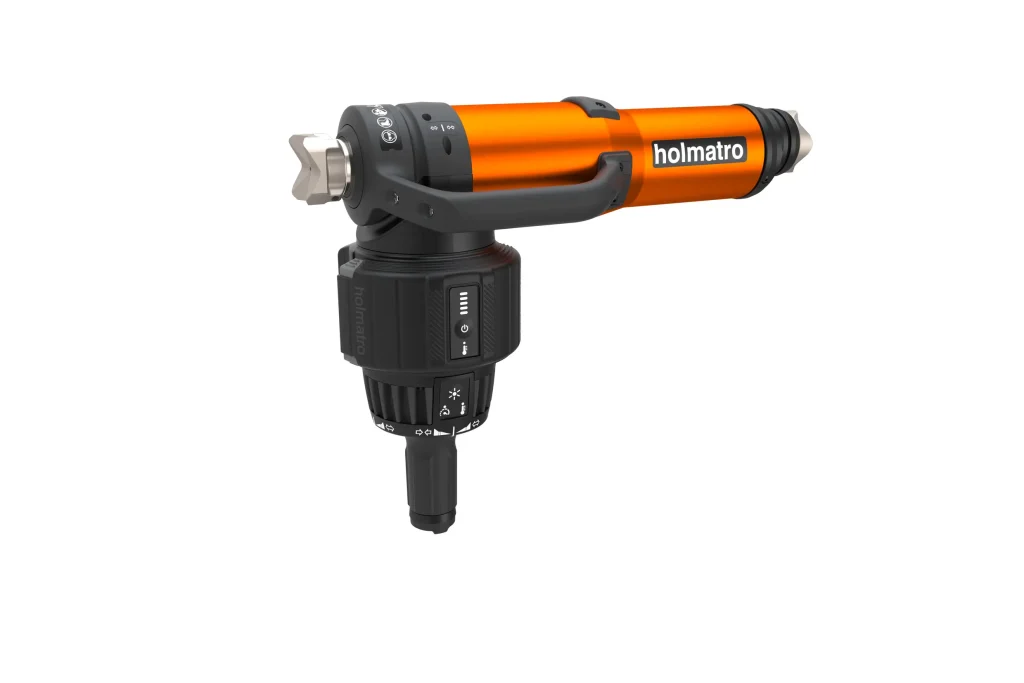

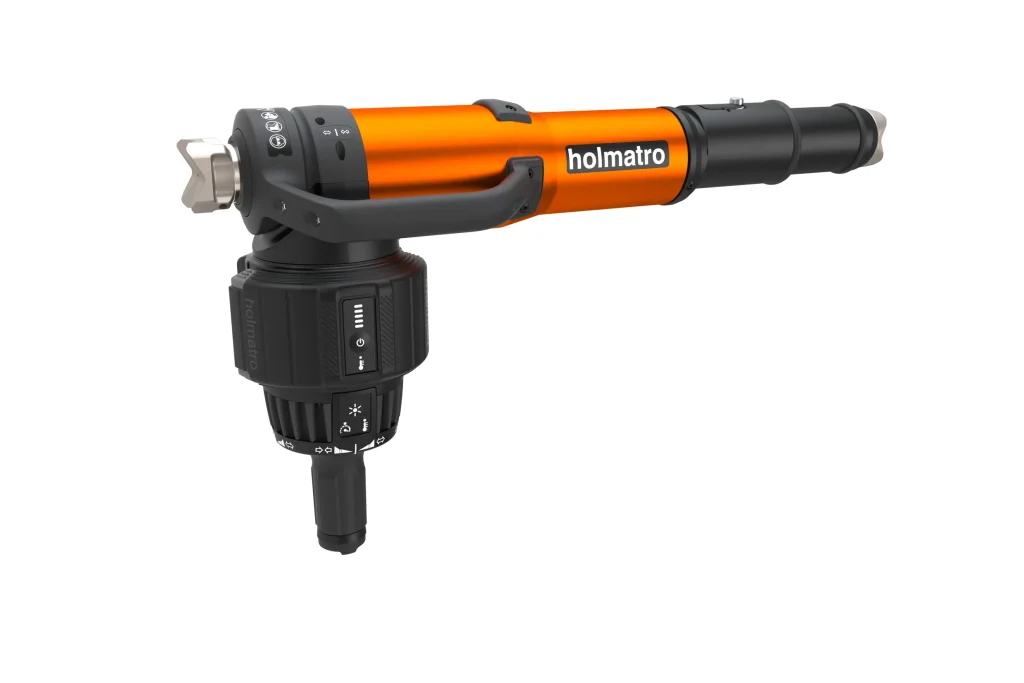

Ram PRA50
Features & benefits
- Fastest ram on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
- Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
About the Ram PRA50
Specifications
Details
Article number
159.000.240
Basic specifications
model
PRA50
max. working pressure
7832 psi
max. working pressure
540 / 54 (bar/Mpa)
battery included
no
connectivity, mobile app
Bluetooth
Performance
spreading force over full stroke
30574 lbf
spreading stroke
407 mm
spreading stroke
16 in
retracted length
578 mm
retracted length
22.8 in
extended length
985 mm
extended length
38.8 in
spreading force over full stroke
136 / 13.9 (kN/t)
protection rate
IP57
directives
2006/42/EC, 2014/30/EU, 2014/53/EU
General specifications
number of plungers
1
Dimensions, weight and temperature
weight (excl. battery)
16.8 kg
weight (excl. battery)
37 lb

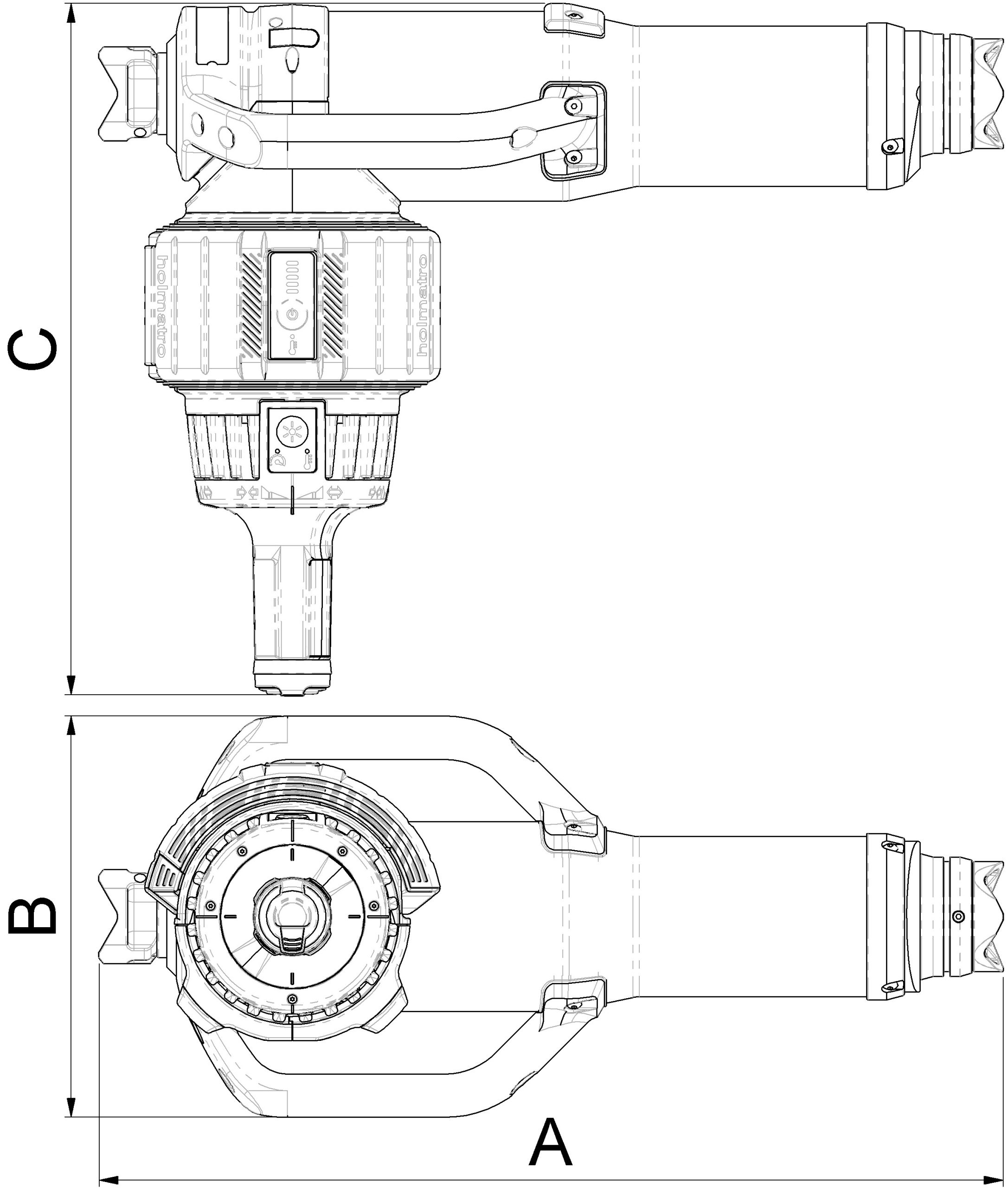

dimensions (AxBxC)
578 x 256 x 443 mm
dimensions (AxBxC)
22.8 x 10.1 x 17.4 in
weight, ready for use (incl. battery)
18.4 kg
weight, ready for use (incl. battery)
40.6 lb
Norms
EN 13204 classification
R136/407-18.3
NFPA 1960 compliant
yes
EN 13204 compliant
yes
NFPA 1960, HSF
30574 lbf
NFPA 1960, HSF
136 / 13.9 (kN/t)
NFPA 1960, LSF
30574 lbf
NFPA 1960, LSF
136 / 13.9 (kN/t)
EN 13204 2025 Ed classification
F-RA-136/407
Features
Unparalleled speed for faster rescue operations
- Fastest ram on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
- Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
Ultimate speed control for more controlled tool handling
- Two-speed inline control handle – Switch between high-speed and low-speed and keep perfect control at all times
Guaranteed maximum power during a tool’s entire lifespan
- Electronic motor control and pressure monitoring – Constant lifetime performance for every Pentheon tool
Battery management made easy
- Charge batteries directly on the tools with the On-Tool Charging System
- Priority charging for on-tool batteries over batteries on a separate charger
- Charge up to six batteries automatically – Connect up to three chargers to one single outlet
- Holmatro battery – Power Pentheon tools as well as OmniLock struts (patented) and other upcoming Holmatro products
Superb ergonomics for effortless handling
- Easy tool operation on all sides of a vehicle – Inline control handle with 360° access
- Hold every tool in any position – 360° carrying handle made of tough, damage-proof material
Continue your mission under all conditions
- Flawless performance under water, at high and low outdoor temperatures and in rain and snow
- Easier communication during rescue operations – A new and improved drive system ensures tool operation at a lower sound level
- Automatic LED lights in the carrying handle, powered by the main battery. The lights can also be operated manually
Realtime tool insights to adapt and change tactics
- Connect every tool to your tablet or phone with Bluetooth®
- Easy to use and intuitive MyHolmatro app
- Real-time diagnostics during every operation – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode
Automatically keep your tools in perfect condition
- Quickly and easily perform an automated Pentheon Self Check with the MyHolmatro app – Automatically check the drive system, speed and pressure, battery firmware and battery state of health
Effortless tool maintenance
- Premium tool service thanks to the Holmatro Inspection Procedures (HIP) – An extensive software program for Authorized Holmatro (Dealer) Service Technicians
Cross every distance with ease

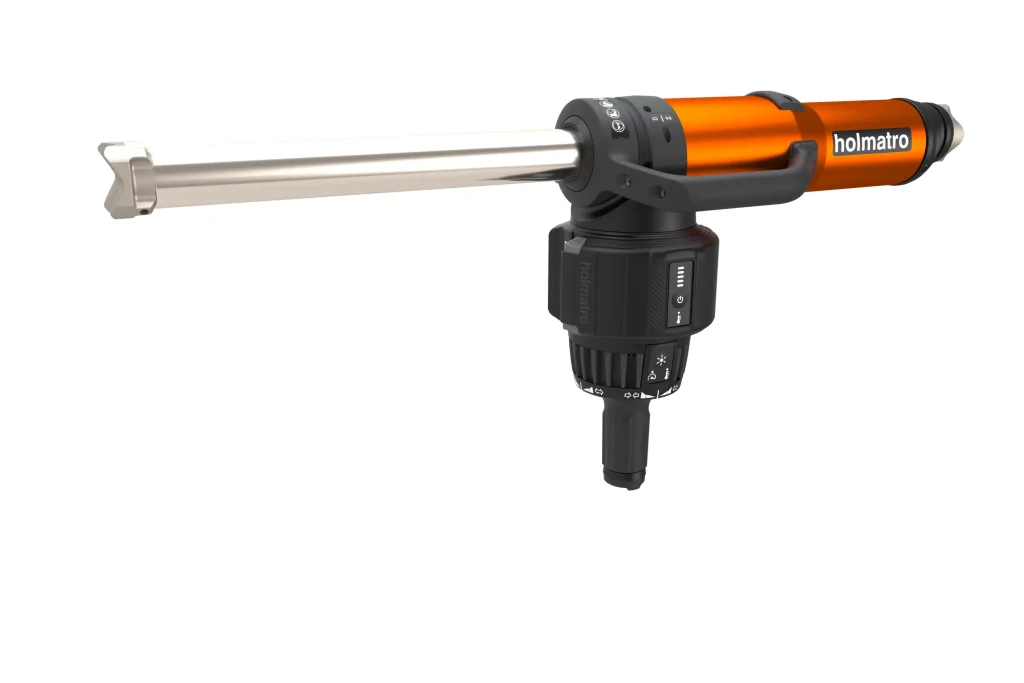

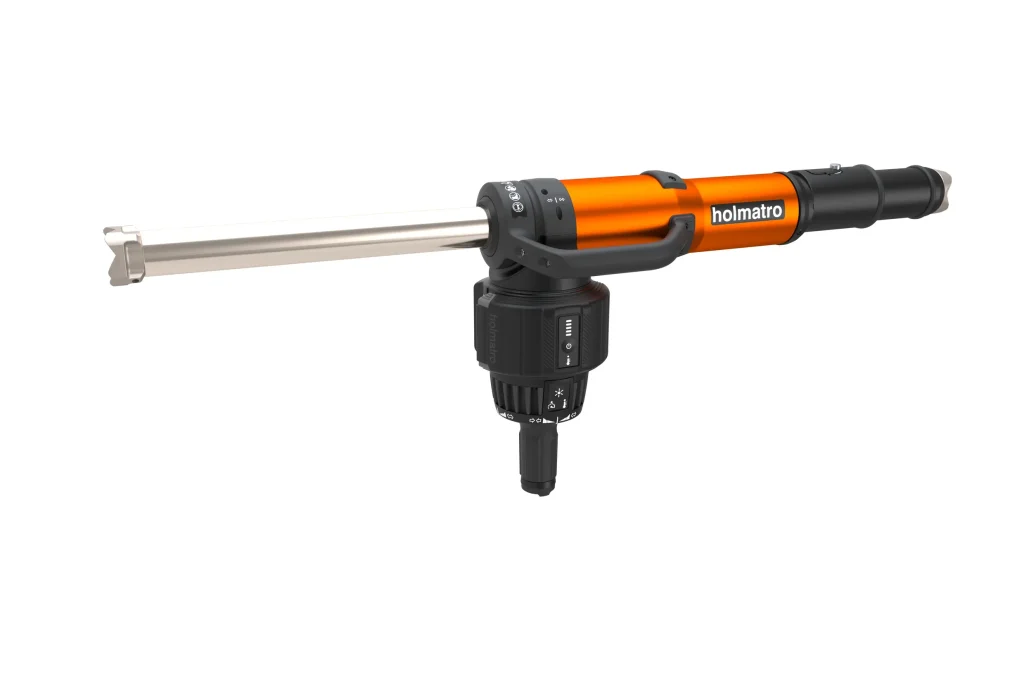

- Bridge larger gaps by adding an extension pipe
- Safely use the ram at all lengths with the patented Smart Ram Extension – The ram automatically adapts its force to the new maximum length when using an optional extension pipe
- Suitable for multiple applications
Save valuable time with first-time-right positioning
- Integrated laser pointer in the ram head for first-time-right positioning – Saves time and is safer for patients
