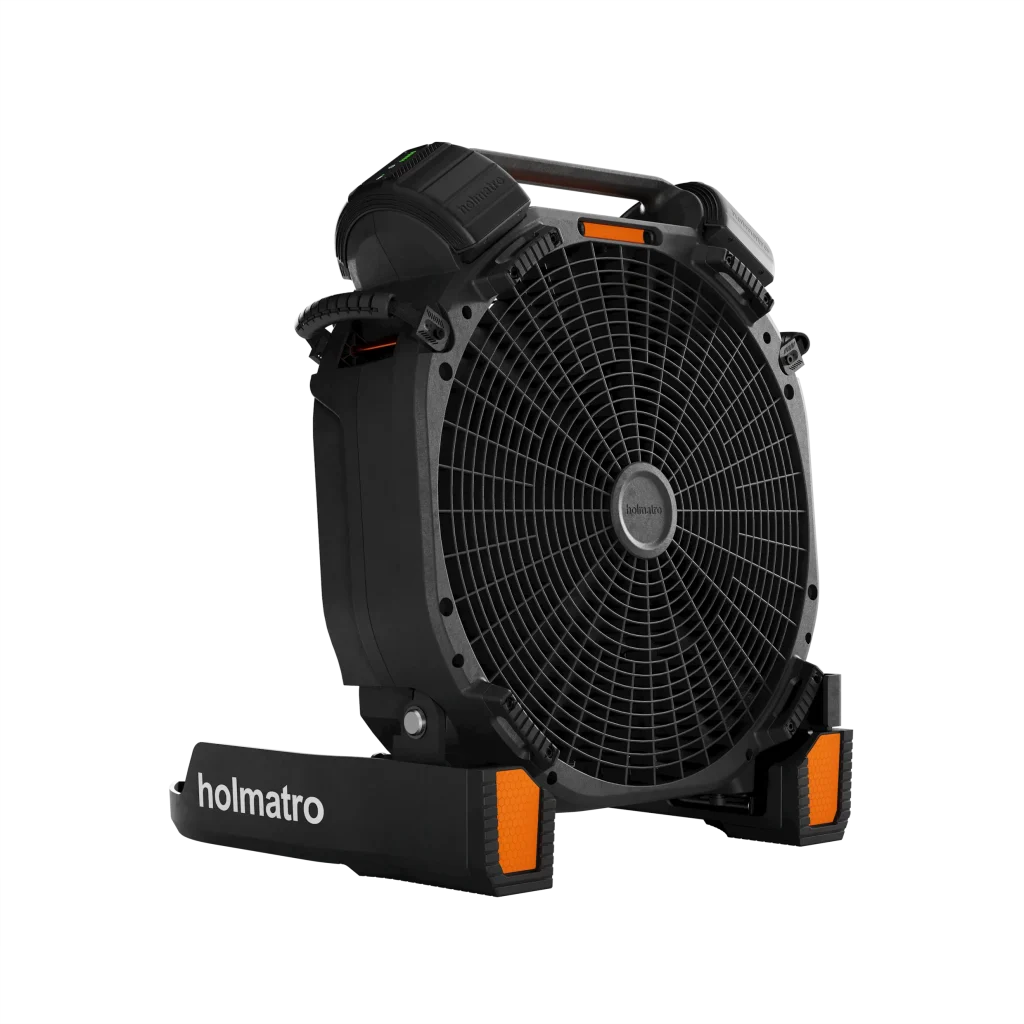

Positive Pressure Ventilator PPV20
Features & benefits
- High-flow airstream – Moves high volumes of air to clear smoke, heat, and toxic gases rapidly
- High-pressure airstream – Forces fresh air deep into structures and creates maximum overpressure, keeping safe zones clear
About the Positive Pressure Ventilator PPV20
Specifications
Details
Article number
151.004.614
Basic specifications
model
PPV20
battery included
no
connectivity, mobile app
Bluetooth
Performance
protection rate
IP67
airflow (through door)
21200 m³/h
airflow (through door)
12478 cfm
tilt angle range
-10 +90 °
tilt angle (low)
-10 °
tilt angle (high)
90 °
open airflow
41600 m³/h
open airflow
24485 cfm
runtime @ max. airflow
32 min.
Dimensions, weight and temperature
weight, ready for use
23.5 kg
weight, ready for use
51.8 lb
weight (excl. battery)
20.3 kg
weight (excl. battery)
44.8 lb
dimensions (AxBxC)
650 x 580 x 245 mm
dimensions (AxBxC)
25.6 x 22.8 x 9.6 in
propeller diameter
508 mm
propeller diameter
20 in

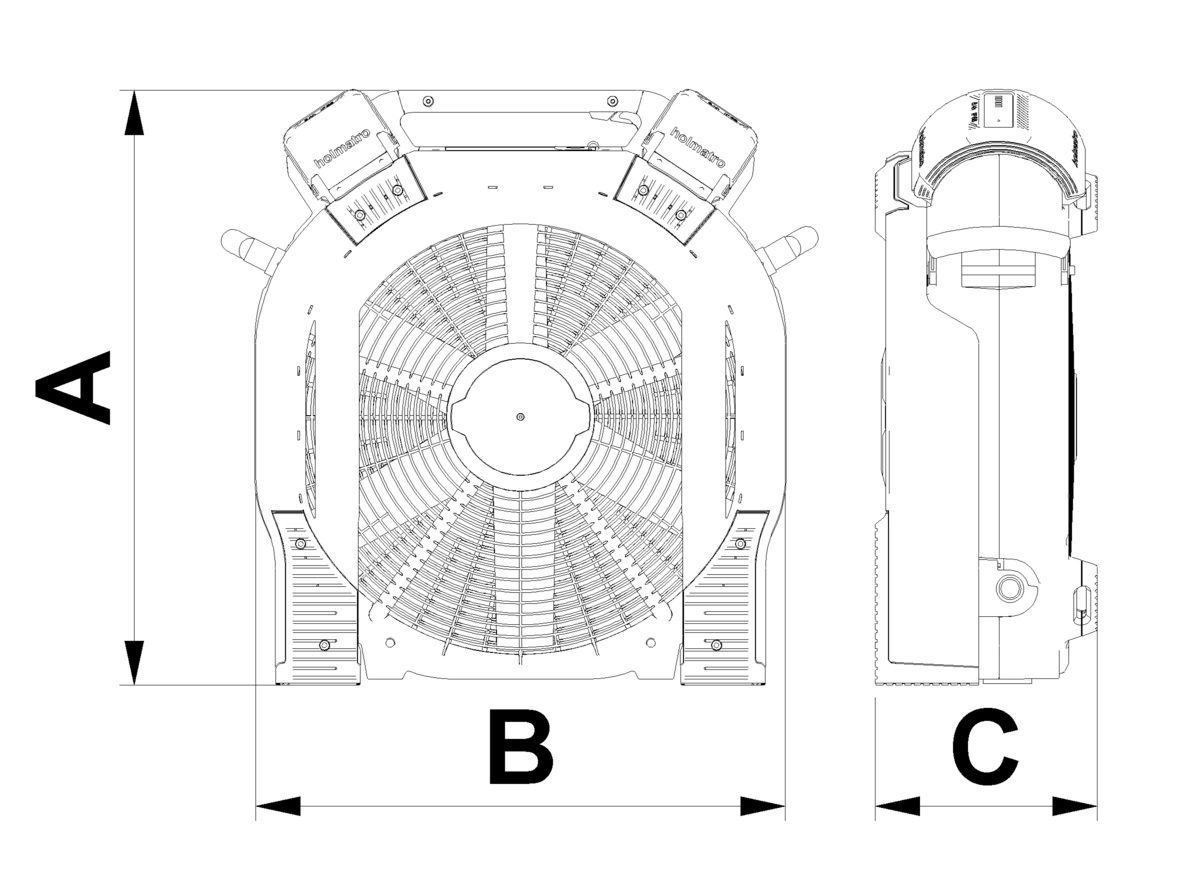

Technical Drawing
PPV dimensions
Features
Ready for any ventilation challenge
- High-flow airstream – Moves high volumes of air to clear smoke, heat, and toxic gases rapidly
- High-pressure airstream – Forces fresh air deep into structures and creates maximum overpressure, keeping safe zones clear
- Constant airflow output – No dip as the battery charge drops

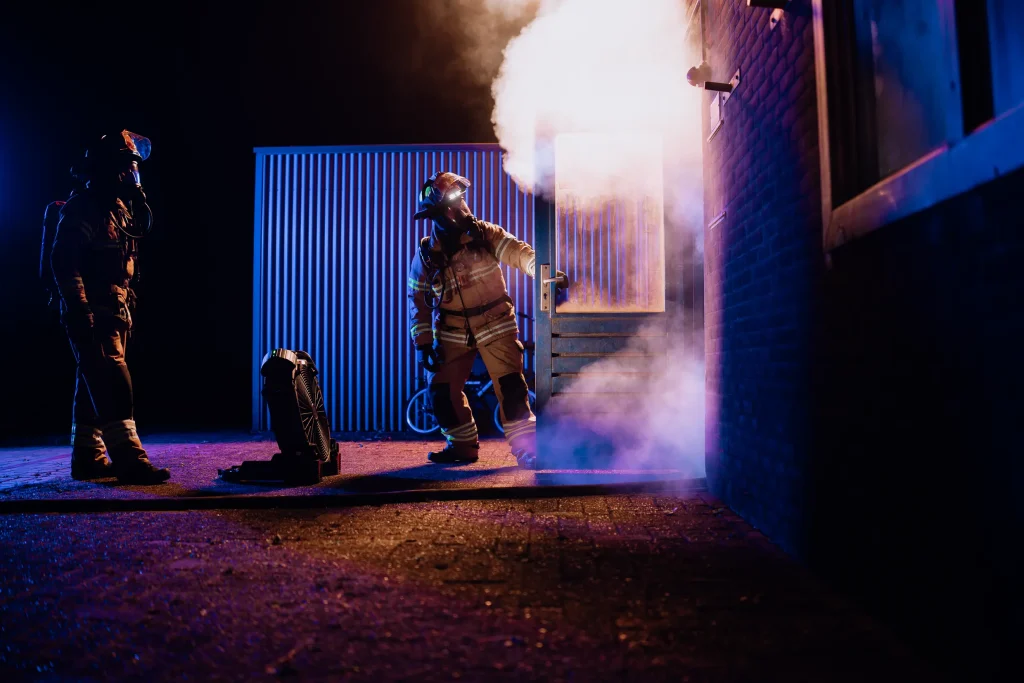

- Built for every situation – Ready to perform in multiple ventilation tactics Ideal for smoke/gas removal, PPV defense, and PPV attack
Effortless handling
- Take the PPV anywhere, fast – Lightweight, compact, and easy to carry
- Ready in one move – Deploy or reposition with one hand
- Airflow control at your fingertips – Use the five preset levels on the PPV or control the flow steplessly in the MyHolmatro app
Battery management made easy
- One battery platform – Holmatro batteries power the PPV, Battery Pump, Pentheon tools, OmniLock struts and future Holmatro innovations
- On-tool charging – Stay powered by charging batteries directly on the PPV
- Priority charging – Batteries on the tool are always charged first, before those on a separate charger
- Connect up to three chargers to a single outlet – Automatically charge up to nine batteries
- Smart battery software ensures optimal performance and battery life
Always continue your mission
- Extend runtime by easily hot-swapping Holmatro batteries
- Ready for any condition – Flawless operation in extreme heat, cold, rain, or snow
- Easier communication and focus on the job – Lowest operational sound levels in its class

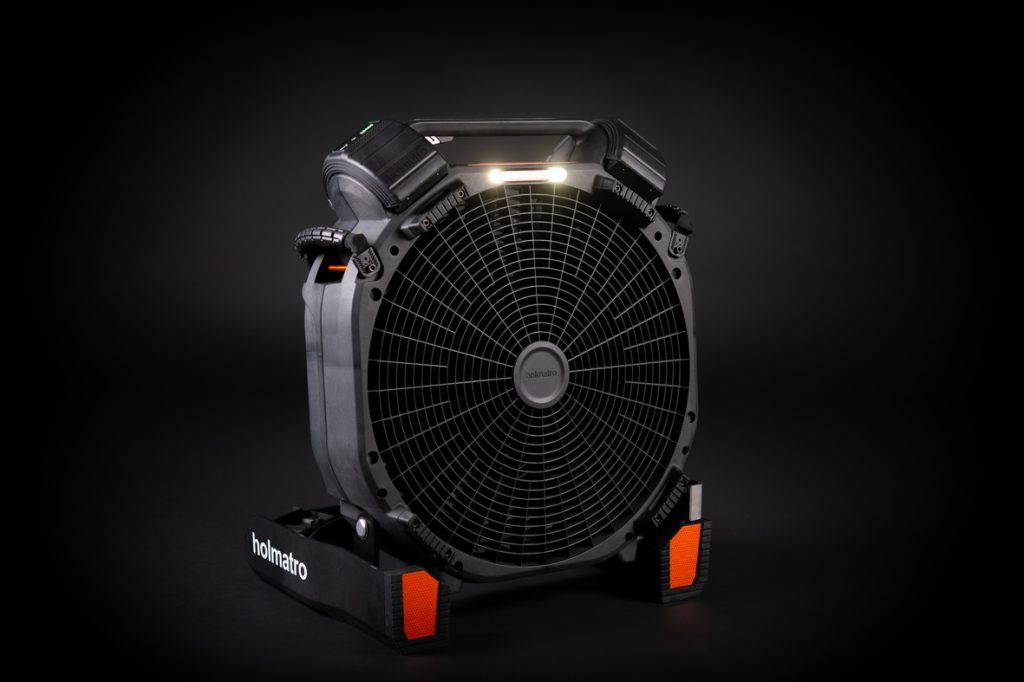

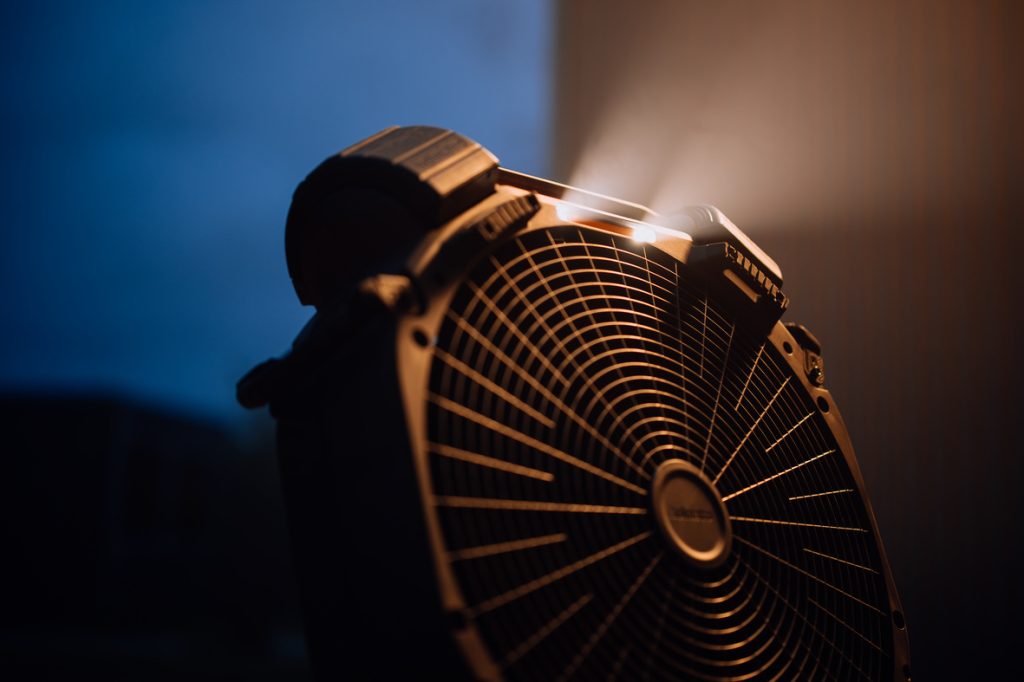

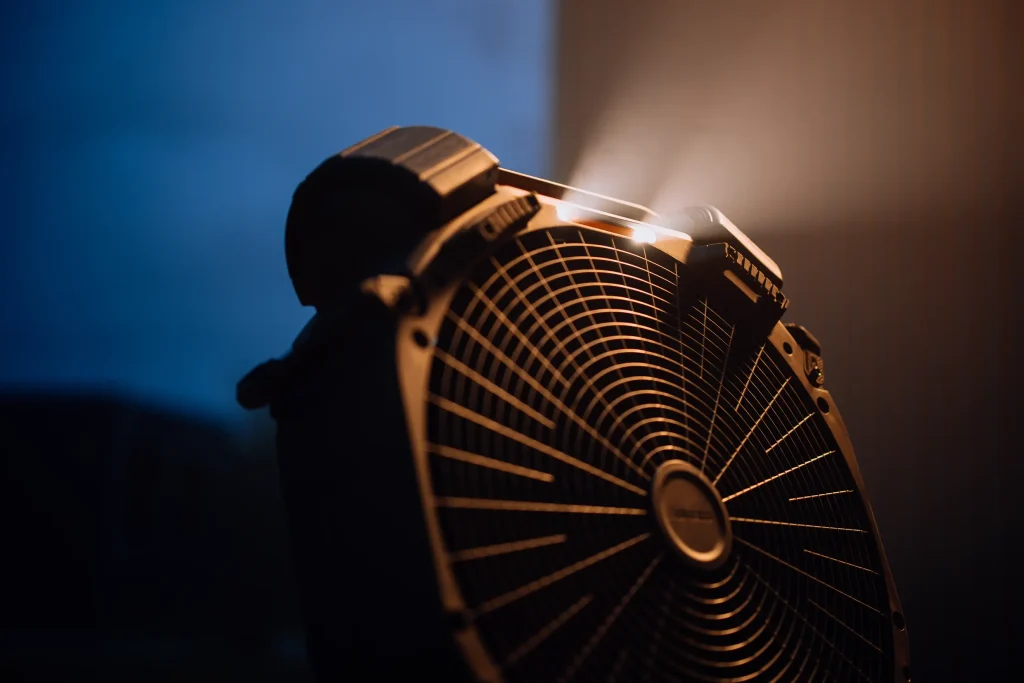

- Better visibility in the dark – Integrated LED lights, powered by the main battery
Smarter operations with the MyHolmatro app

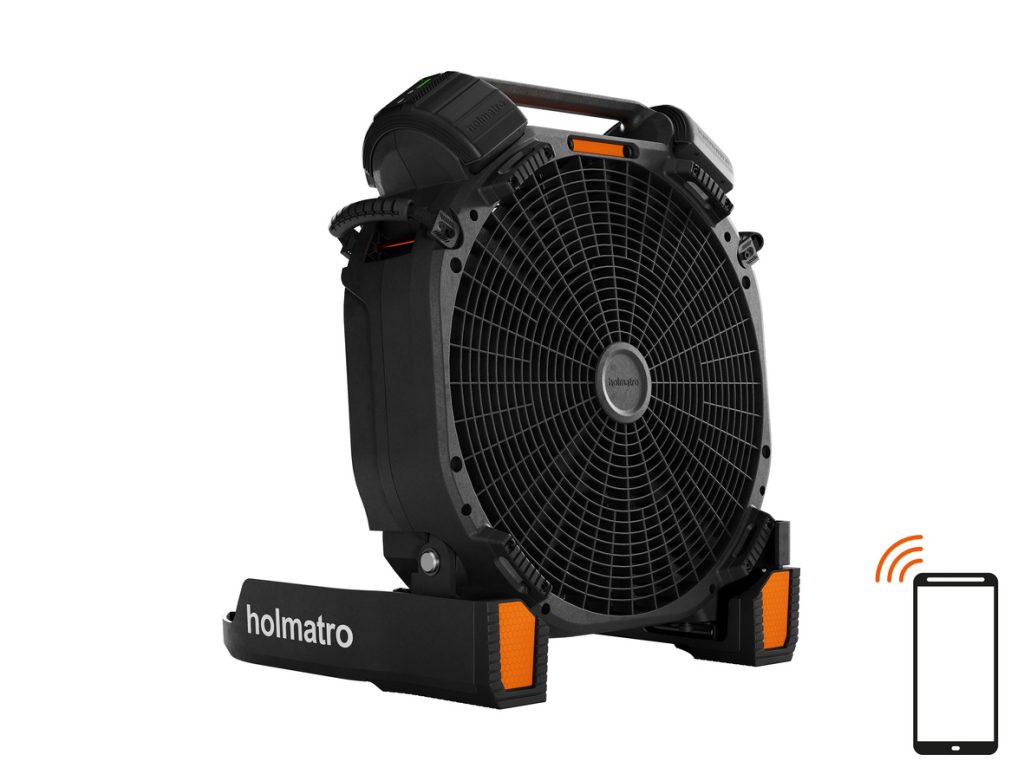

- Easily connect the PPV to your tablet or phone with Bluetooth®
- Operate your PPV from a safe distance
- Fine-tune the airflow steplessly in the app
- Keep an eye on the runtime and battery charge level
- Switch the lights of the PPV on and off
- Perform a quick and easy self-check of RPM, power usage, and battery status
