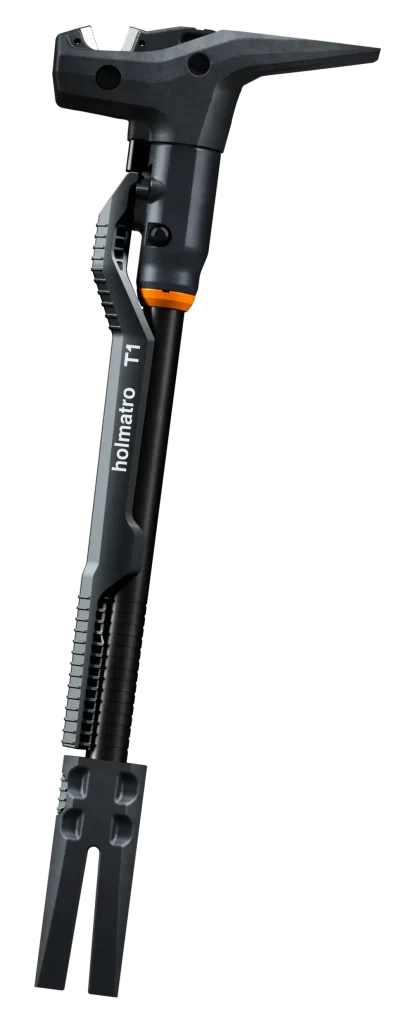

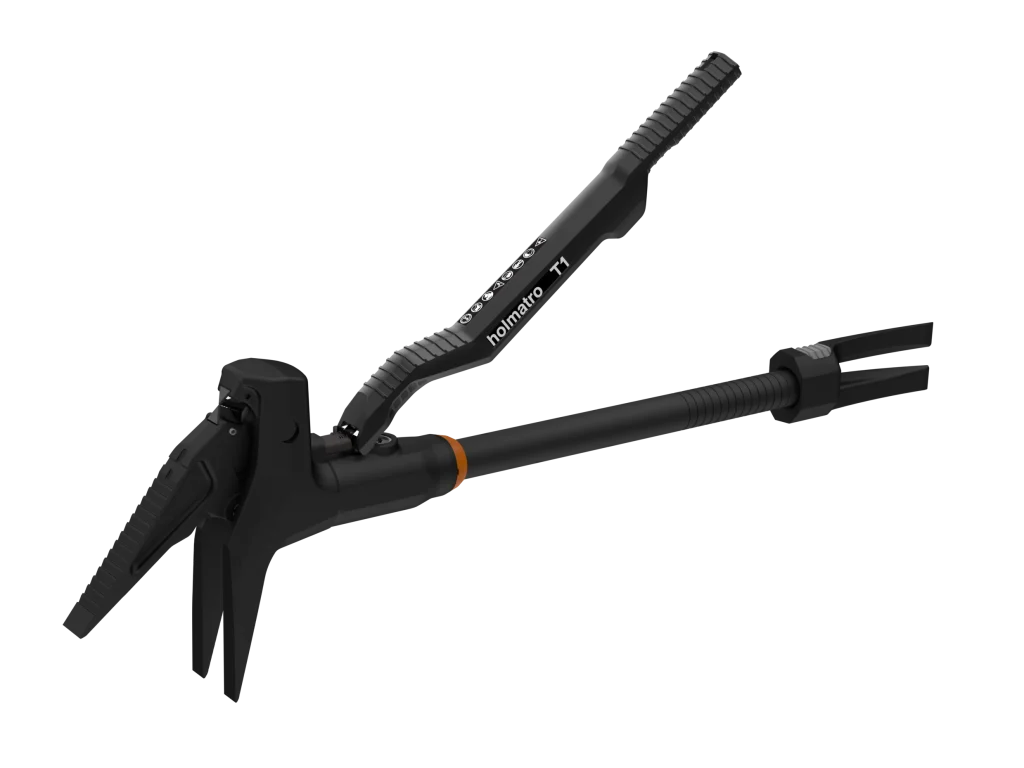

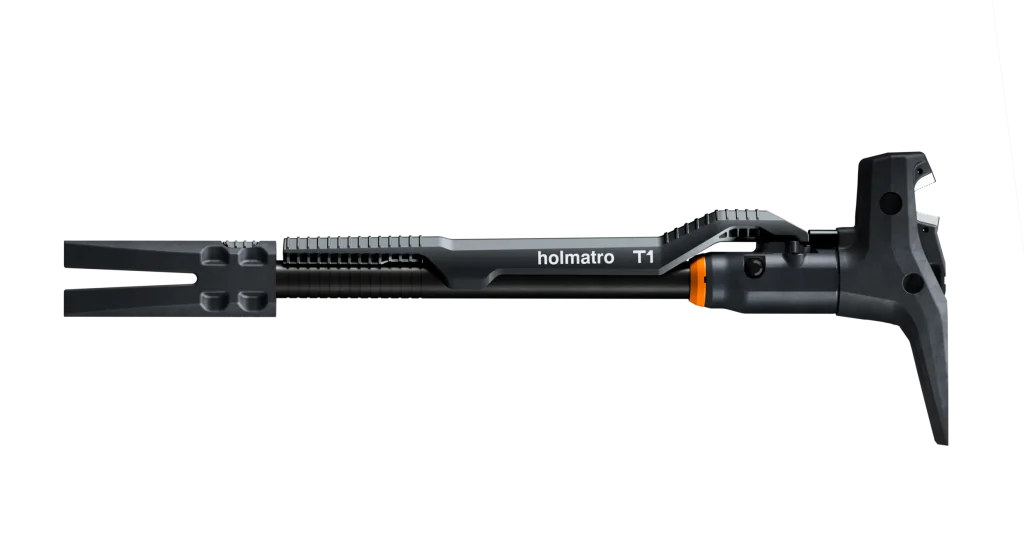

Forcible Entry Tool T1
Features & benefits
- The T1 can cut, wedge, ram, spread, hammer, and lift. This means you always have the right tool for the job.

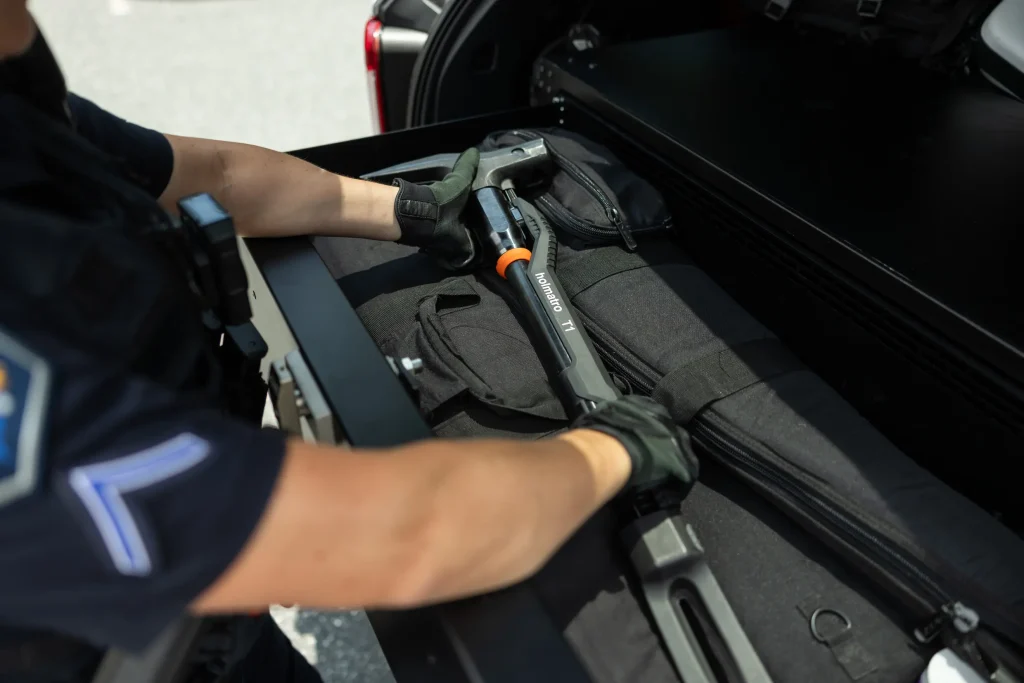

- Having all these functions in one tool also saves weight and space in your vehicle

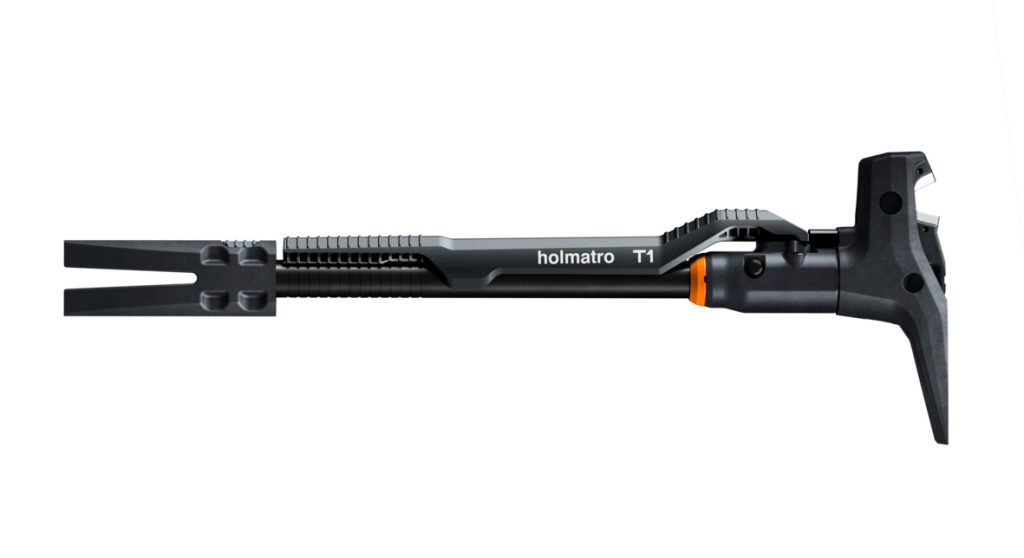

About the Forcible Entry Tool T1
Specifications
Details
Article number
151.001.787
Basic specifications
model
T1
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. spreading force
7419 lbf
spreading distance
128 mm
spreading distance
5 in
max. cutting opening
29 mm
max. cutting opening
1.1 in
max. spreading force
33 / 3.4 (kN/t)
theoretical cutting force
31248 lbf
theoretical cutting force
139 / 14.2 (kN/t)
min. spreading force 25mm from tip
5845 lbf
min. spreading force 25mm from tip
26 / 2.7 (kN/t)
General specifications
operator type
hand
Dimensions, weight and temperature
weight, ready for use
7.7 kg
weight, ready for use
17 lb

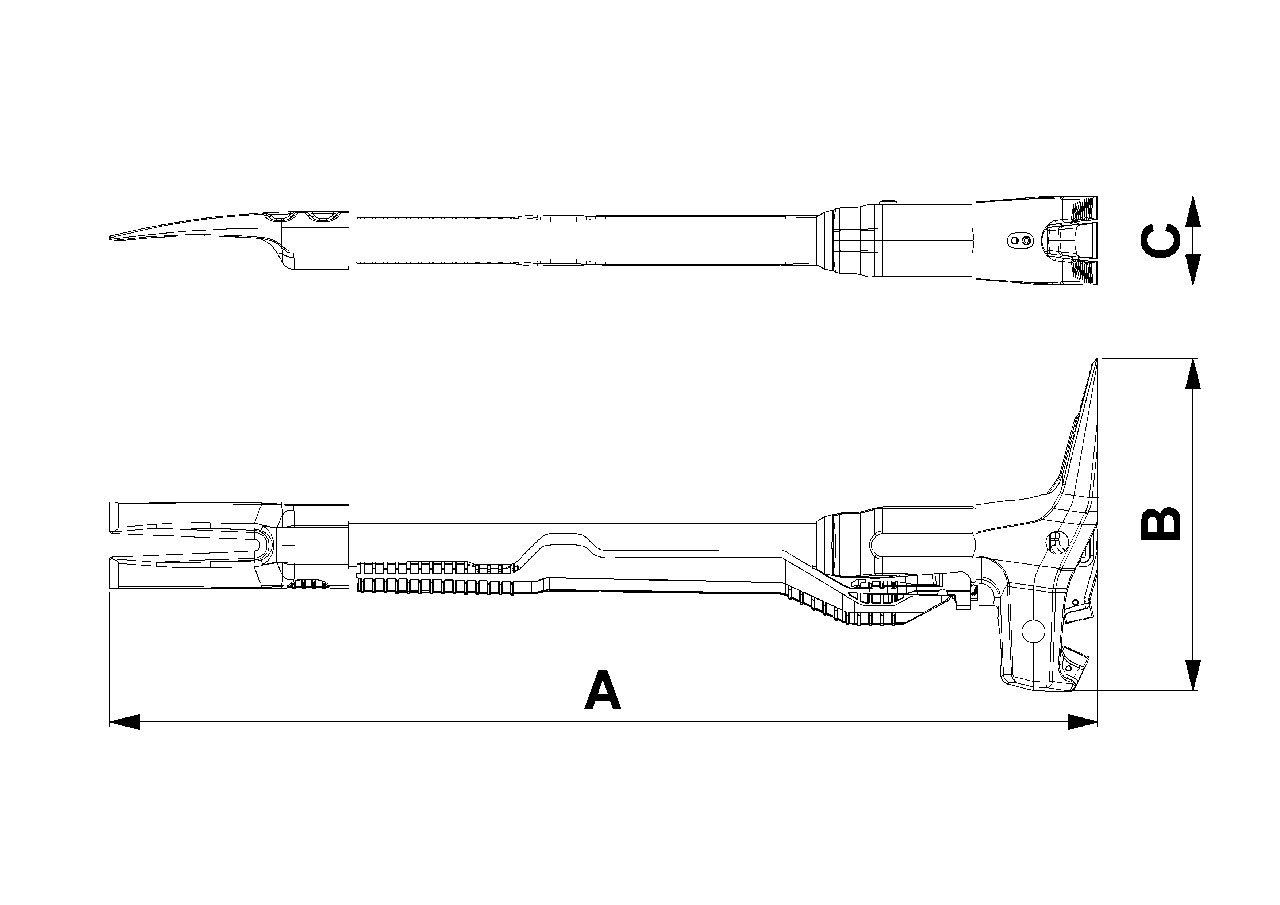

dimensions (AxBxC)
694 x 232 x 62 mm
dimensions (AxBxC)
27.3 x 9.1 x 2.4 in
Cutting performance
round bar (S235)
18 mm
round bar (S235)
0.7 in
Features
Multifunctional tool
- The T1 can cut, wedge, ram, spread, hammer, and lift. This means you always have the right tool for the job.
- Having all these functions in one tool also saves weight and space in your vehicle
- The T1 is a stand-alone tool, so you won't need batteries or an external pump
Compact and powerful
- The patented hydraulic cutting/spreading mechanism of the T1 allows for high cutting & spreading forces in a compact tool design
- Easy to use in confined spaces

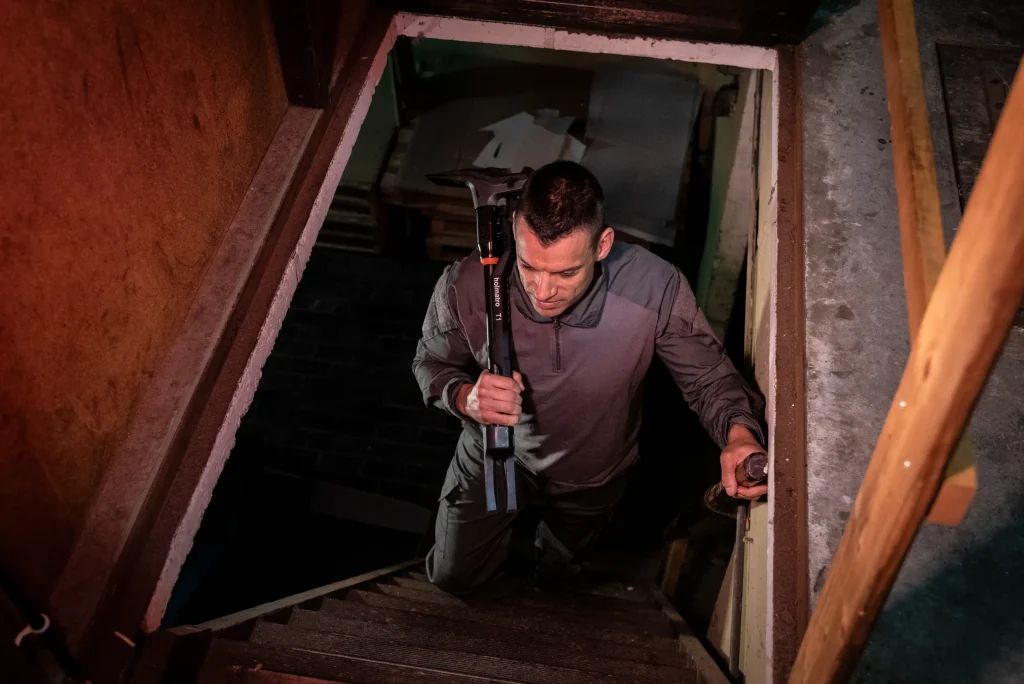

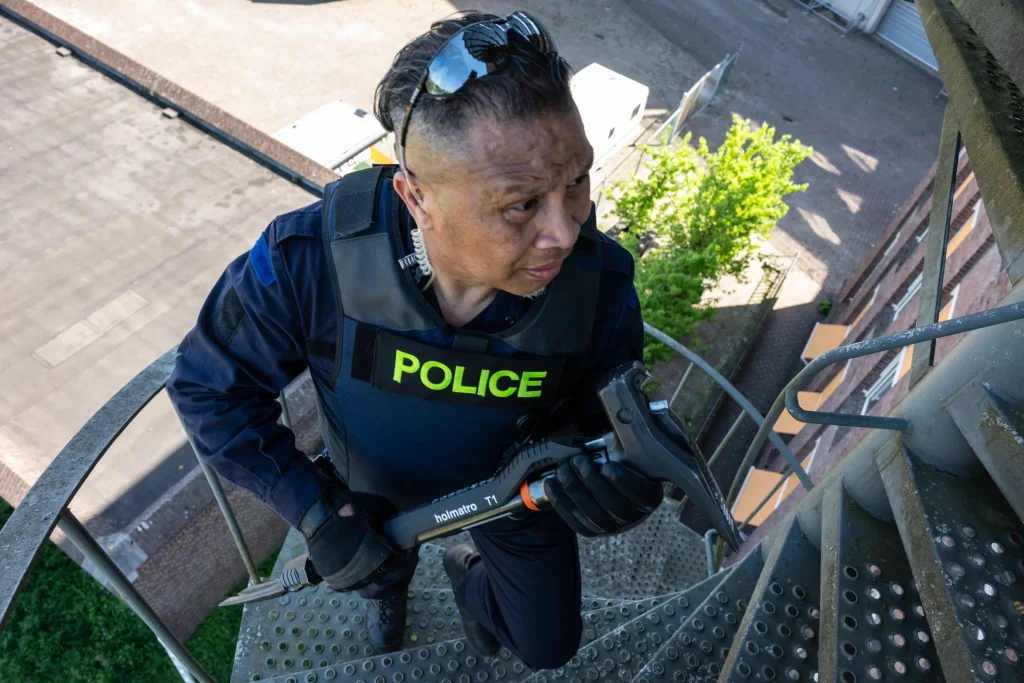

- Easy to carry and store

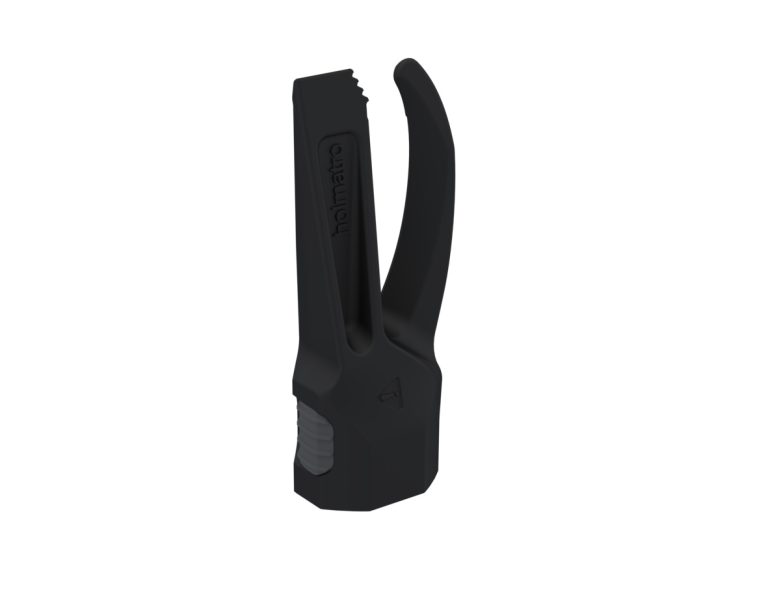

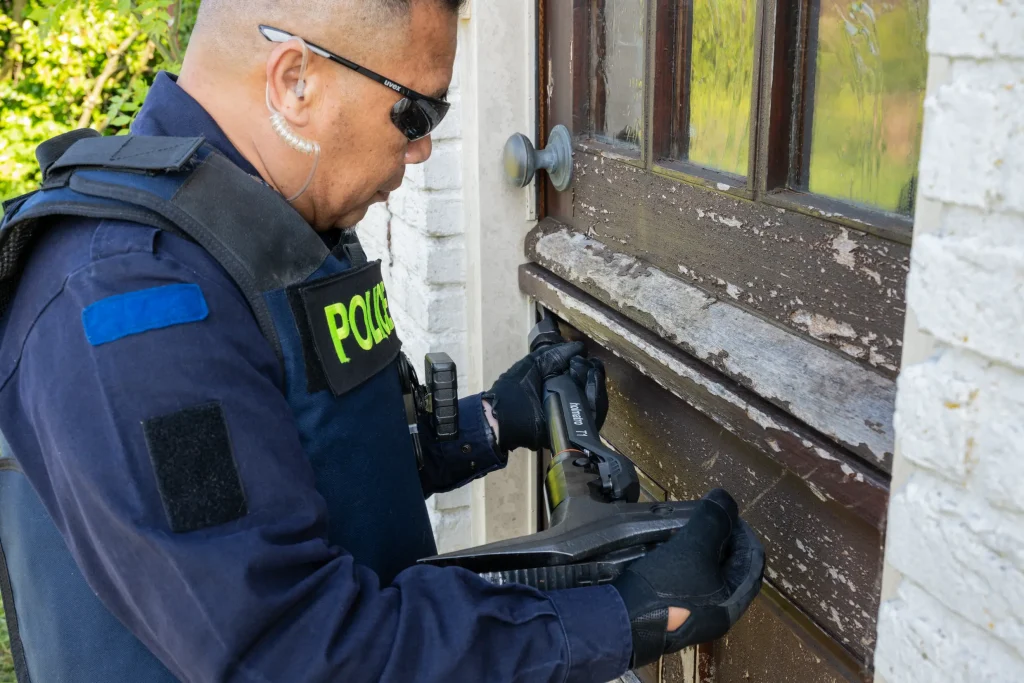

Detachable Wedge

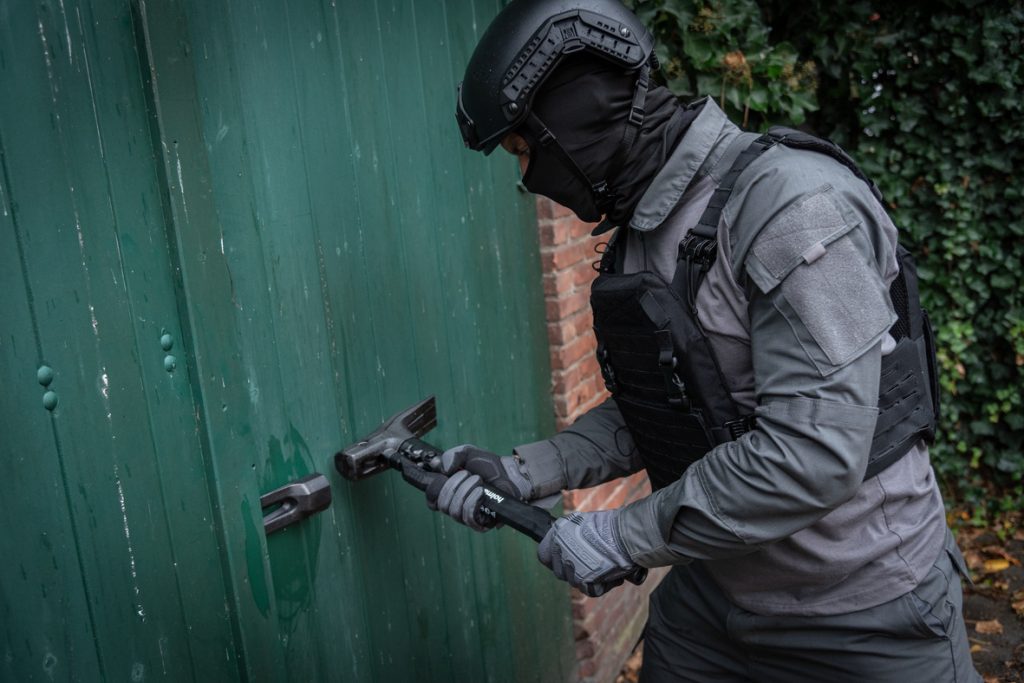

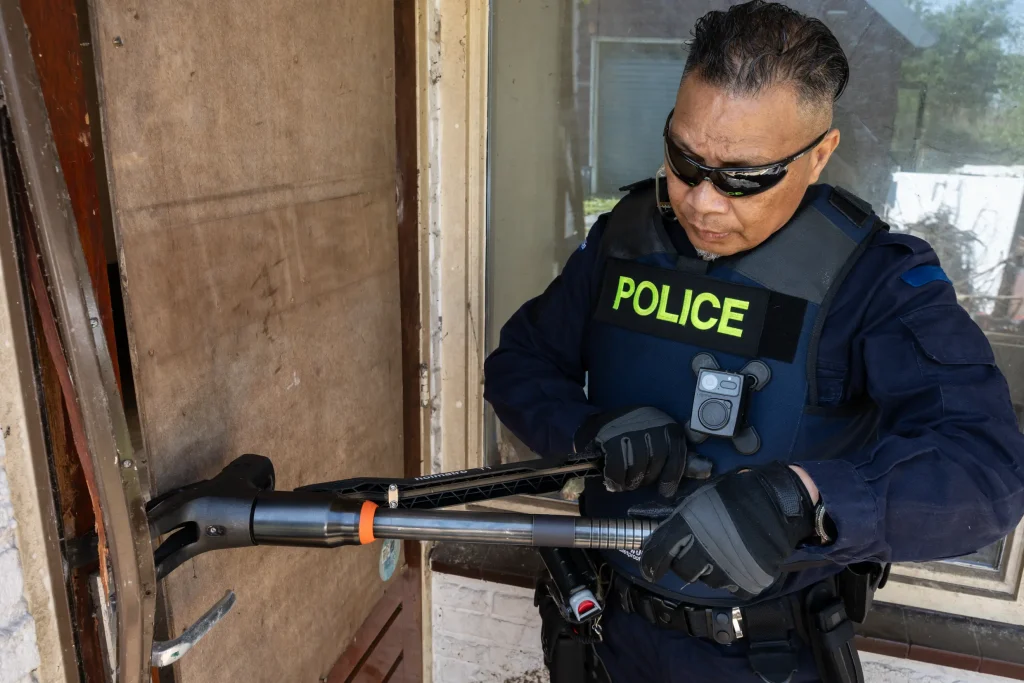

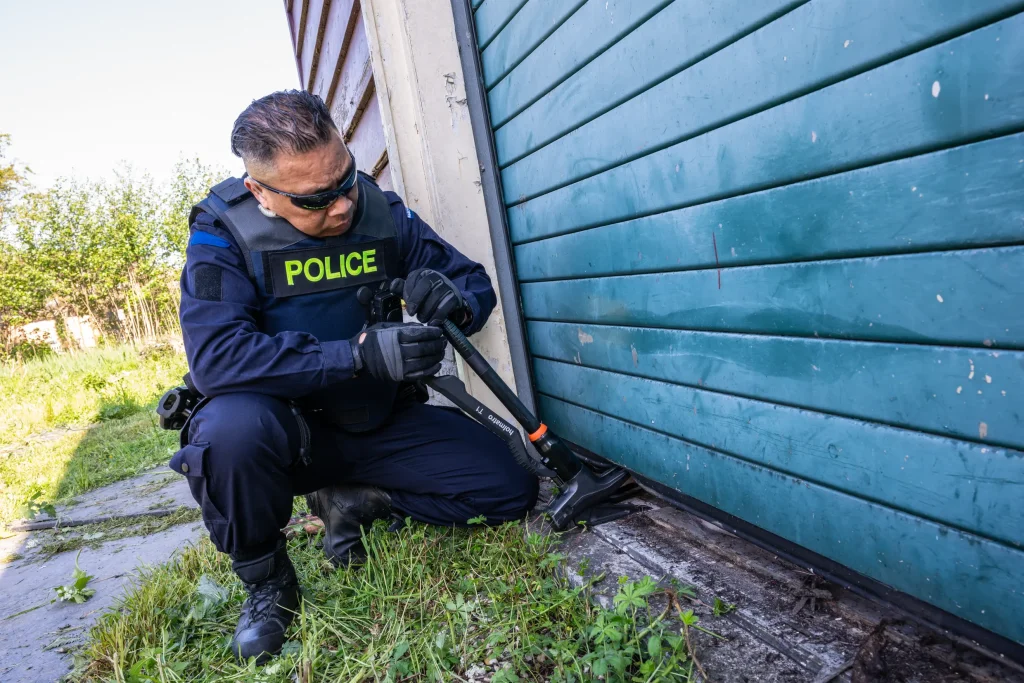

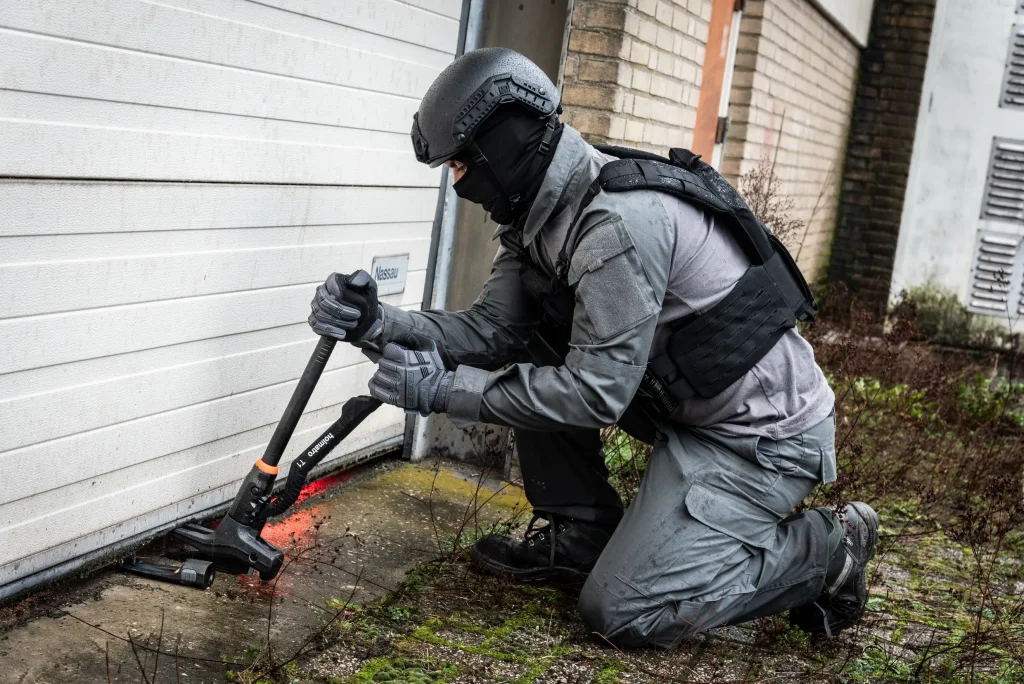

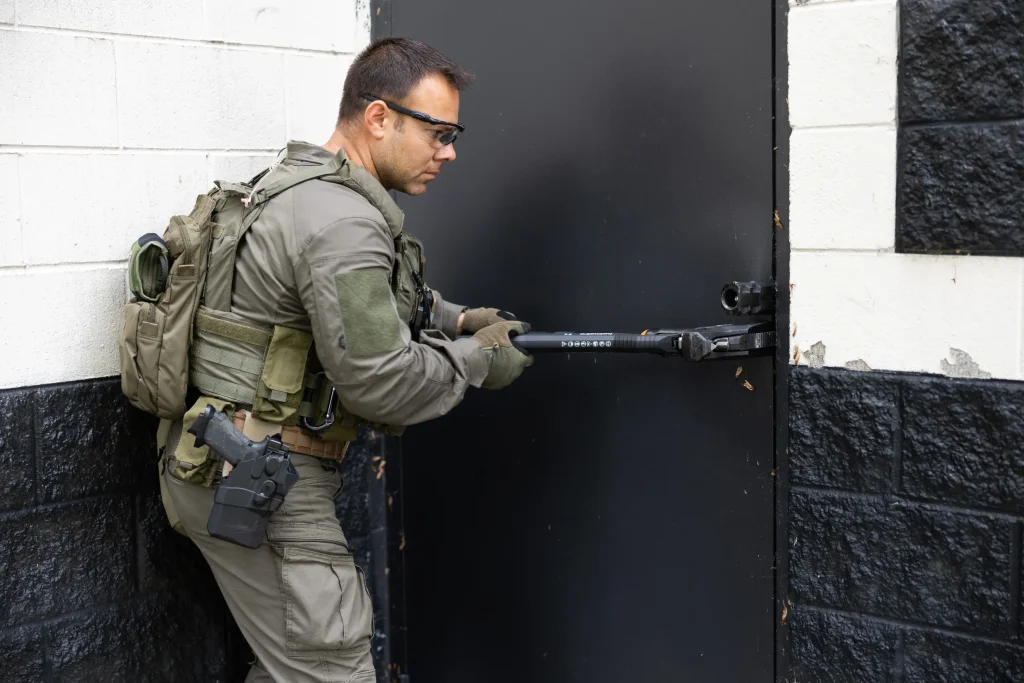

- You don't need a second person or tool for creating the first gap, which makes forcing heavy inward opening doors a one-person job
- The wedge can also be used for pulling hinges or manually forcing outward opening doors

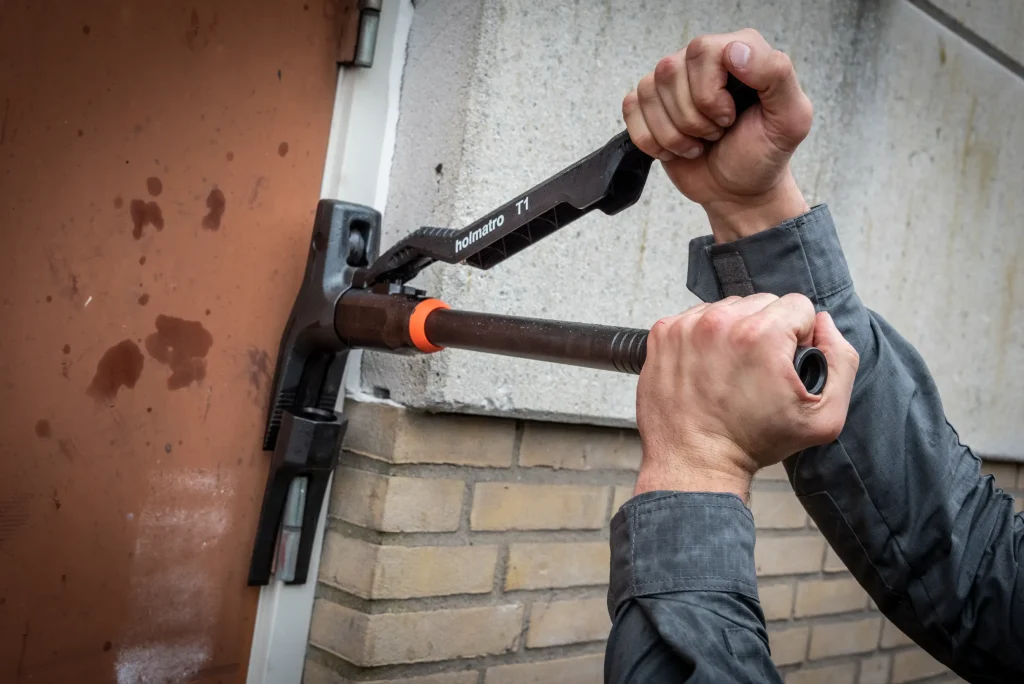

Spreading tips

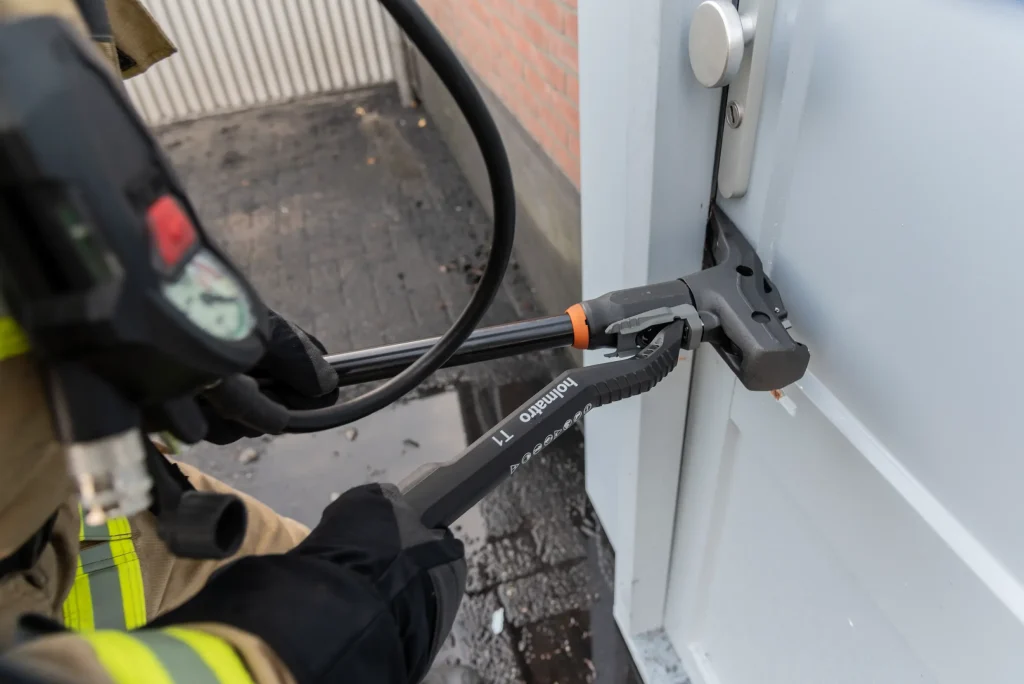

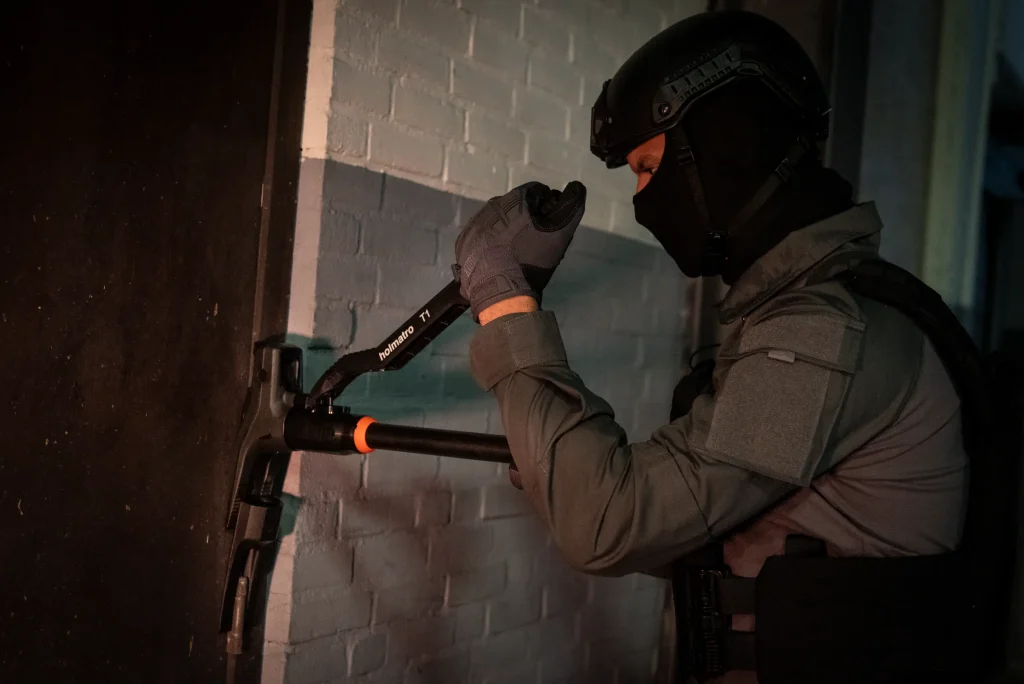

- For opening heavy doors in a controlled way

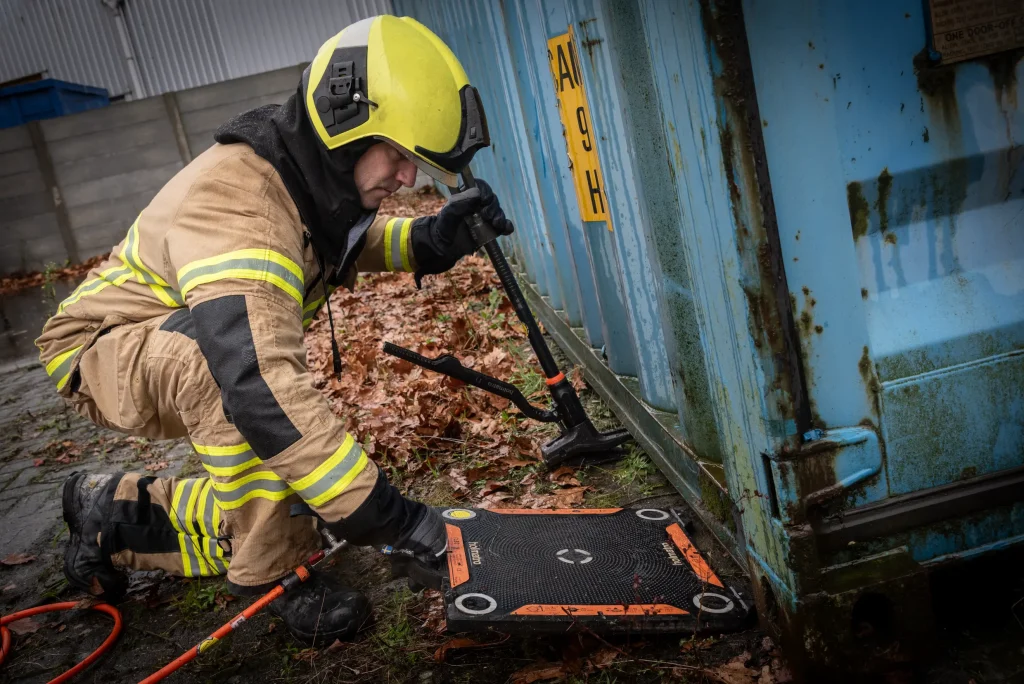

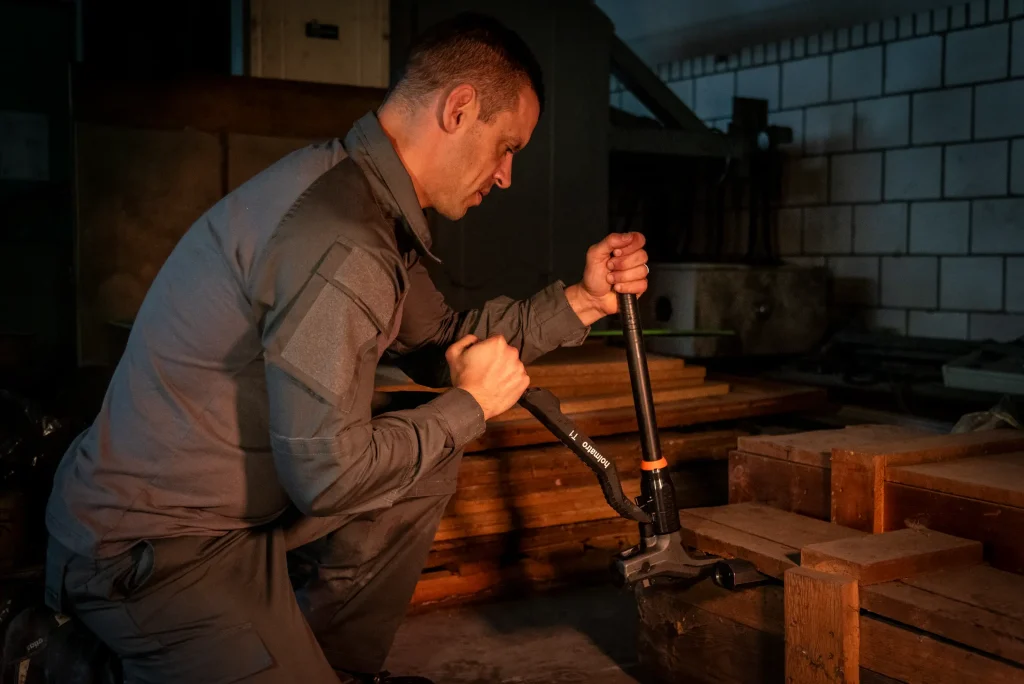

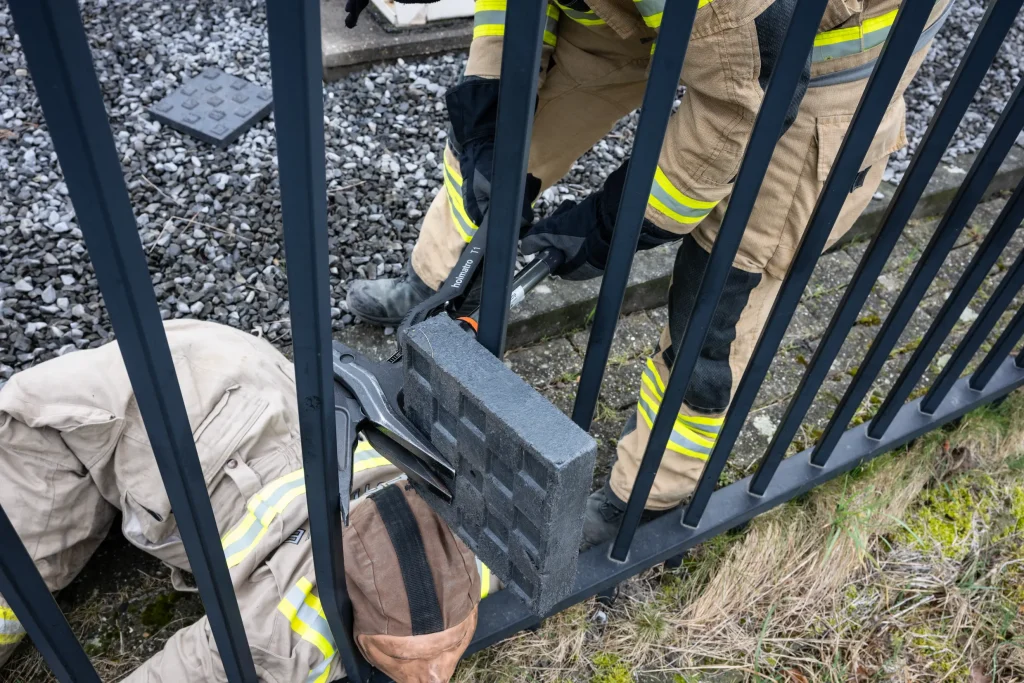

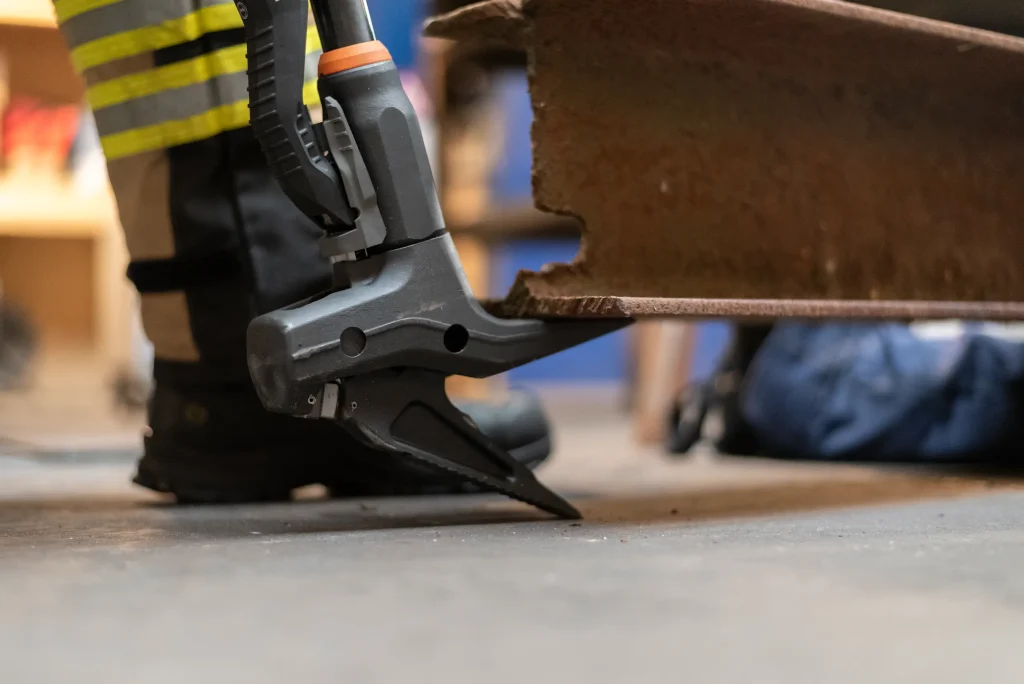

- The load-holding function makes the tool suitable for lifting and progressive lifting
- You can also use the spreading tips to create space in vehicles
Optimized cutting blades and jaw design

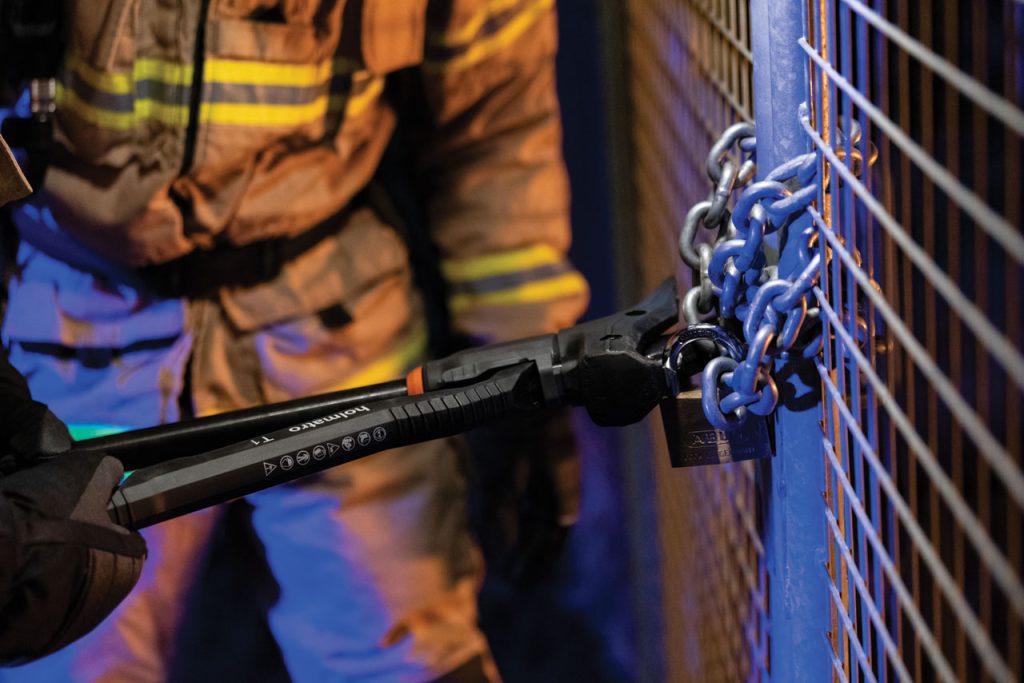

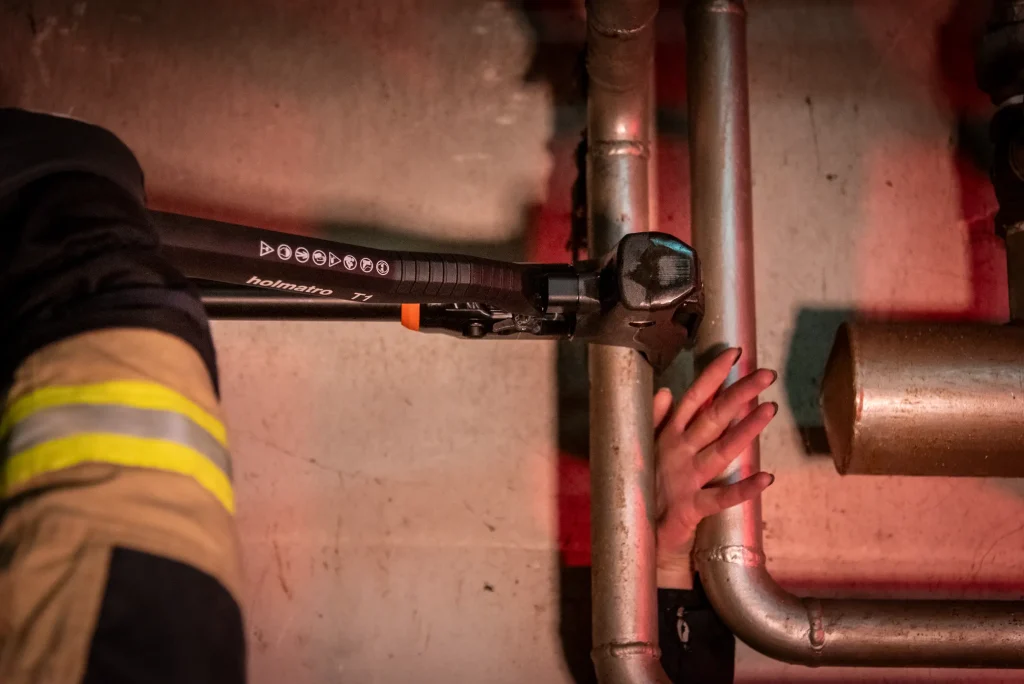

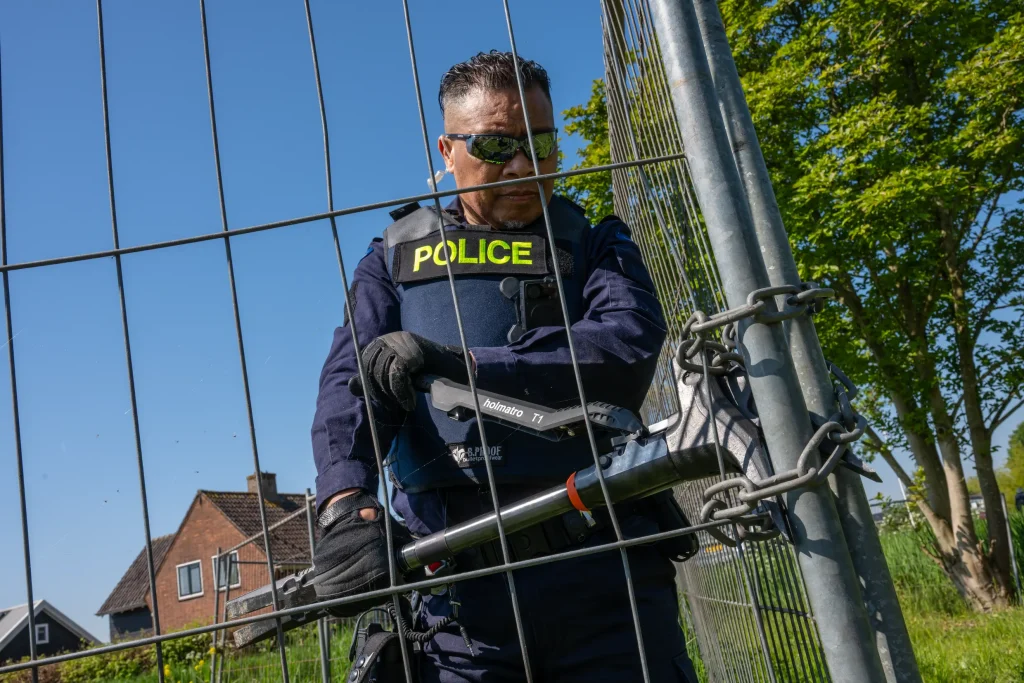

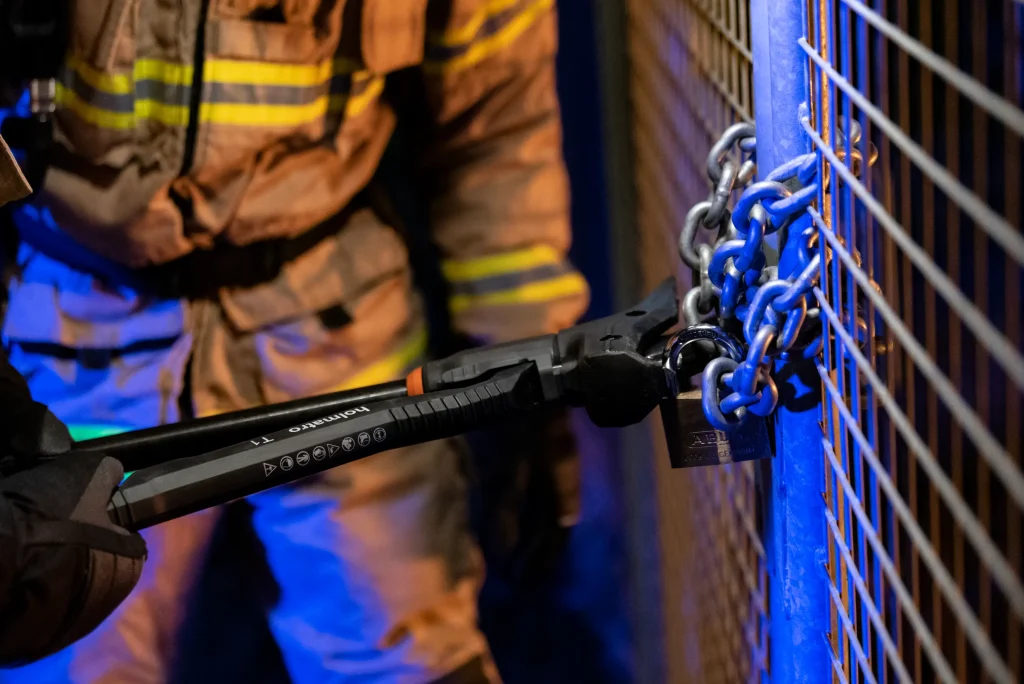

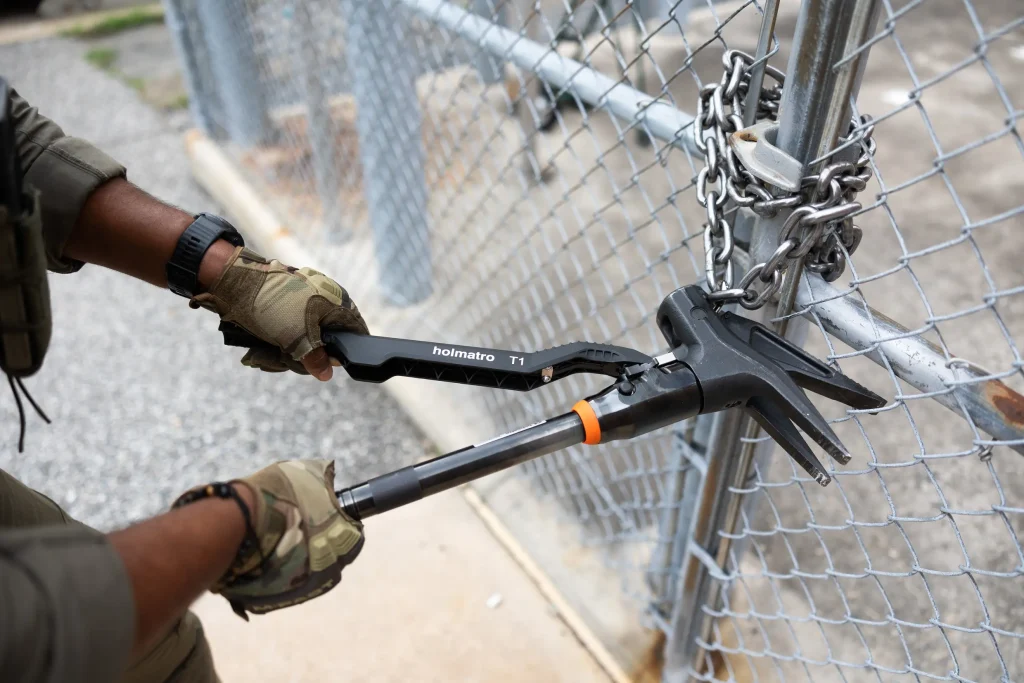

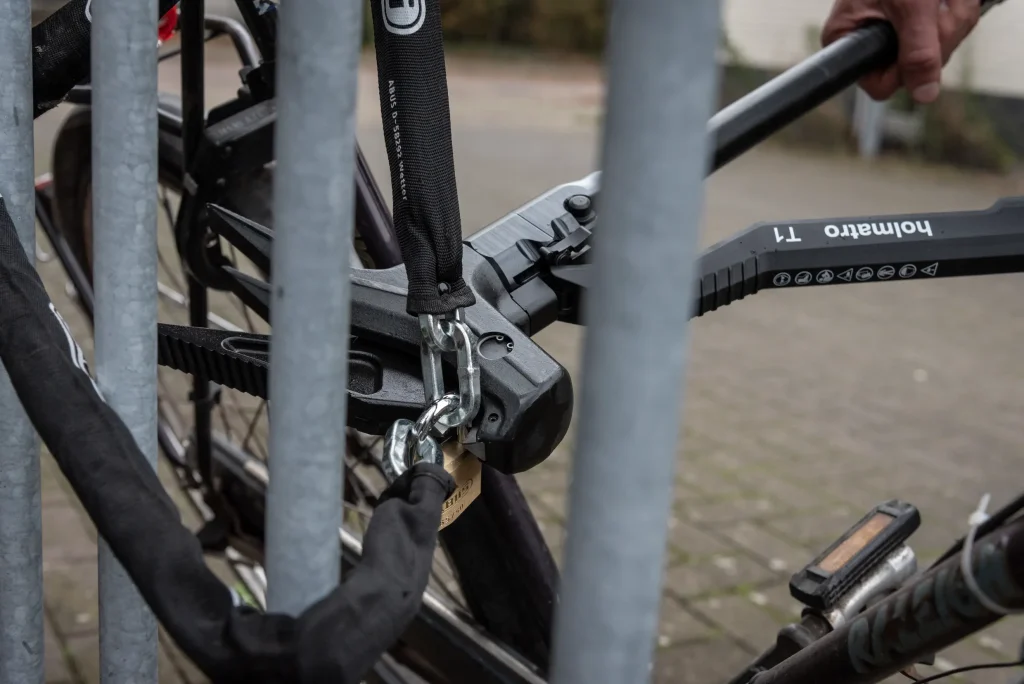

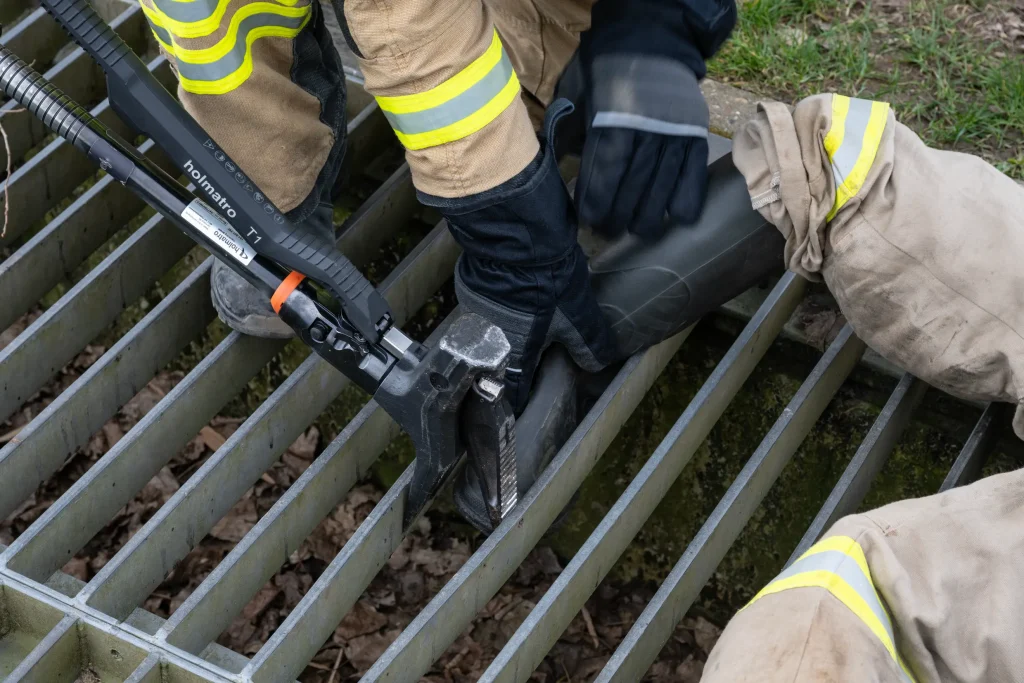

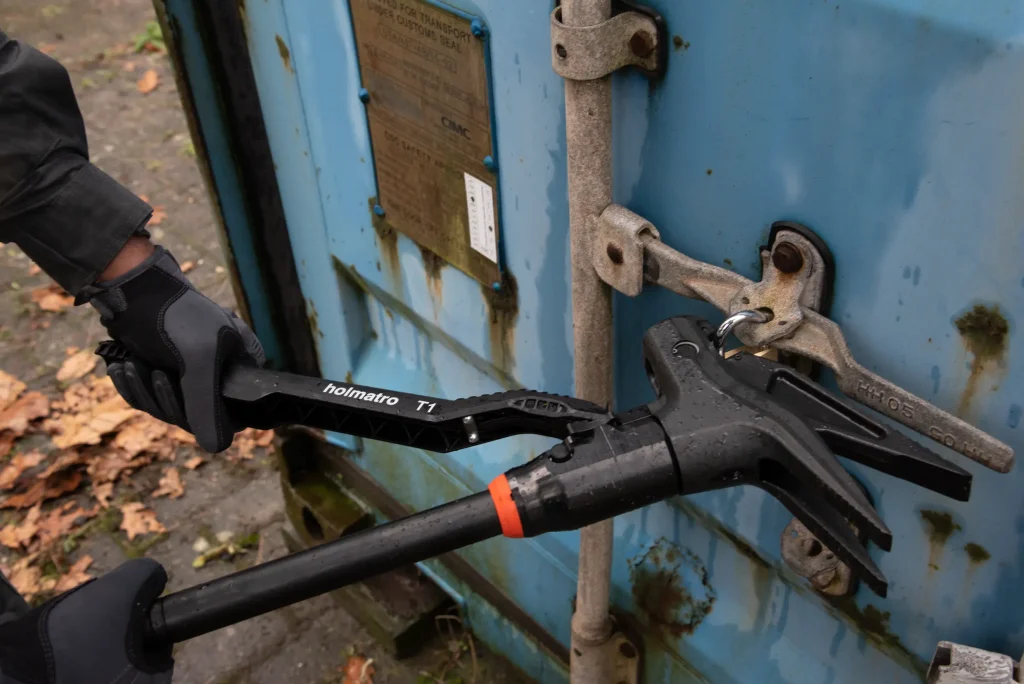

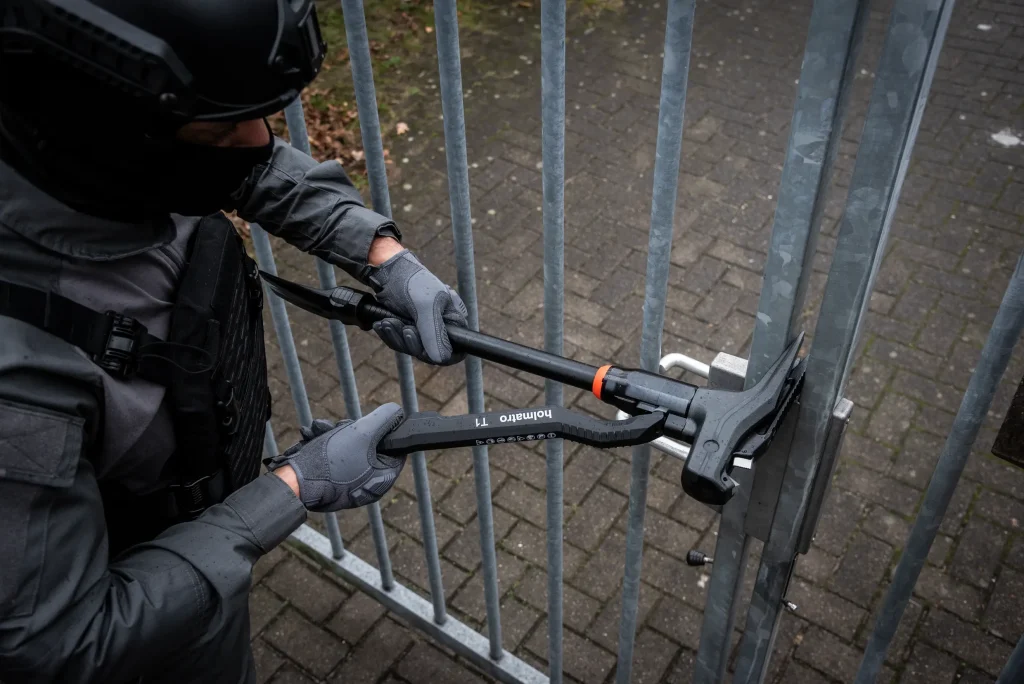

- The T1 can easily cut rebar, chain and padlock
- It can cut up to ø18 mm/0,7 in of round bar (S235)
- You can easily replace the cutting blades when they are damaged
2-stage pump
- High power transmission means 30 kg/66lbs of manual force on the pump rod gives you up to 14.2 ton/31 248 lbf hydraulic cutting force and up to 3.4 ton/7 419 lbf hydraulic spreading force.
- You will need less energy or breathing air, compared to traditional tools

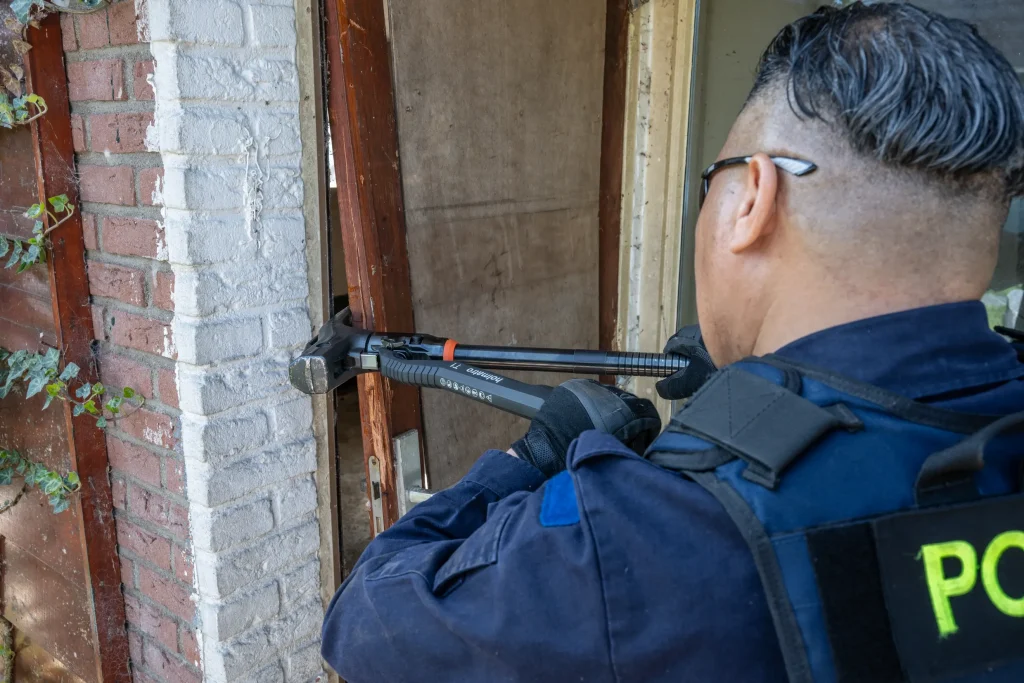

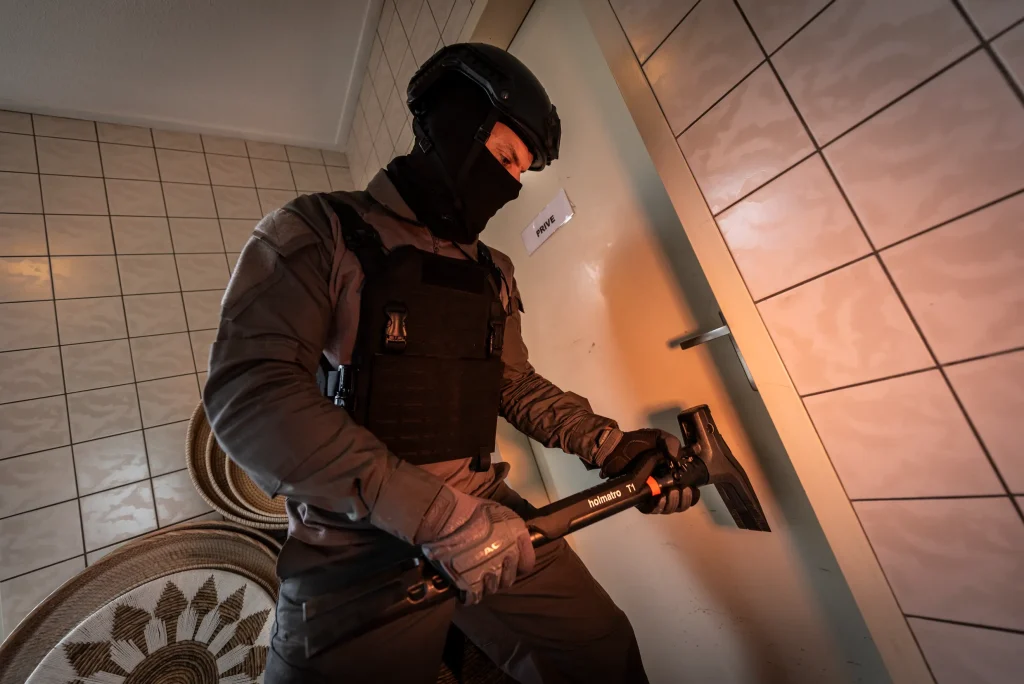

Hammer head

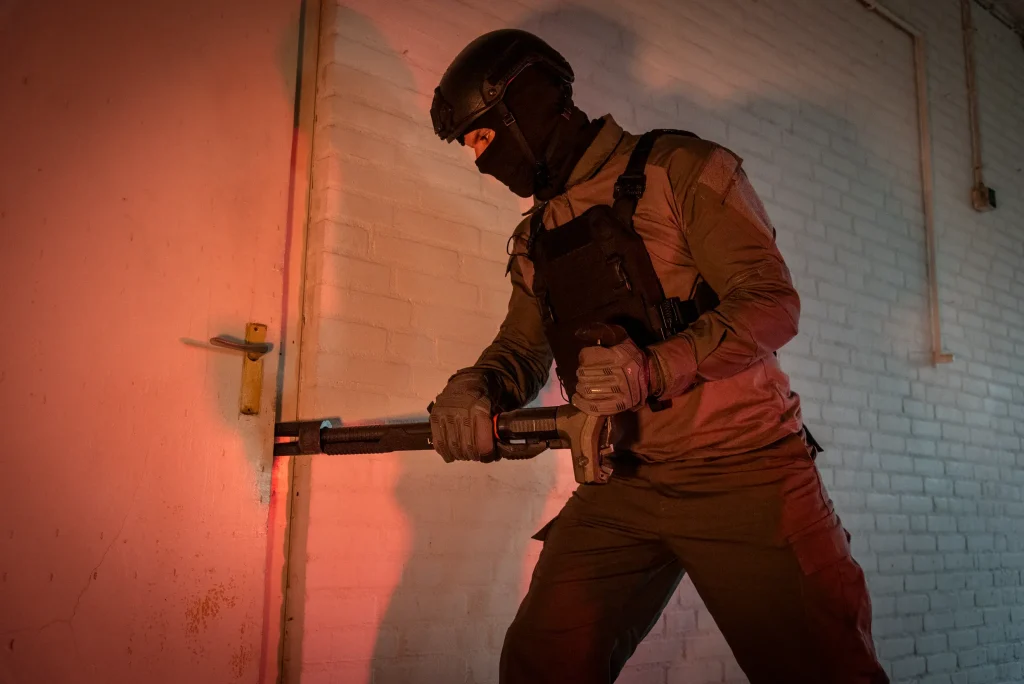

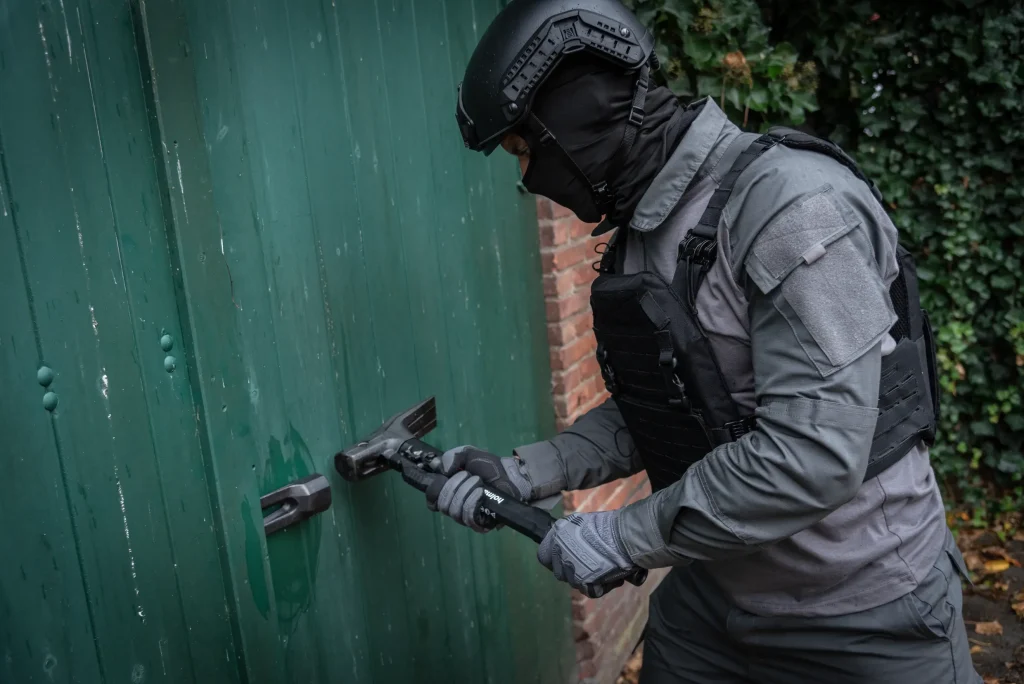

- You can use the tool as a battering ram or hammer
- For opening light inward opening doors quickly
- The optimized weight of 7,7kg/17 lbs makes the tool light enough to carry and heavy enough to do the job
