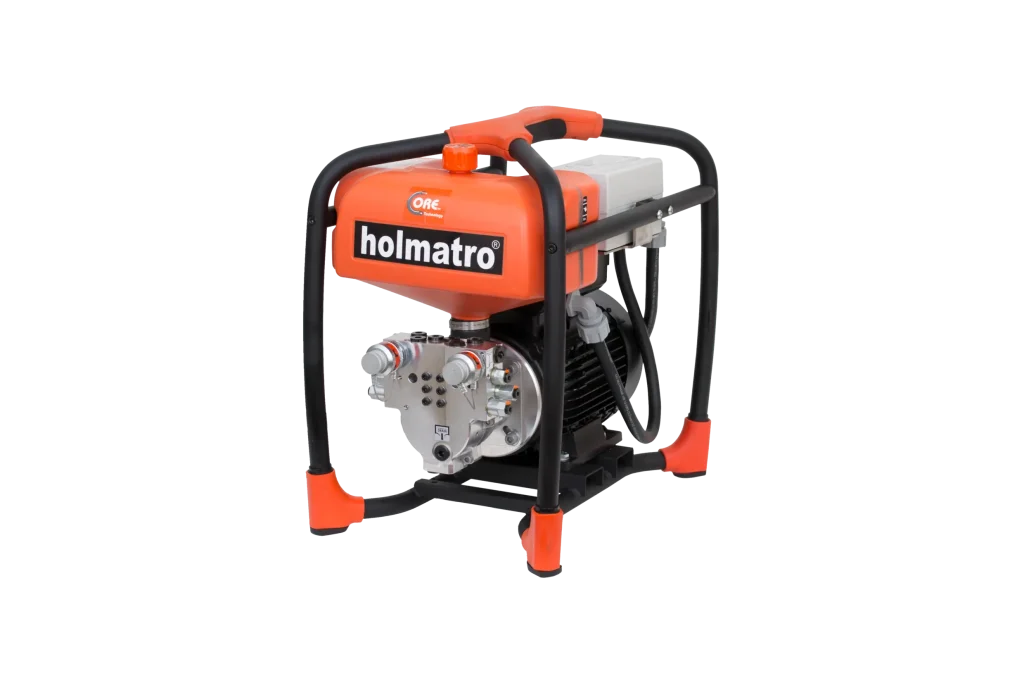

Electric Duo Pump SR 20 HC 2 R
About the Electric Duo Pump SR 20 HC 2 R
Specifications
Details
Article number
158.152.223
Basic specifications
model
SR 20 HC 2 R
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
number of stages
3
capacity oil tank (effective)
4000 cc
capacity oil tank (effective)
135.3 oz
General specifications
pump type
3-stage axial pump
operator type
electric motor
number of tool connections
2
number of tools simultaneously usable
2
engine
230 VAC - 1.8 kW - 60 Hz - 1 Ph
required power
10.6 KVA
Dimensions, weight and temperature
weight, ready for use
32.8 kg
weight, ready for use
72.3 lb
dimensions (LxWxH)
455 x 315 x 460 mm
dimensions (LxWxH)
17.9 x 12.4 x 18.1 in
Norms
EN 13204 classification
MTO
NFPA 1960 compliant
yes
