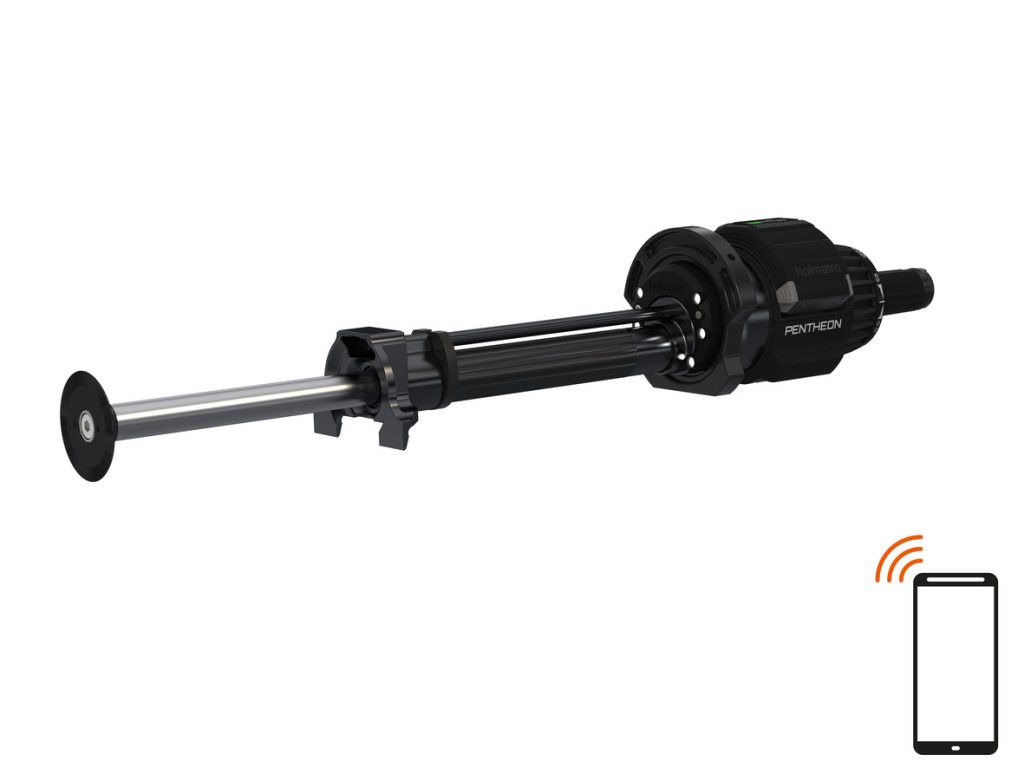

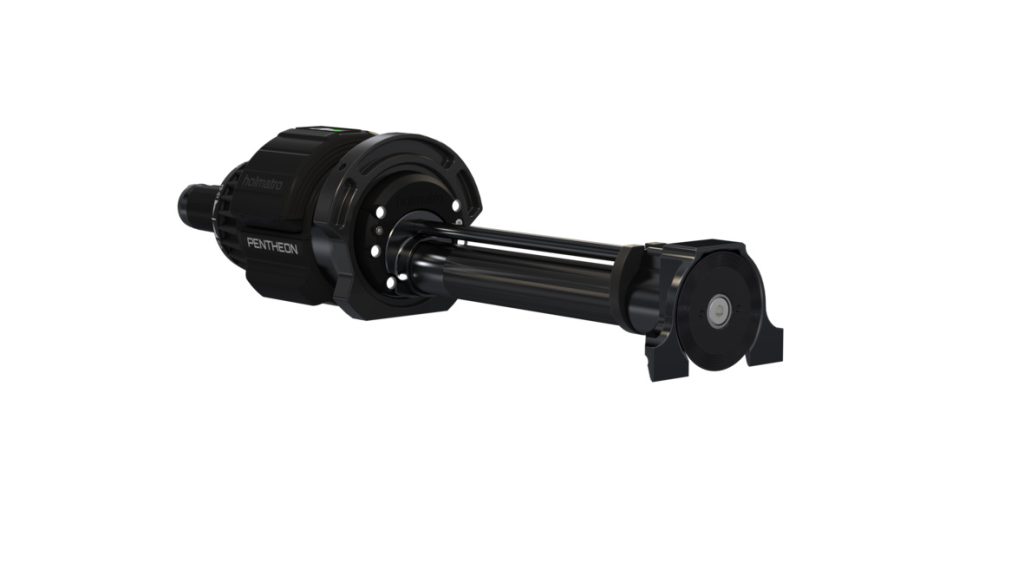

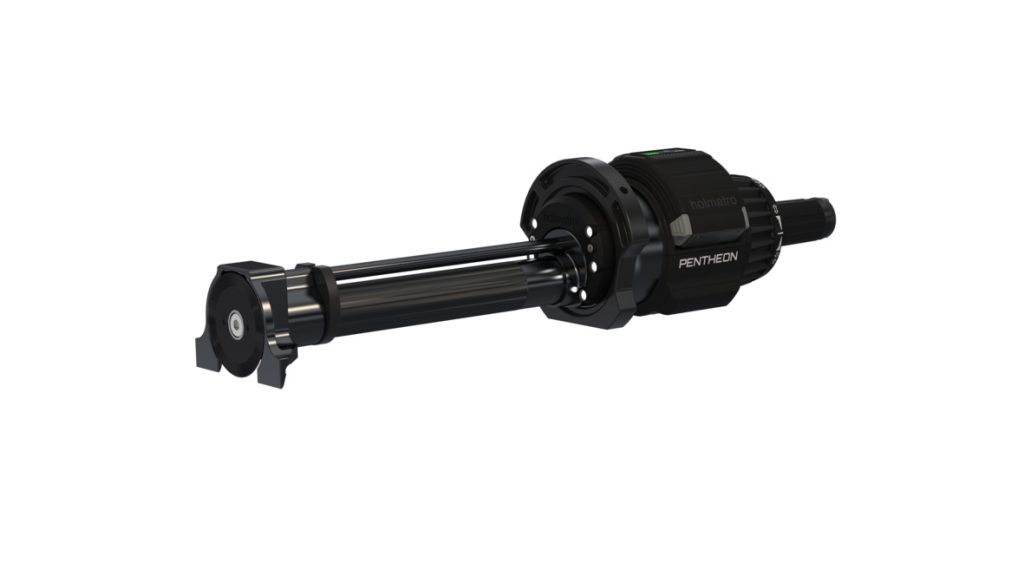

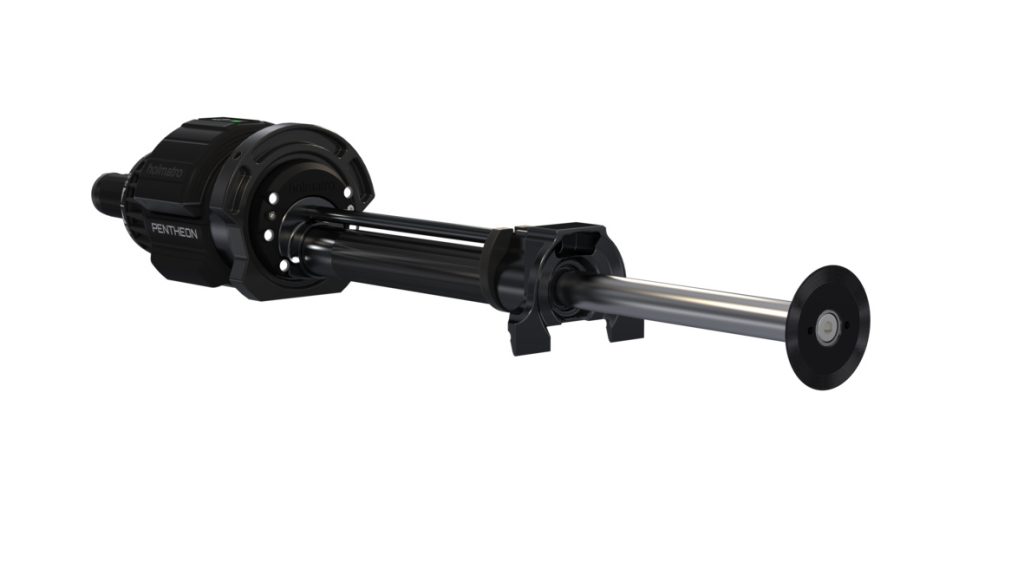

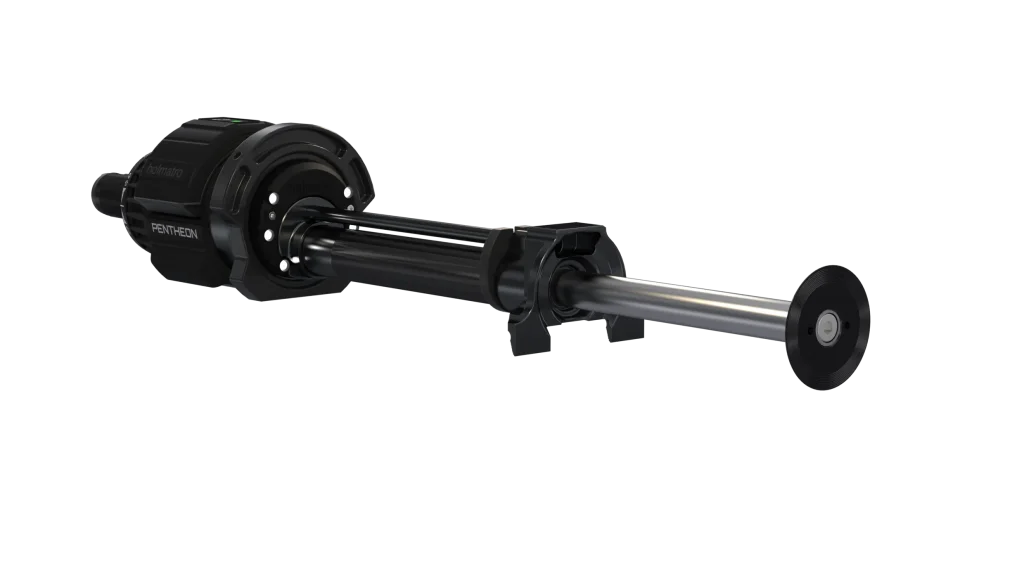

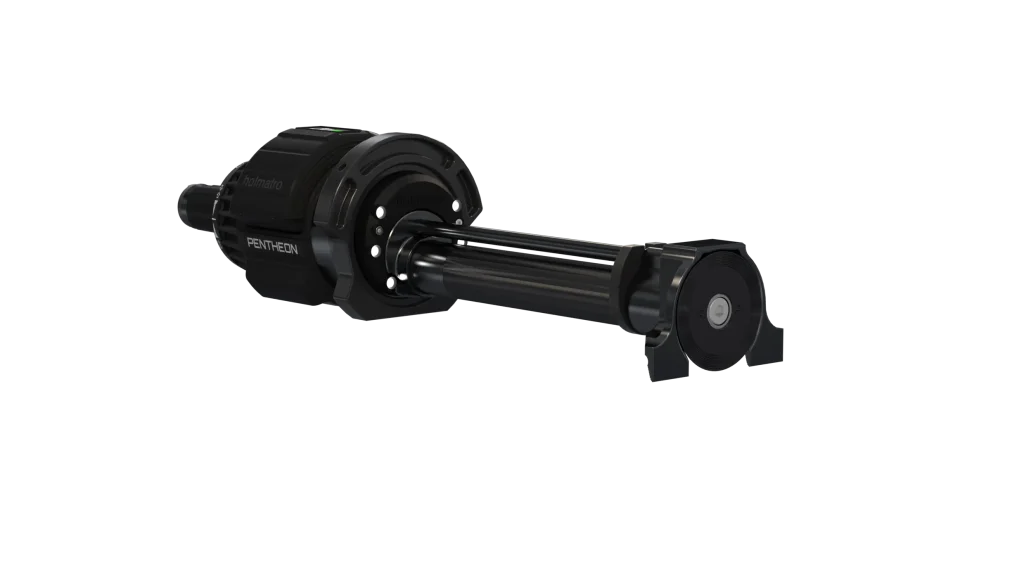

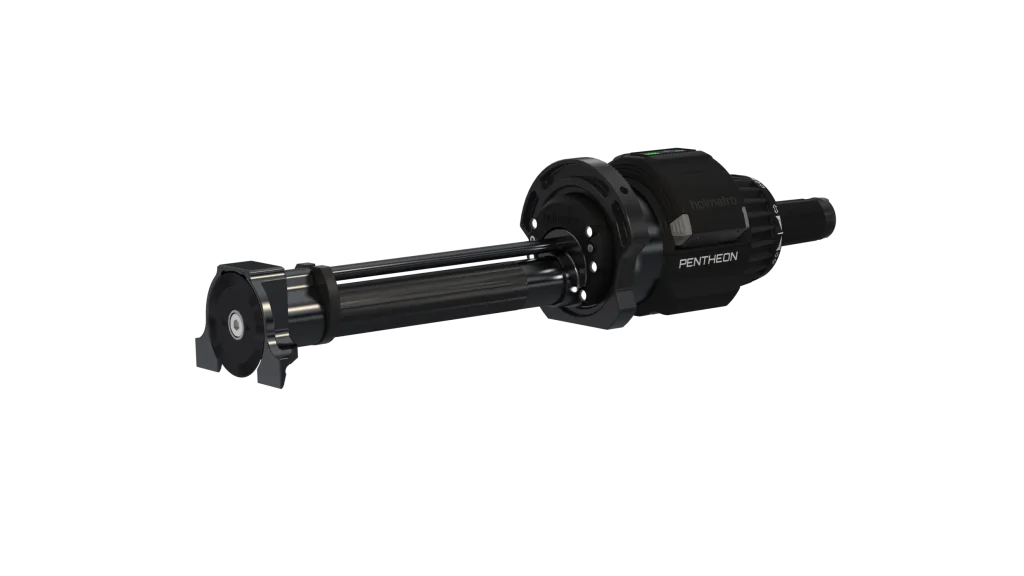

Door Ram PDR200
Features & benefits
- Thanks to a long spreading stroke even the most flexible doors can be opened
- Unlike combi tool style door openers the door ram has a constant high spreading force over its full stroke, to provide full power where you need it
About the Door Ram PDR200
Specifications
Details
Article number
151.004.496
Basic specifications
model
PDR200
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
battery included
no
connectivity, mobile app
Bluetooth
Performance
spreading force over full stroke
15961 lbf
spreading stroke
300 mm
spreading stroke
11.8 in
retracted length
802 mm
retracted length
31.6 in
extended length
1102 mm
extended length
43.4 in
spreading force over full stroke
71 / 7.2 (kN/t)
protection rate
IP57
directives
2006/42/EC, 2014/30/EU
Dimensions, weight and temperature
weight (excl. battery)
12.6 kg
weight (excl. battery)
27.8 lb

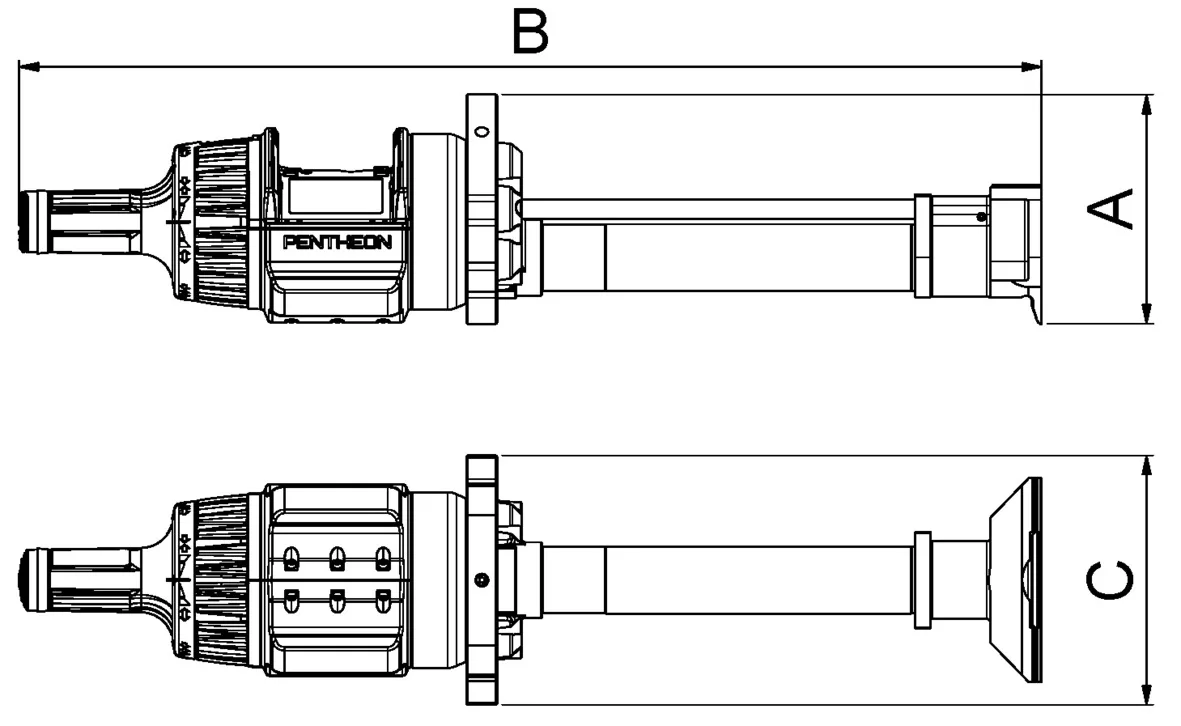

dimensions (AxBxC)
180 x 802 x 196 mm
dimensions (AxBxC)
7.1 x 31.6 x 7.7 in
weight, ready for use (incl. battery)
14.2 kg
weight, ready for use (incl. battery)
31.3 lb
Features
Highly capable
- Thanks to a long spreading stroke even the most flexible doors can be opened
- Unlike combi tool style door openers the door ram has a constant high spreading force over its full stroke, to provide full power where you need it
Ease of placement

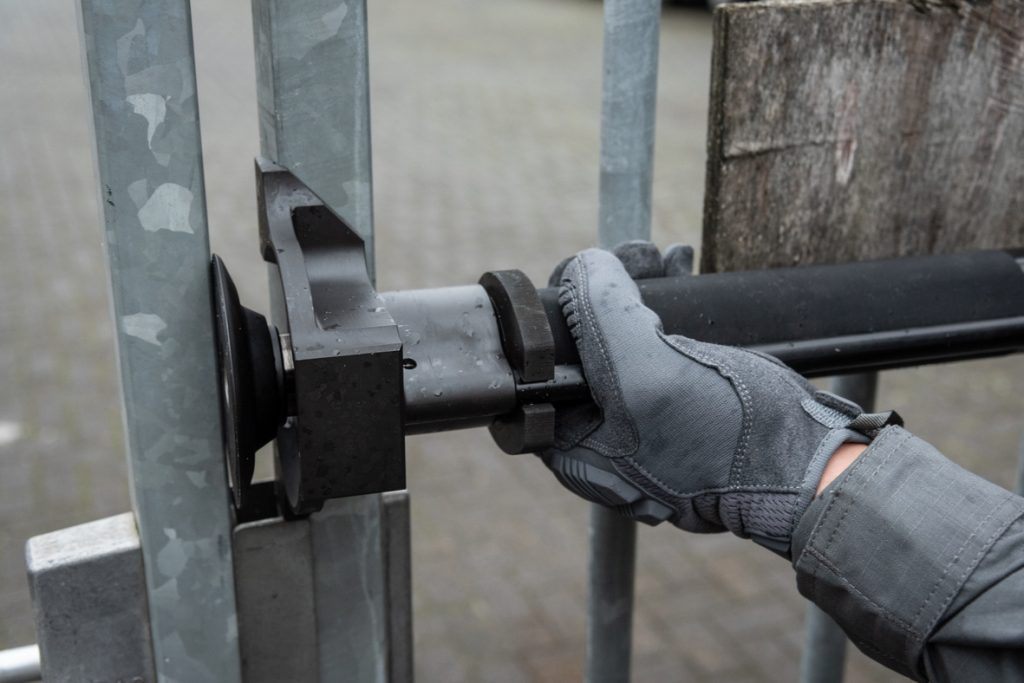

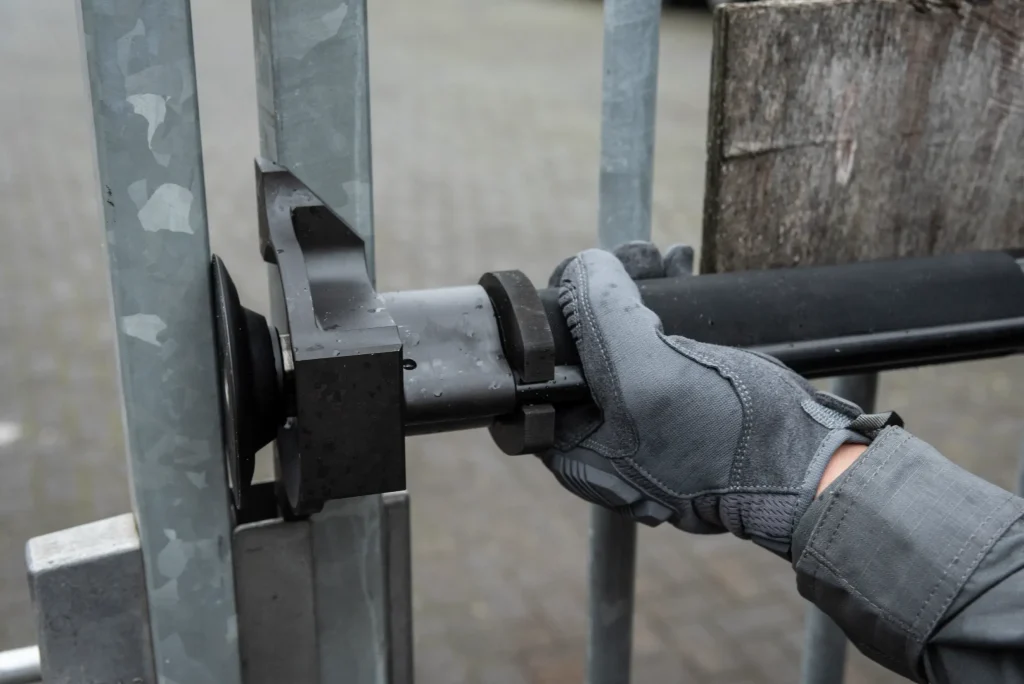

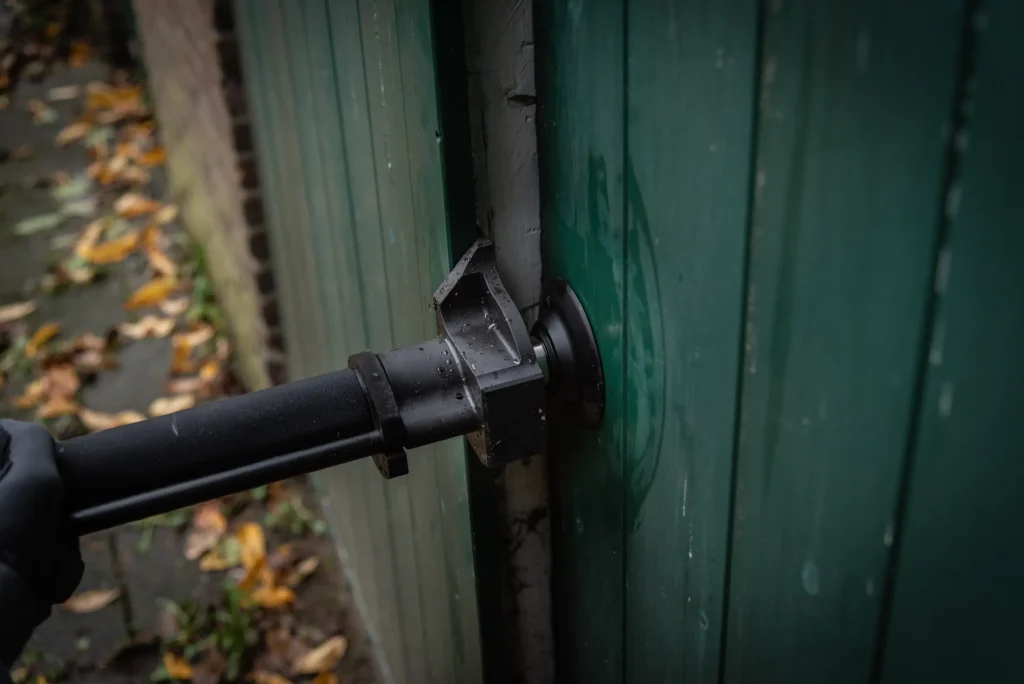

- With its small toe height the door ram can be easily inserted into the door frame
Enhanced safety for the operator

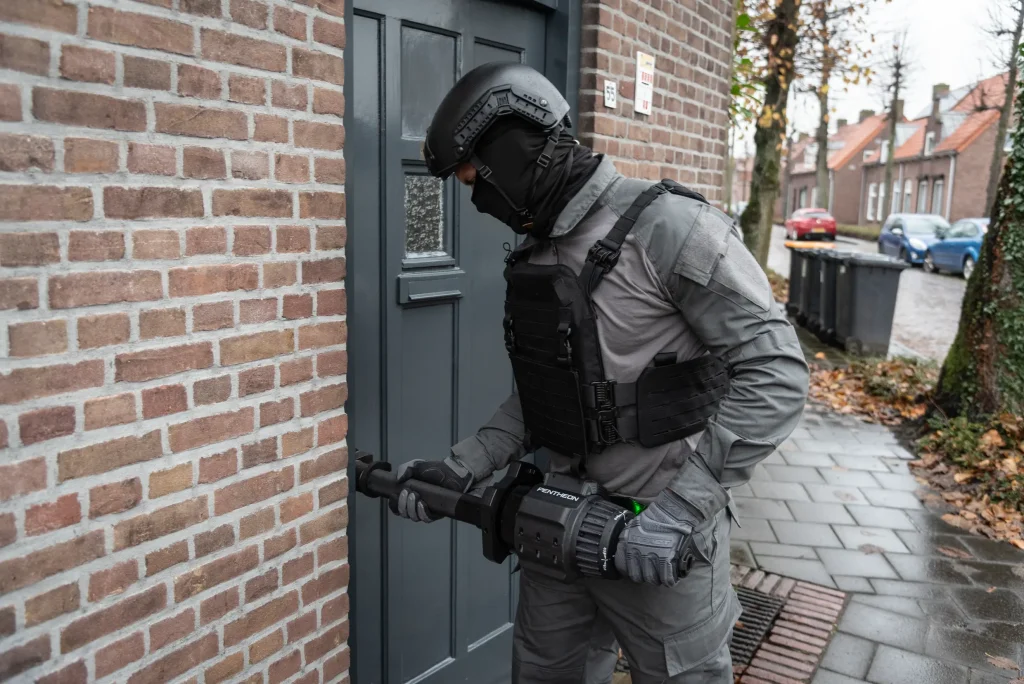

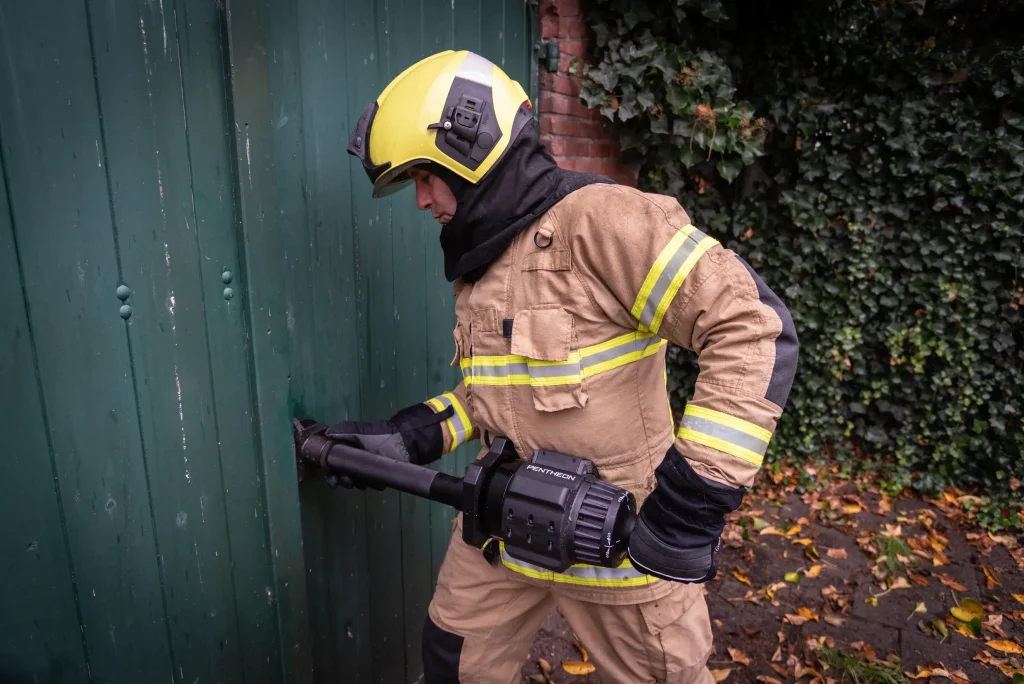

- The toe is attached at a 90-degree angle to the tool body, so you need not be in front of the door to operate the tool. You can work from a position next to the door, out of harm's way
Unparalleled speed for faster operations
- Fastest door ram on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
- Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
Ultimate speed control for more controlled tool handling
- Two-speed inline control handle – Switch between high-speed and low-speed and keep perfect control at all times
Guaranteed maximum power during a tool’s entire lifespan
- Electronic motor control and pressure monitoring – Constant lifetime performance for every Pentheon tool
Battery management made easy
- Charge batteries directly on the tools with the On-Tool Charging System
- Priority charging for on-tool batteries over batteries on a separate charger
- Charge up to six batteries automatically – Connect up to three chargers to one single outlet
- Holmatro battery – Power Pentheon tools, OmniLock struts and other upcoming Holmatro products
Superb ergonomics for effortless handling
- Easy tool operation – Inline control handle with 360° access
Continue your mission under all conditions
- Flawless performance under water, at high and low outdoor temperatures and in rain and snow
- Easier communication during operations – A new and improved drive system ensures tool operation at a lower sound level
- Automatic LED lights, powered by the main battery. The lights can also be operated manually
Realtime tool insights to adapt and change tactics
- Connect every tool to your tablet or phone with Bluetooth®
- Easy to use and intuitive MyHolmatro app
- Realtime diagnostics during every operation – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode
Automatically keep your tools in perfect condition
- Quickly and easily perform an automated Pentheon Self Check with the MyHolmatro app
- Automatically check the drive system, speed and pressure, battery firmware and battery state of health
