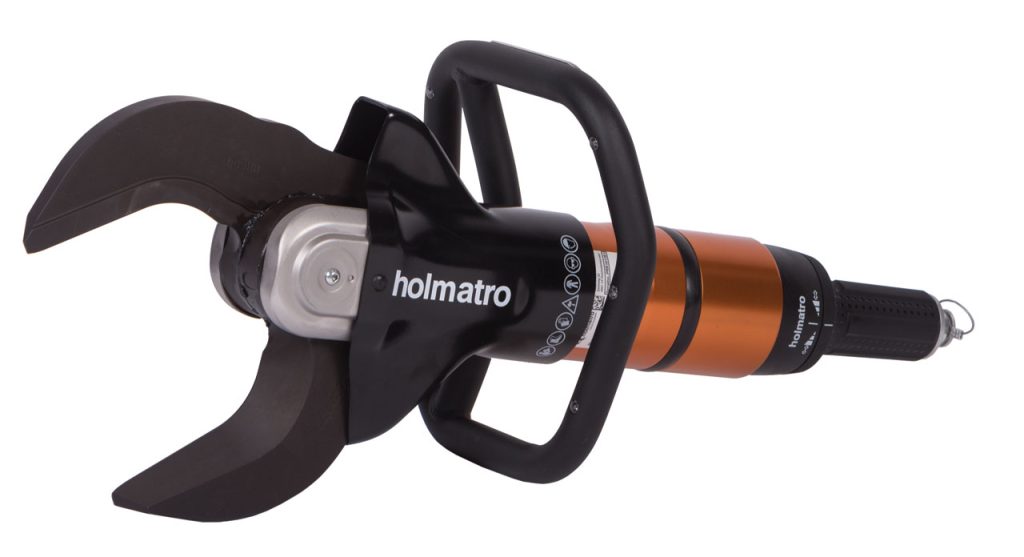

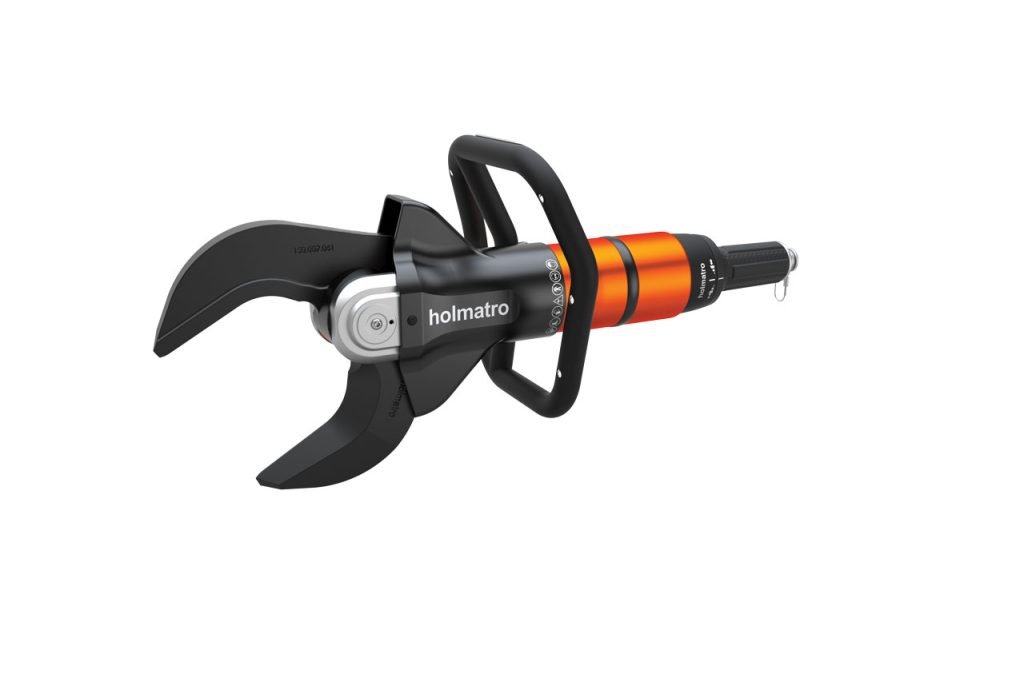

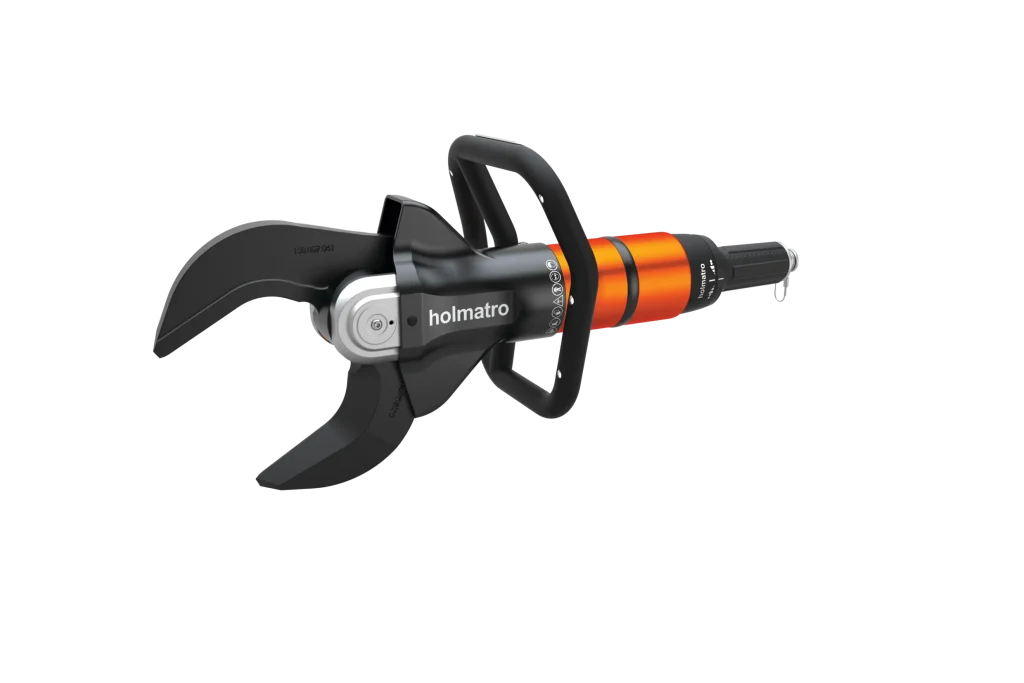

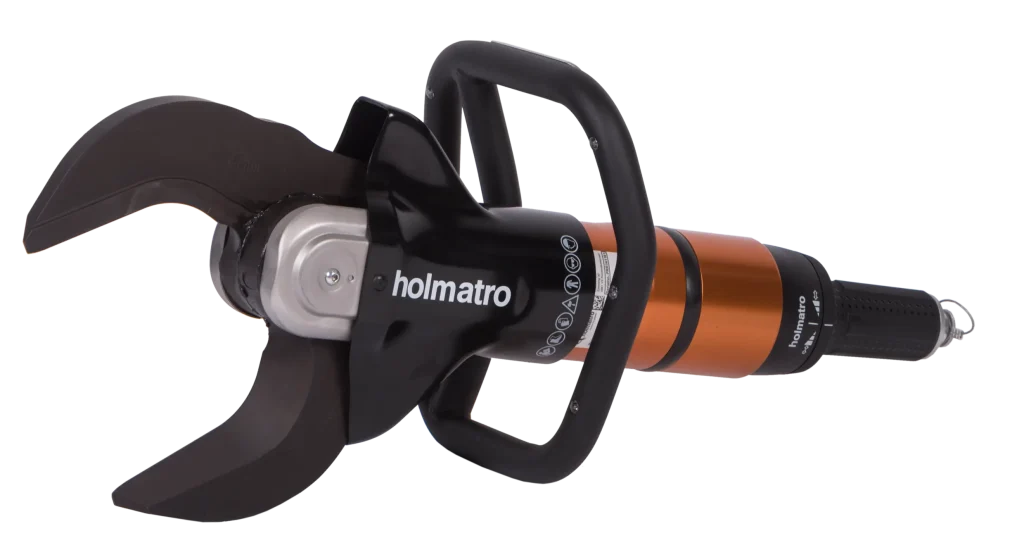

Cutter CU 5040 i
Features & benefits
- Lighter than ever thanks to new materials, component integration and intelligent design.
- Easy to carry and handle, reducing physical burden.
About the Cutter CU 5040 i
Specifications
Details
Article number
150.012.290
Basic specifications
model
CU 5040 i
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. cutting opening
170 mm
max. cutting opening
6.7 in
directives
2006/42/EC
theoretical cutting force
171754 lbf
theoretical cutting force
764 / 77.9 (kN/t)
General specifications
NCT
yes
cutter jaw
inclined
Dimensions, weight and temperature

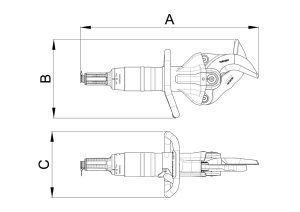

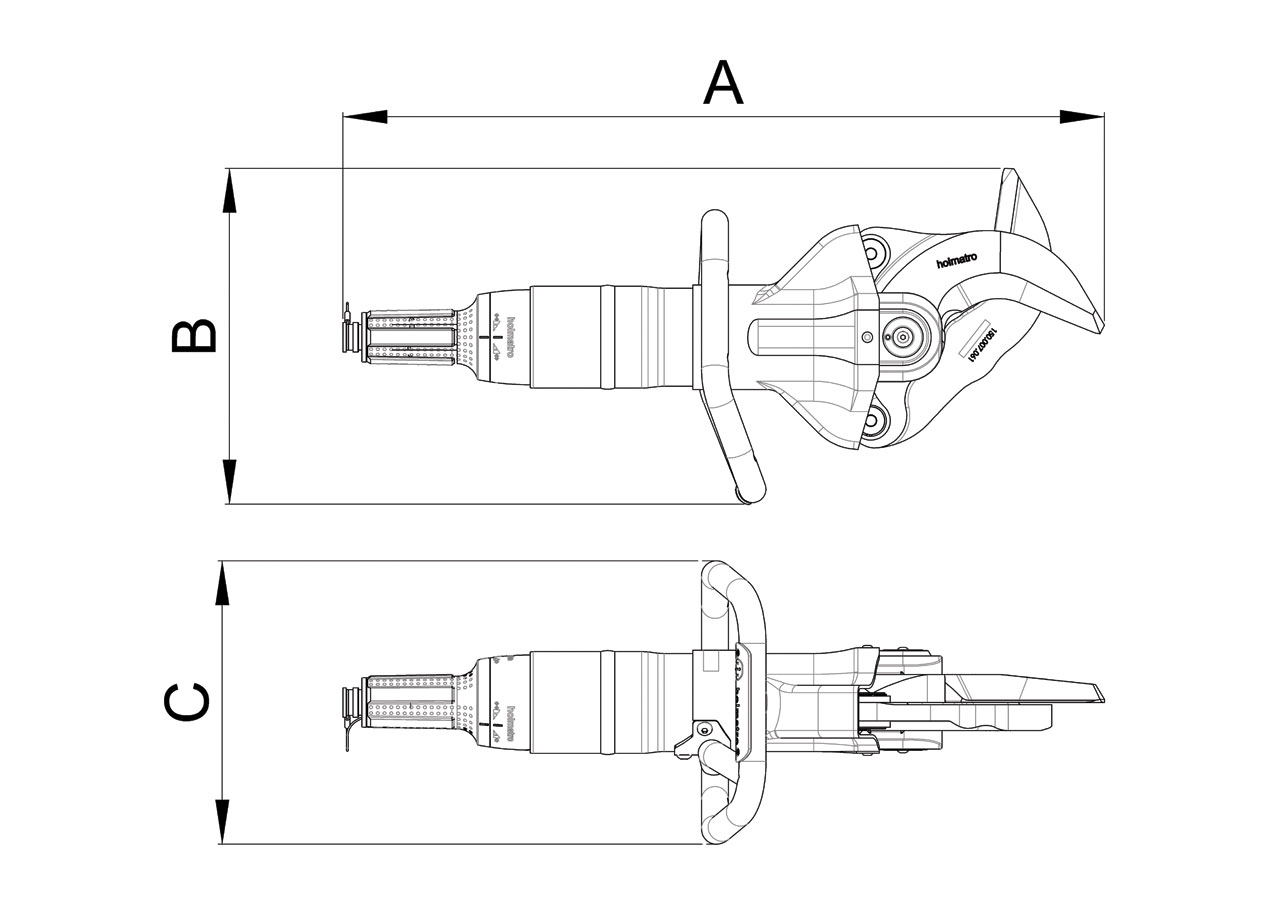

dimensions (AxBxC)
706 x 300 x 262 mm
dimensions (AxBxC)
27.8 x 11.8 x 10.3 in
weight (without hose)
13.2 kg
weight (without hose)
29.1 lb
weight, ready for use (EN13204:2025 & NFPA1960)
14.4 kg
weight, ready for use (EN13204:2025 & NFPA1960)
31.7 lb
Norms
EN 13204 classification
BC165I-13.2
NFPA 1960, cutting capacity
A7 B7 C6 D7 E8 F3
NFPA 1960 compliant
yes
EN 13204 cutting capacity
1I 2I 3I 4J 5J
EN 13204 compliant
yes
EN 13204 2025 Ed classification
CU2-165-I
Cutting performance
round bar (S235 acc. to EN 13204)
36 mm
round bar (S235 acc. to EN 13204)
1.4 in
Features
Lightweight
- Lighter than ever thanks to new materials, component integration and intelligent design.
- Easy to carry and handle, reducing physical burden.
Unique inclined cutter jaw

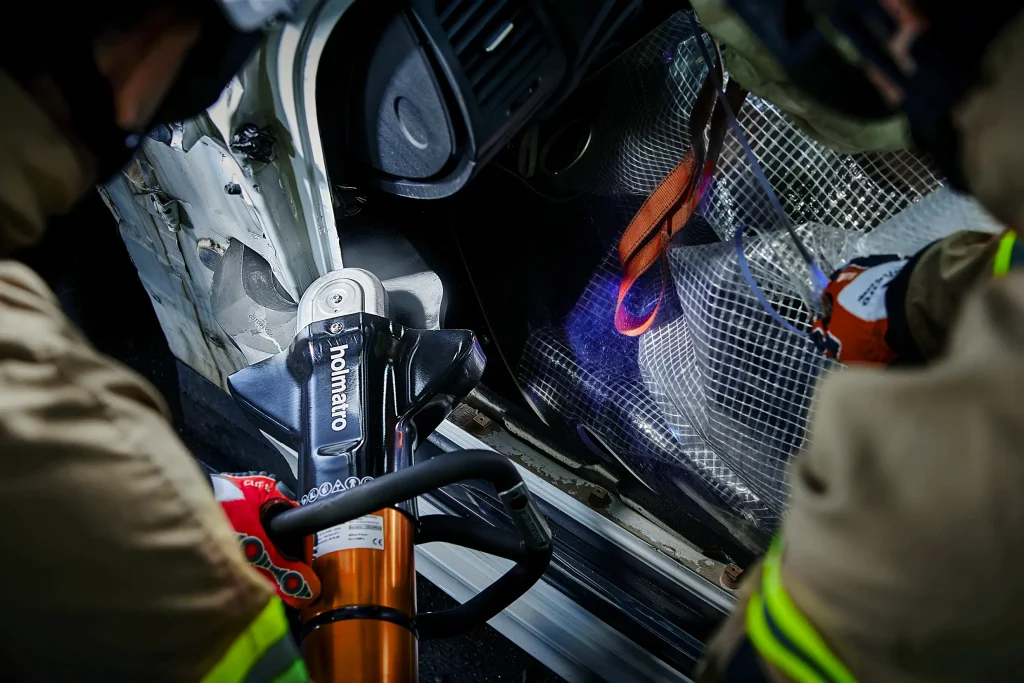

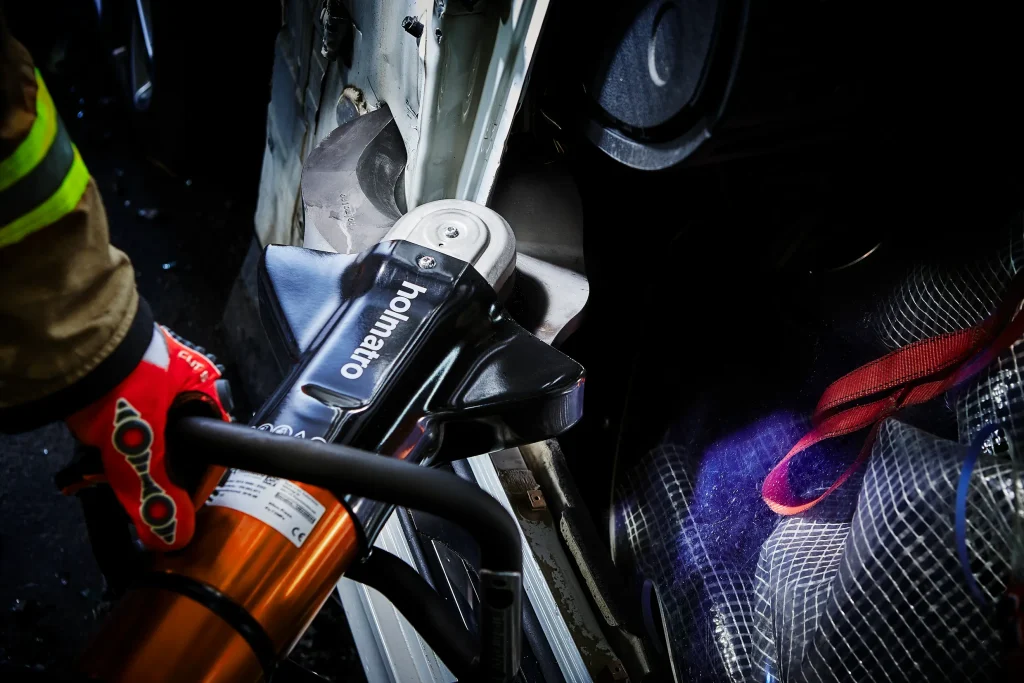

- For more ergonomic cutting above waist or head height or, conversely, low on the car. The control handle remains at waist height.
- It also reduces the effect of tool movement towards the patient, e.g. when making a relief cut in the A-pillar.
NCT cutter blades
- Our New Car Technology blades are specially designed to cut new car construction.
- Their U-shape surrounds the material and pulls it in into the cutting recess, where it is cut at the strongest point of the cutter.
- With optimized cutting edge for a long blade life and superior cutting performance.
i-Bolt
- Flat central bolt construction squeezing the blades together directly (no blade holder in between!) and more tightly. This minimizes blade separation and maximizes cutting performance.
- It also allows for better access in narrow spaces.
Ergonomic carrying handle
- New ergonomic carrying handle design increases operator comfort in various working positions.
- The Inclined Cutter has one that goes all-around the tool, enabling you to take full advantage of its benefits at all sides of the car.
Integrated LED lighting
- New LED lighting in the carrying handle: no less than six lights with a higher light output. Rescuers can start right away, both during the day and at night, without working in their own shadow.
New control handle
- Improved ergonomic design, offering better grip for optimal tool control
