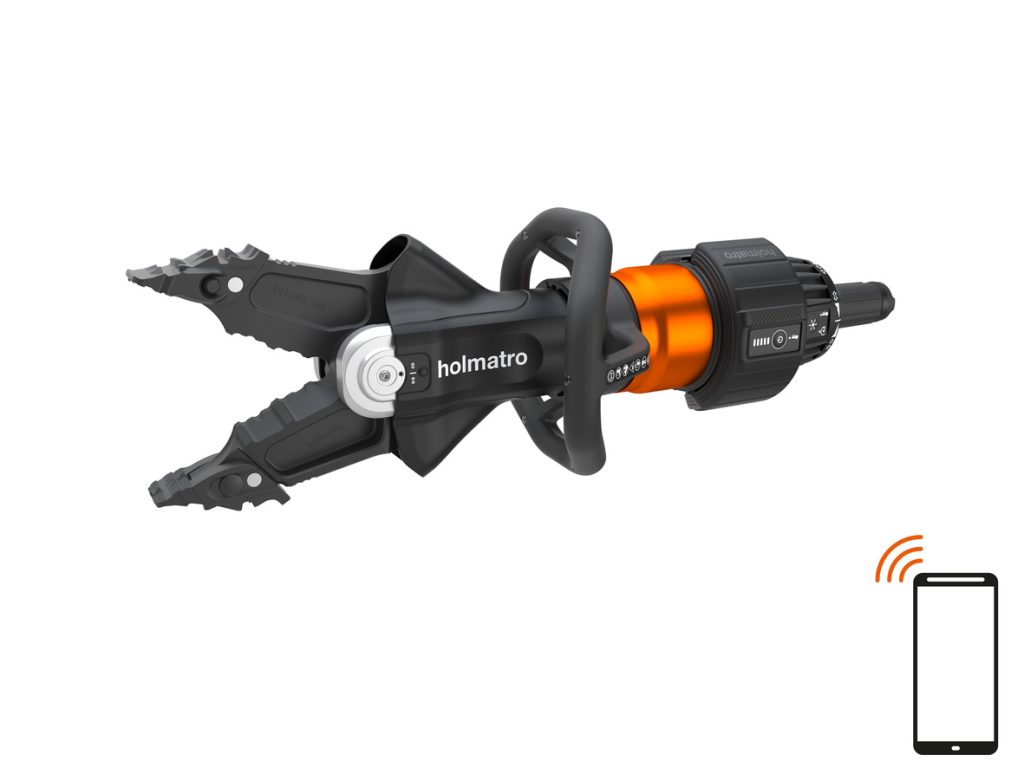

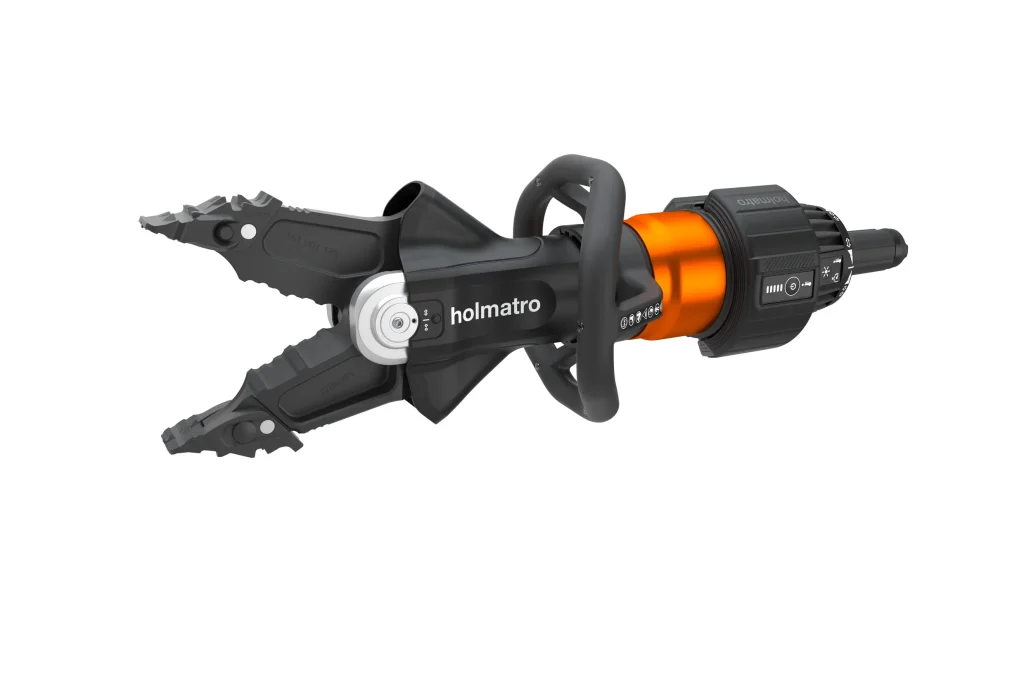

Combi Tool PCT50
Features & benefits
- Fastest combi tool on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
- Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
About the Combi Tool PCT50
Specifications
Details
Article number
159.000.225
Basic specifications
model
PCT50
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
battery included
no
connectivity, mobile app
Bluetooth
Performance
max. spreading force
418145 lbf
min. spreading force (EN 13204)
9667 lbf
spreading distance
380 mm
spreading distance
15 in
max. cutting opening
320 mm
max. cutting opening
12.6 in
max. squeezing force
19558 lbf
max. pulling force
23380 lbf
pulling distance
254 mm
pulling distance
10 in
max. spreading force
1860 / 189.7 (kN/t)
min. spreading force (EN 13204)
43 / 4.4 (kN/t)
max. squeezing force
87 / 8.9 (kN/t)
max. pulling force
104 / 10.6 (kN/t)
protection rate
IP57
directives
2006/42/EC, 2014/30/EU, 2014/53/EU
theoretical cutting force
150622 lbf
theoretical cutting force
670 / 68.3 (kN/t)
min. squeezing force (EN 13204 2025 Ed.)
16613 lbf
min. squeezing force (EN 13204 2025 Ed.)
73.9 / 7.5 (kN/t)
Dimensions, weight and temperature
weight (excl. battery)
18.9 kg
weight (excl. battery)
41.7 lb

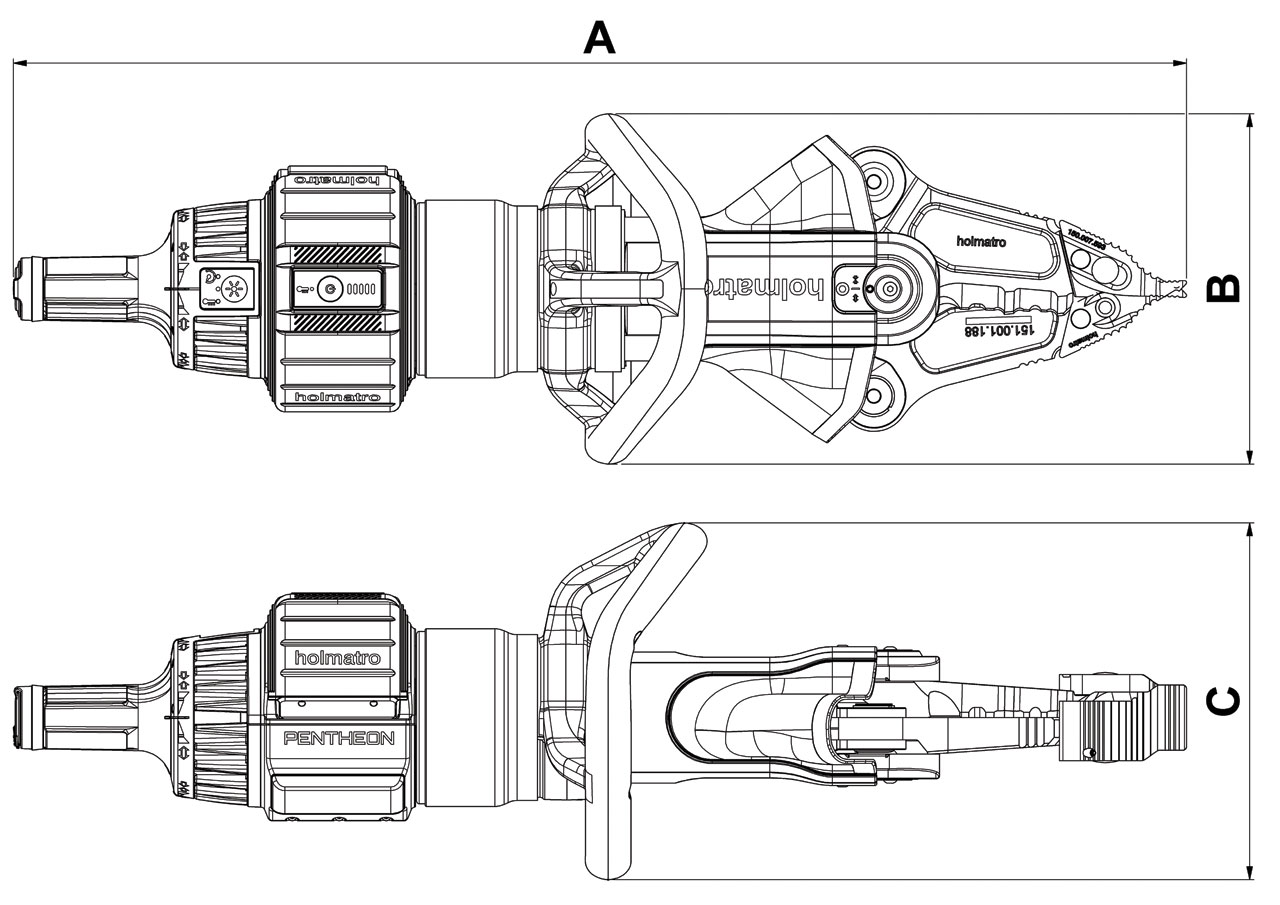

dimensions (AxBxC)
898 x 268 x 273 mm
dimensions (AxBxC)
35.4 x 10.6 x 10.7 in
weight, ready for use (incl. battery)
20.5 kg
weight, ready for use (incl. battery)
45.2 lb
Norms
EN 13204 classification
CK43/380J-20.5
NFPA 1960, cutting capacity
A7 B8 C8 D8 E8 F3
NFPA 1960 compliant
yes
EN 13204 cutting capacity
1J 2J 3K 4K 5K
EN 13204 compliant
yes
NFPA 1960, HPF
23380 lbf
NFPA 1960, HPF
104 / 10.6 (kN/t)
NFPA 1960, HSF
9554 lbf
NFPA 1960, HSF
42.5 / 4.3 (kN/t)
NFPA 1960, LPF
17917 lbf
NFPA 1960, LPF
79.7 / 8.1 (kN/t)
NFPA 1960, LSF
7396 lbf
NFPA 1960, LSF
32.9 / 3.4 (kN/t)
EN 13204 2025 Ed classification
F-CT3-43/380-J
Cutting performance
round bar (S235 acc. to EN 13204)
36 mm
round bar (S235 acc. to EN 13204)
1.4 in
Features
Unparalleled speed for faster rescue operations
- Fastest combi tool on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
- Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
Ultimate speed control for more controlled tool handling
- Two-speed inline control handle – Switch between high-speed and low-speed and keep perfect control at all times
Guaranteed maximum power during a tool’s entire lifespan
- Electronic motor control and pressure monitoring – Constant lifetime performance for every Pentheon tool
Battery management made easy
- Charge batteries directly on the tools with the On-Tool Charging System
- Priority charging for on-tool batteries over batteries on a separate charger
- Charge up to six batteries automatically – Connect up to three chargers to one single outlet
- Holmatro battery – Power Pentheon tools as well as OmniLock struts (patented) and other upcoming Holmatro products
Superb ergonomics for effortless handling
- Easy tool operation on all sides of a vehicle – Inline control handle with 360° access
- Hold every tool in any position – 360° carrying handle made of tough, damage-proof material
Continue your mission under all conditions
- Flawless performance under water, at high and low outdoor temperatures and in rain and snow
- Easier communication during rescue operations – A new and improved drive system ensures tool operation at a lower sound level
- Automatic LED lights in the carrying handle, powered by the main battery. The lights can also be operated manually
Realtime tool insights to adapt and change tactics
- Connect every tool to your tablet or phone with Bluetooth®
- Easy to use and intuitive MyHolmatro app
- Real-time diagnostics during every operation – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode
Automatically keep your tools in perfect condition
- Quickly and easily perform an automated Pentheon Self Check with the MyHolmatro app – Automatically check the drive system, speed and pressure, battery firmware and battery state of health
Effortless tool maintenance
- Premium tool service thanks to the Holmatro Inspection Procedures (HIP) – An extensive software program for Authorized Holmatro (Dealer) Service Technicians
No material is pushed out during cutting
- Two grip teeth at the inside of each blade prevent material from being pushed out when cutting
Cut material without crushing it
- Maximum cutting performance – Easily remove the tips from the combi tool blades to cut material without crushing it
