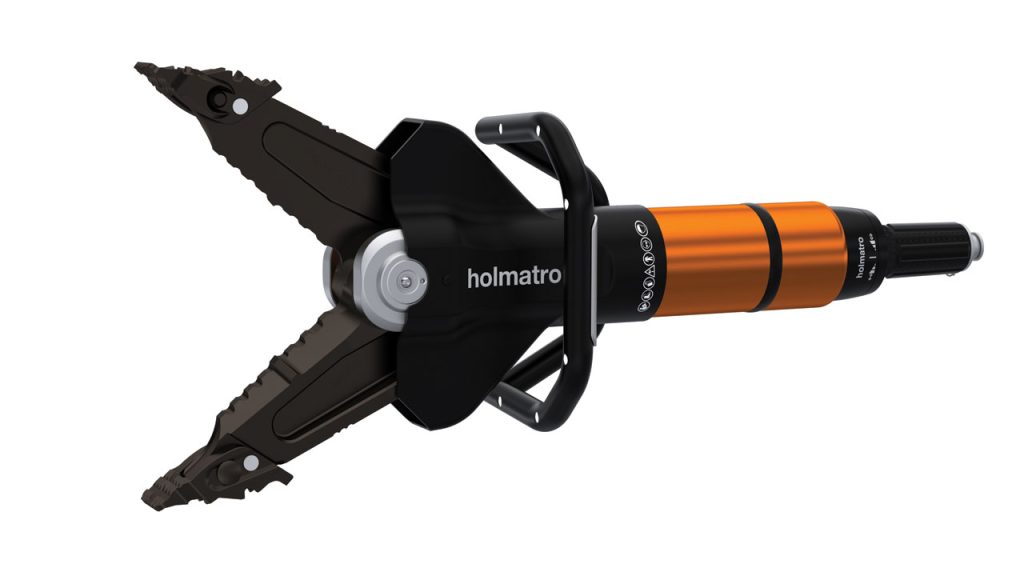

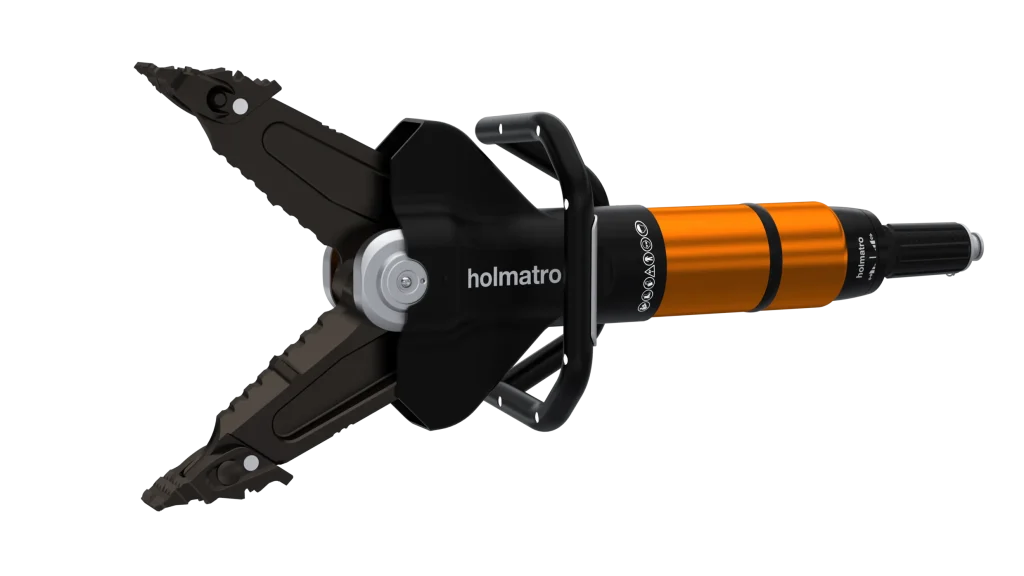

Combi Tool CT 5160
Features & benefits
- Suitable for a variety of operations
- To create all the space you need
About the Combi Tool CT 5160
Specifications
Details
Article number
150.012.330
Basic specifications
model
CT 5160
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. spreading force
418145 lbf
min. spreading force (EN 13204)
10004 lbf
spreading distance
468 mm
spreading distance
18.4 in
max. cutting opening
394 mm
max. cutting opening
15.5 in
max. squeezing force
19761 lbf
max. pulling force
23605 lbf
pulling distance
342 mm
pulling distance
13.5 in
max. spreading force
1860 / 189.7 (kN/t)
min. spreading force (EN 13204)
44.5 / 4.5 (kN/t)
max. squeezing force
87.9 / 9 (kN/t)
max. pulling force
105 / 10.7 (kN/t)
directives
2006/42/EC
theoretical cutting force
208848 lbf
theoretical cutting force
929 / 94.7 (kN/t)
min. squeezing force (EN 13204 2025 Ed.)
16411 lbf
min. squeezing force (EN 13204 2025 Ed.)
73 / 7.4 (kN/t)
Dimensions, weight and temperature

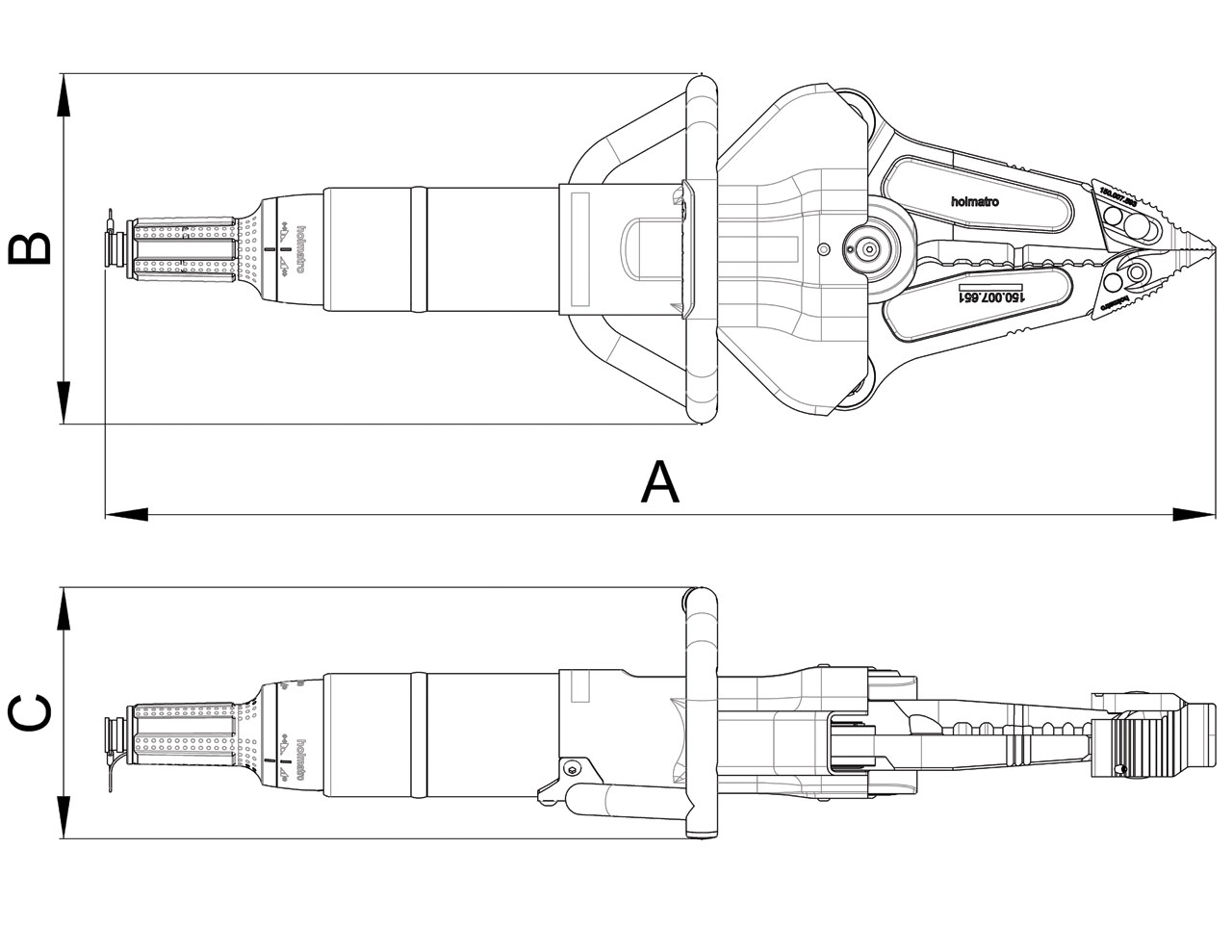

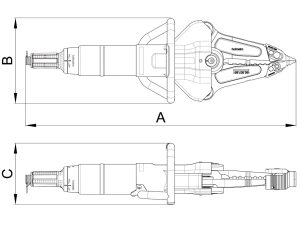

dimensions (AxBxC)
885 x 279 x 201 mm
dimensions (AxBxC)
34.8 x 11 x 7.9 in
weight (without hose)
17.7 kg
weight (without hose)
39 lb
weight, ready for use (EN13204:2025 & NFPA1960)
18.9 kg
weight, ready for use (EN13204:2025 & NFPA1960)
41.7 lb
Norms
EN 13204 classification
CK45/468J-17.7
NFPA 1960, cutting capacity
A8 B9 C8 D9 E9 F4
NFPA 1960 compliant
yes
EN 13204 cutting capacity
1J 2K 3K 4K 5K
EN 13204 compliant
yes
NFPA 1960, HPF
23605 lbf
NFPA 1960, HPF
105 / 10.7 (kN/t)
NFPA 1960, HSF
10589 lbf
NFPA 1960, HSF
47.1 / 4.8 (kN/t)
NFPA 1960, LPF
19423 lbf
NFPA 1960, LPF
86.4 / 8.8 (kN/t)
NFPA 1960, LSF
8813 lbf
NFPA 1960, LSF
39.2 / 4 (kN/t)
EN 13204 2025 Ed classification
CT3-45/468-J
Cutting performance
round bar (S235 acc. to EN 13204)
40 mm
round bar (S235 acc. to EN 13204)
1.6 in
Features
Large spreading distance
- Suitable for a variety of operations
- To create all the space you need
Big cutting opening
- Offers great operational flexibility
- Allows you to cut wider materials
Removable spreading tips
- To finish a cut without crushing materials between the tips
- Designed in one piece to prevent losing parts
- Quick single-handed removal, even with gloves
- With reflective markings for optimal visibility in the dark
Unique grip tooth on both blades
- For extra bite when cutting
- To prevent wider materials from being pushed out of the blades

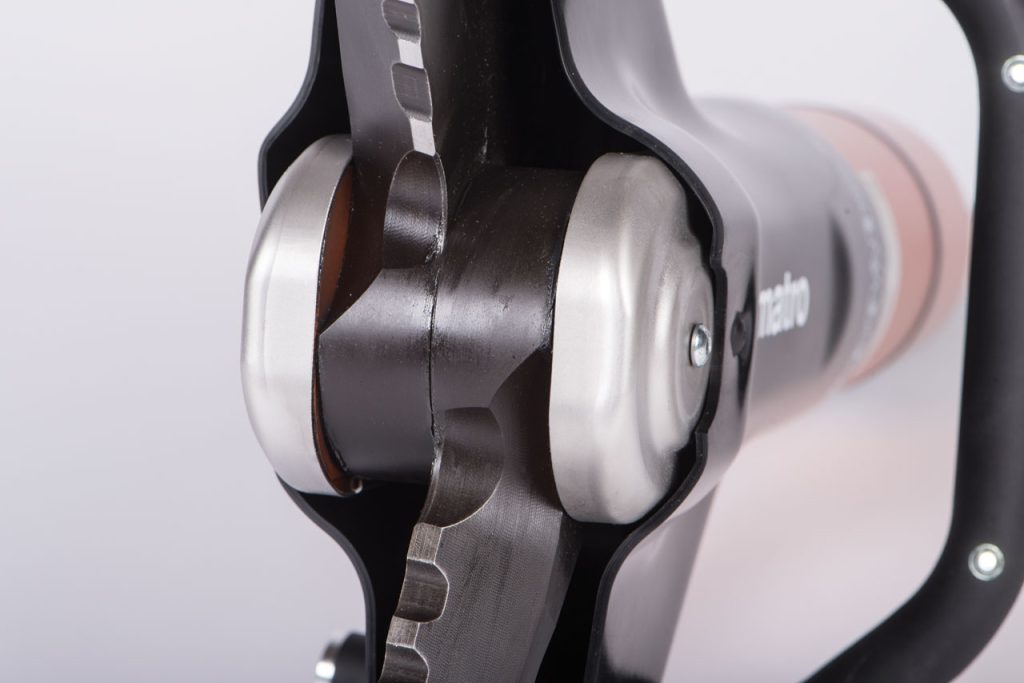

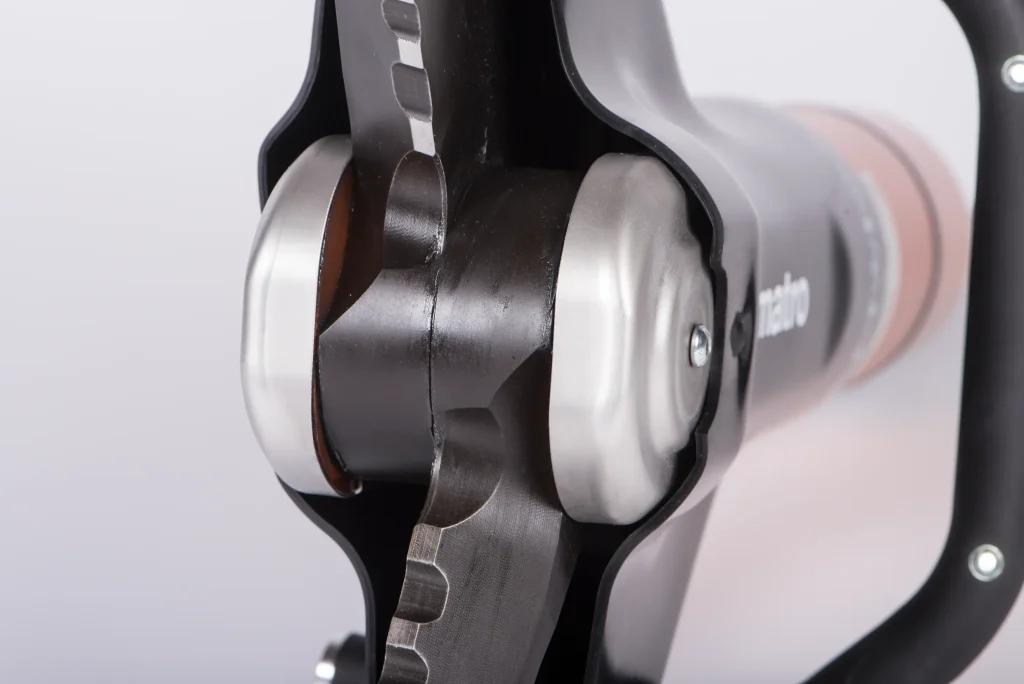

i-Bolt
- Flat central bolt construction squeezing the blades together directly and more tightly
- To minimize blade separation and maximize cutting performance
Ergonomic carrying handle
- Optimized ergonomic carrying handle design for increased operator comfort in various working positions

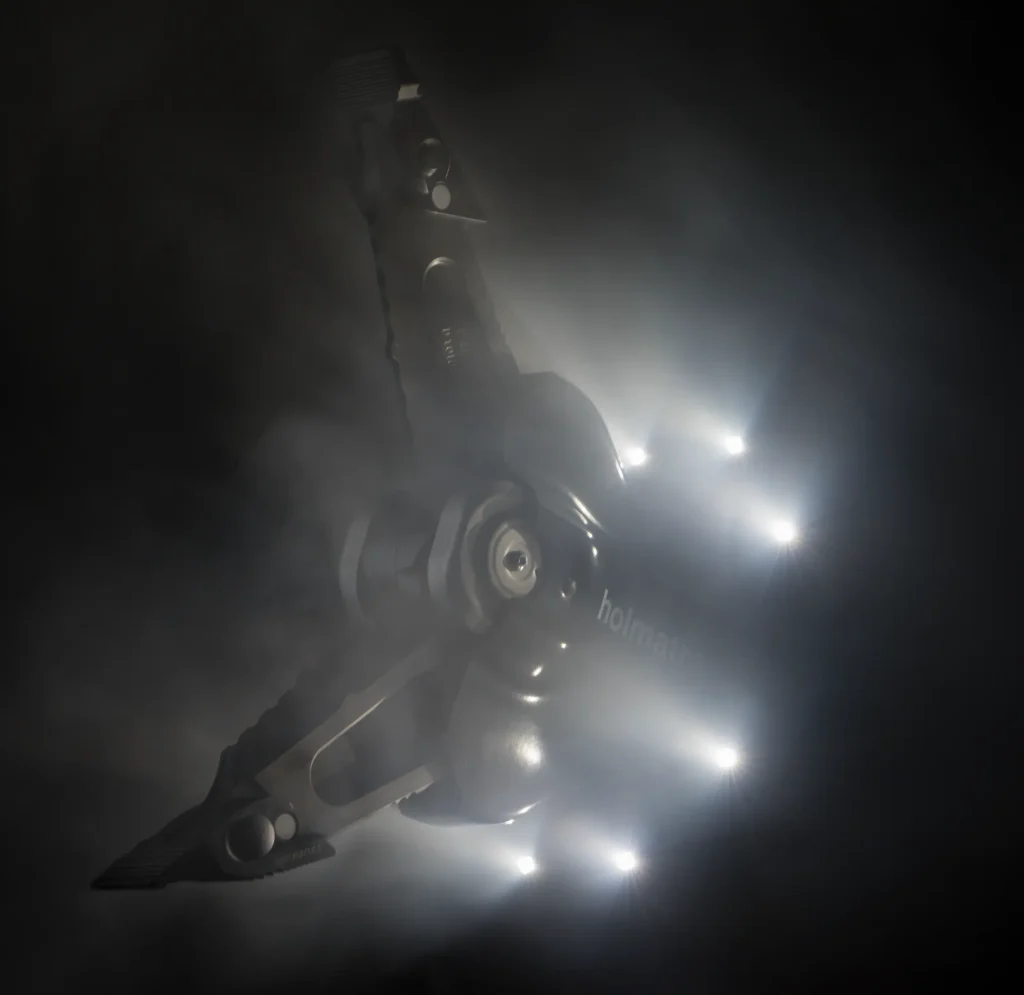

Integrated LED lighting
- Six high-output LED lights in the carrying handle always ensure a well-lit working area
- Start right away, night and day, without being hindered by your own shadow

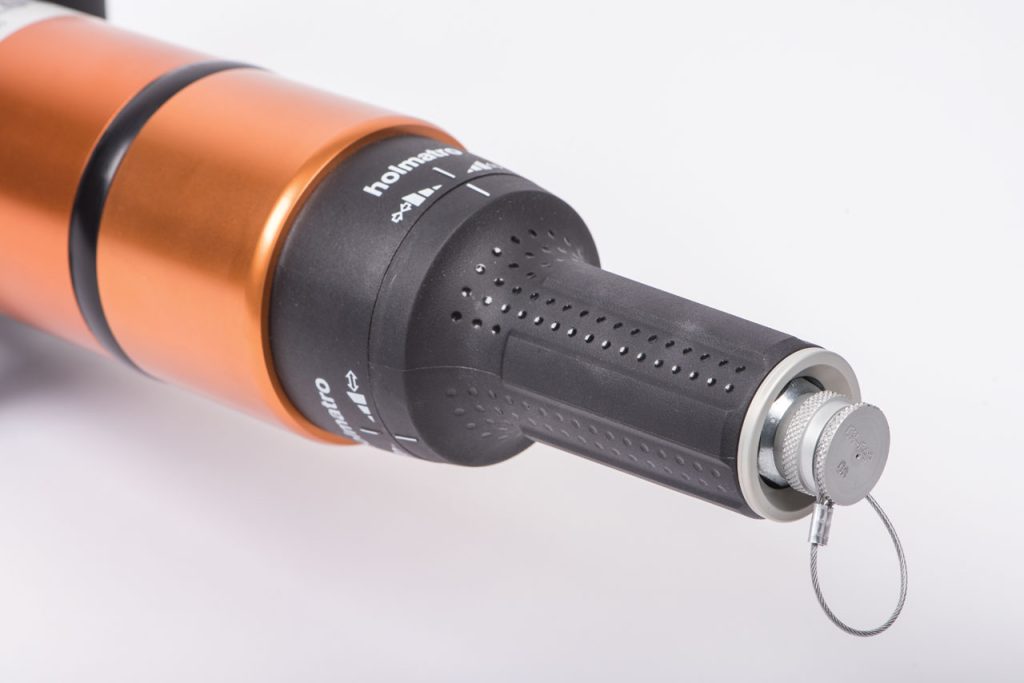

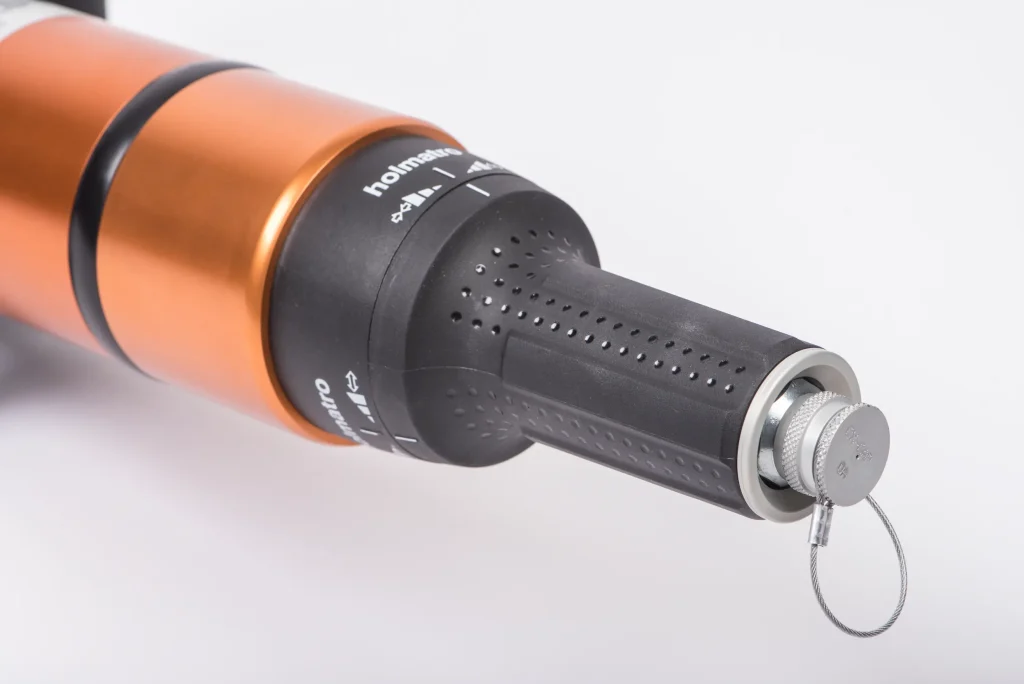

New control handle
- Improved ergonomic design, offering better grip for optimal tool control
