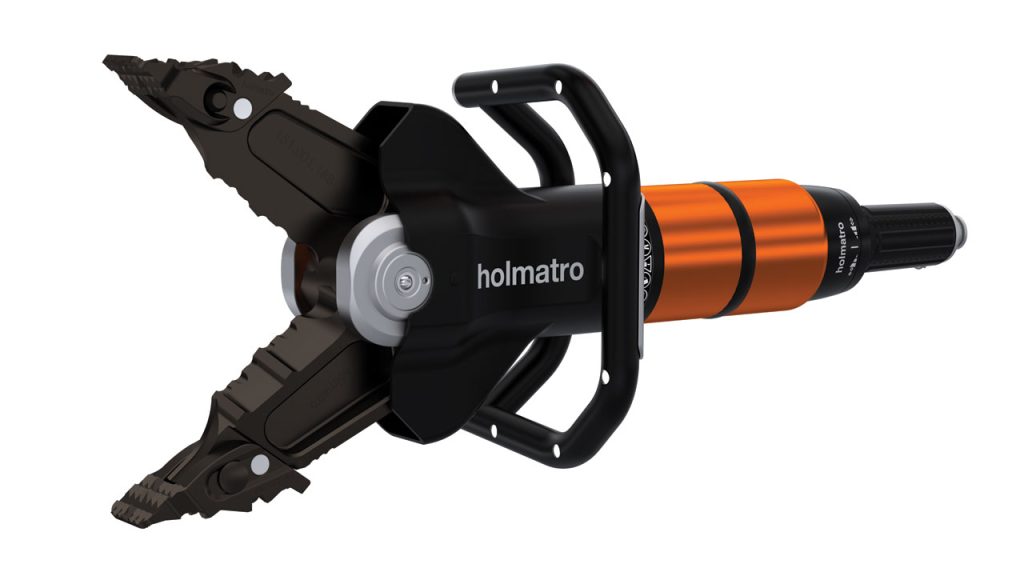

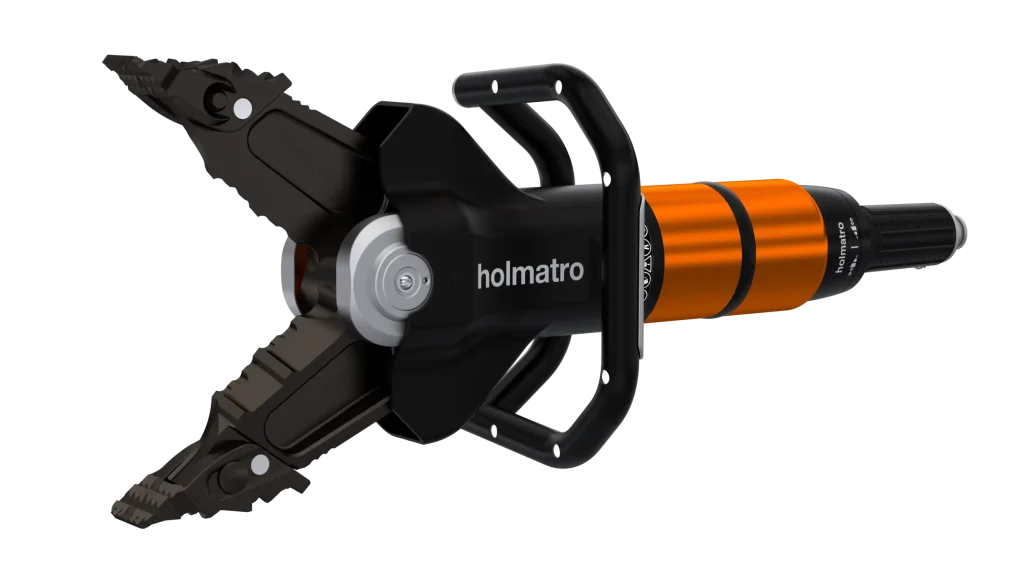

Combi Tool CT 5150
Features & benefits
- Ability to deliver high forces at a relatively low tool weight
About the Combi Tool CT 5150
Specifications
Details
Article number
151.001.058
Basic specifications
model
CT 5150
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. spreading force
418145 lbf
min. spreading force (EN 13204)
9667 lbf
spreading distance
380 mm
spreading distance
15 in
max. cutting opening
320 mm
max. cutting opening
12.6 in
max. squeezing force
19558 lbf
max. pulling force
23380 lbf
pulling distance
254 mm
pulling distance
10 in
max. spreading force
1860 / 189.7 (kN/t)
min. spreading force (EN 13204)
43 / 4.4 (kN/t)
max. squeezing force
87 / 8.9 (kN/t)
max. pulling force
104 / 10.6 (kN/t)
directives
2006/42/EC
theoretical cutting force
150622 lbf
theoretical cutting force
670 / 68.3 (kN/t)
min. squeezing force (EN 13204 2025 Ed.)
16636 lbf
min. squeezing force (EN 13204 2025 Ed.)
74 / 7.5 (kN/t)
Dimensions, weight and temperature

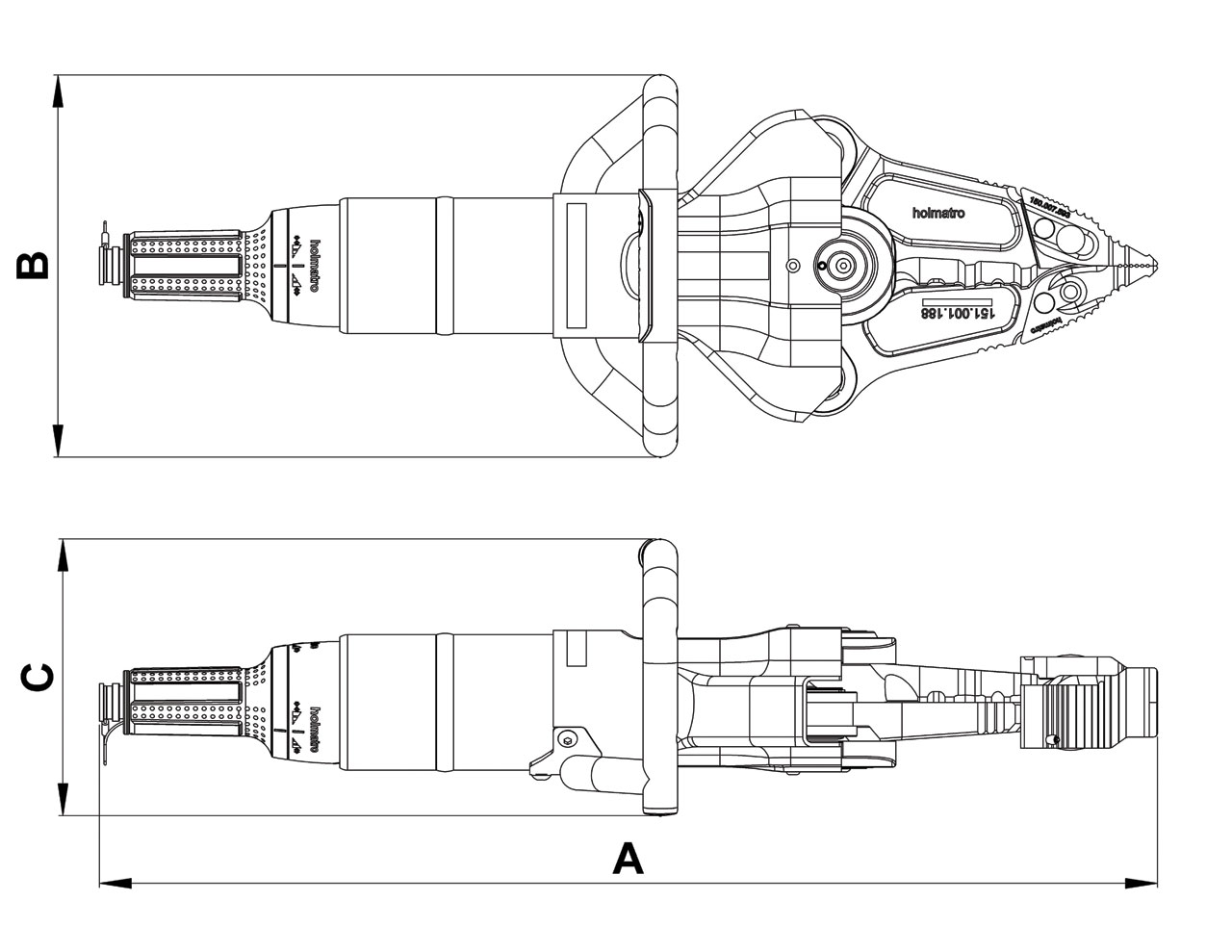

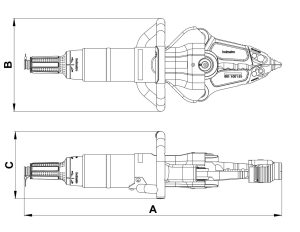

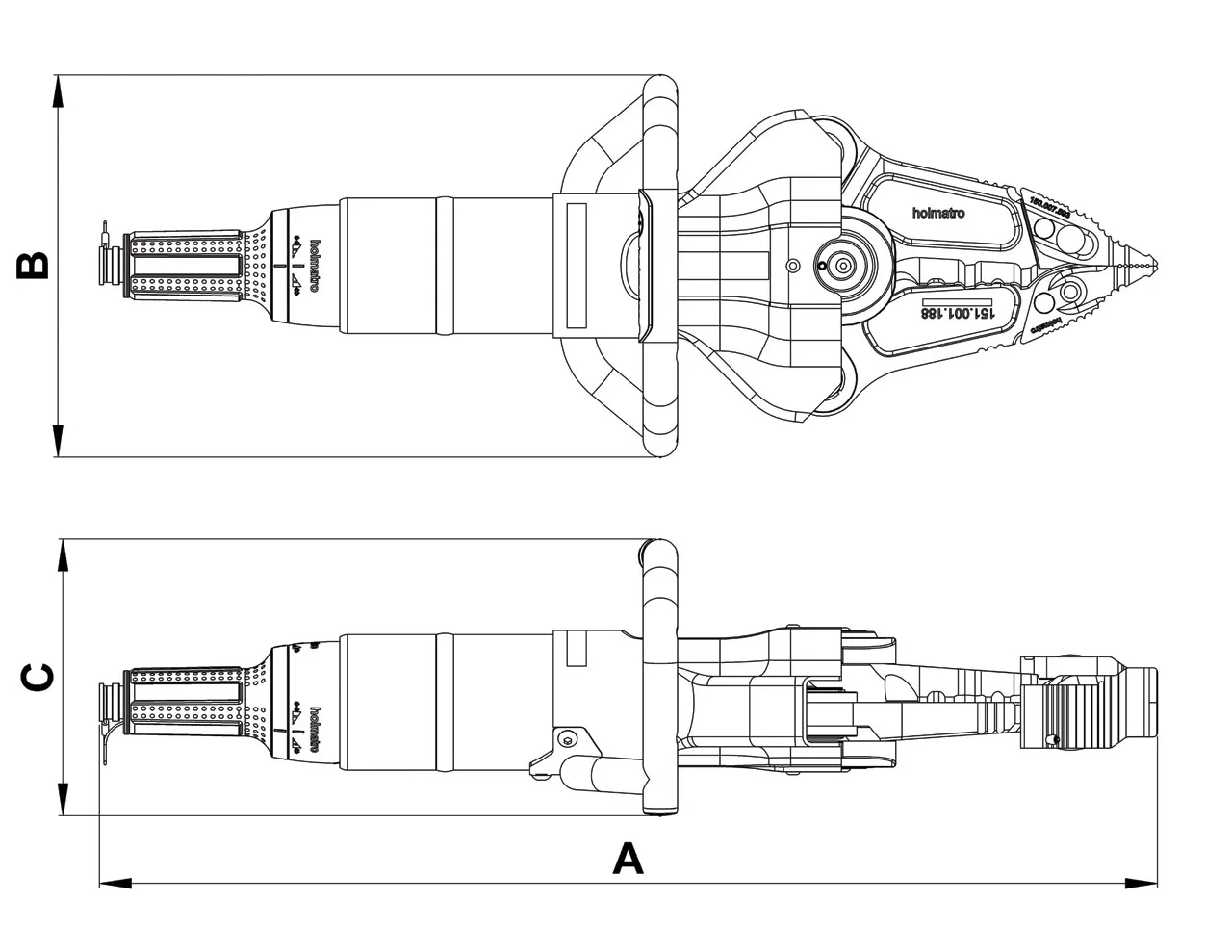

dimensions (AxBxC)
767 x 277 x 202 mm
dimensions (AxBxC)
30.2 x 10.9 x 8 in
weight (without hose)
14.9 kg
weight (without hose)
32.8 lb
weight, ready for use (EN13204:2025 & NFPA1960)
16.1 kg
weight, ready for use (EN13204:2025 & NFPA1960)
35.5 lb
Norms
EN 13204 classification
CK43/380-J-14.9
NFPA 1960, cutting capacity
A7 B8 C8 D8 E8 F3
NFPA 1960 compliant
yes
EN 13204 cutting capacity
1J 2J 3K 4K 5K
EN 13204 compliant
yes
NFPA 1960, HPF
23380 lbf
NFPA 1960, HPF
104 / 10.6 (kN/t)
NFPA 1960, HSF
9554 lbf
NFPA 1960, HSF
42.5 / 4.3 (kN/t)
NFPA 1960, LPF
17917 lbf
NFPA 1960, LPF
79.7 / 8.1 (kN/t)
NFPA 1960, LSF
7396 lbf
NFPA 1960, LSF
32.9 / 3.4 (kN/t)
EN 13204 2025 Ed classification
CT3-43/380-J
Cutting performance
round bar (S235 acc. to EN 13204)
36 mm
round bar (S235 acc. to EN 13204)
1.4 in
Features
Optimal performance to weight ratio
- Ability to deliver high forces at a relatively low tool weight
Removable spreading tips
- To finish a cut without crushing materials between the tips
- Designed in one piece to prevent losing parts
- Quick single-handed removal, even with gloves
- With reflective markings for optimal visibility in the dark

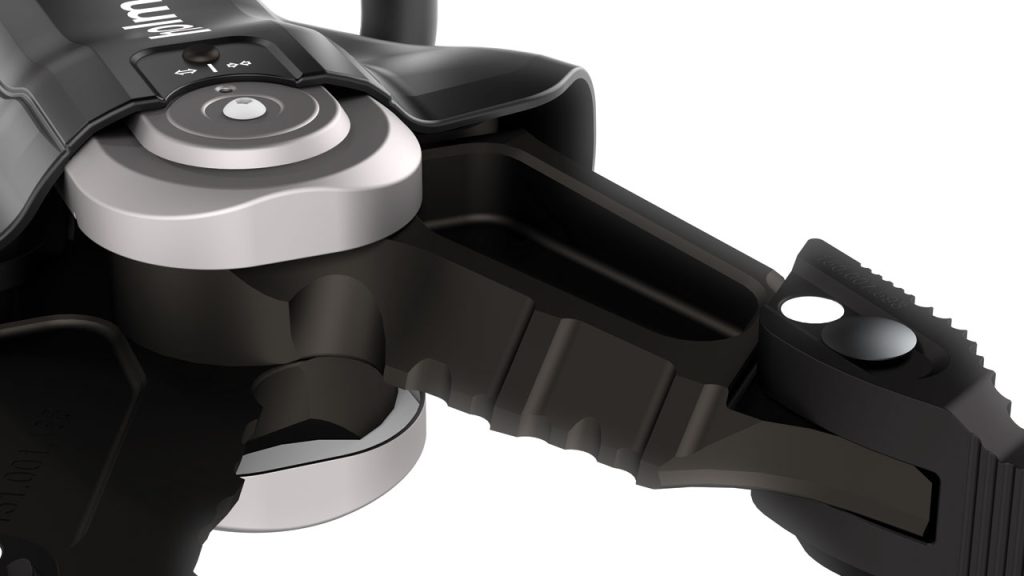

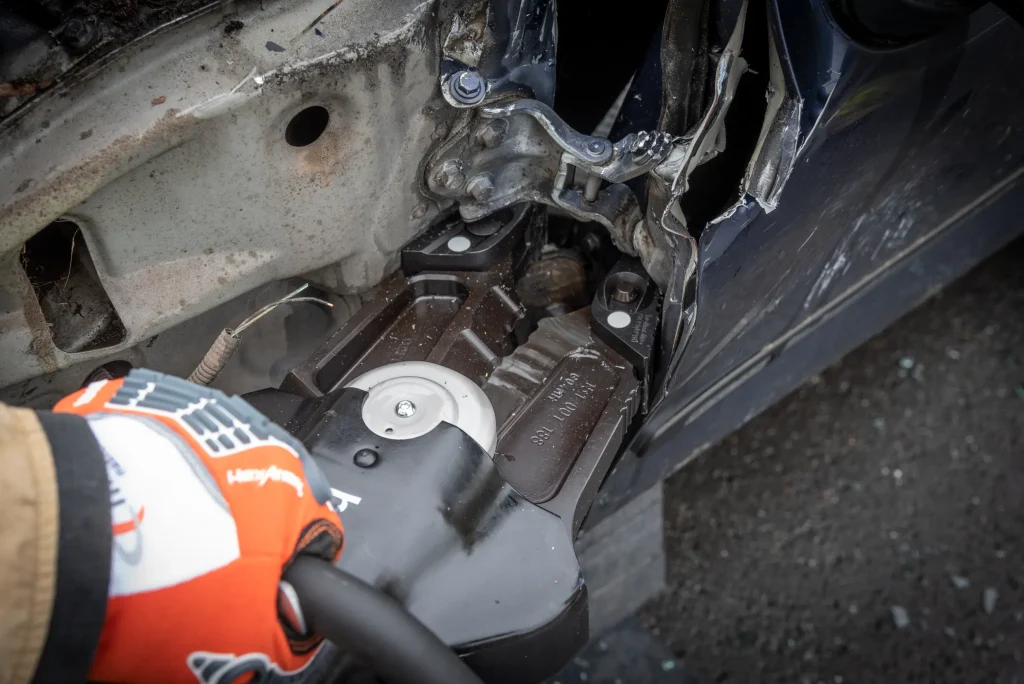

Unique grip teeth on both blades
- For extra bite when cutting
- To prevent wider materials from being pushed out of the blades
i-Bolt
- Flat central bolt construction squeezing the blades together directly and more tightly
- To minimize blade separation and maximize cutting performance
Ergonomic carrying handle
- Optimized ergonomic carrying handle design for increased operator comfort in various working positions

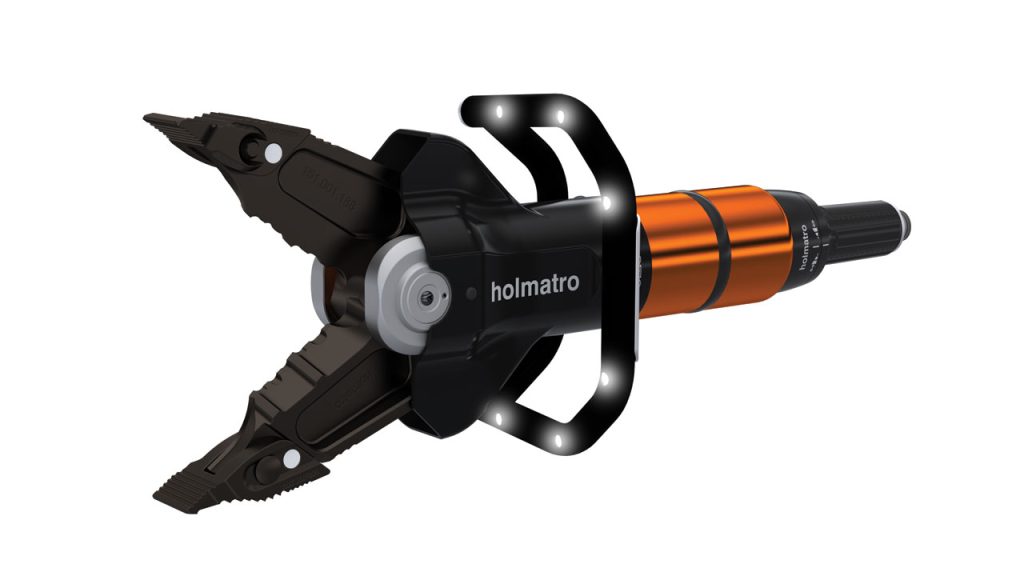

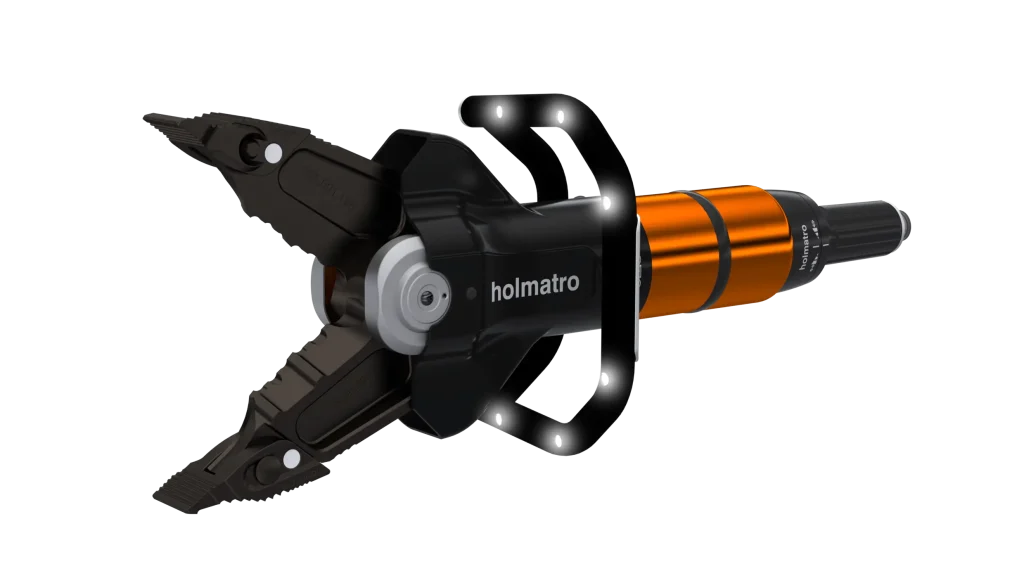

Integrated LED lighting
- Six high-output LED lights in the carrying handle always ensure a well-lit working area
- Start right away, night and day, without being hindered by your own shadow
New control handle
- Improved ergonomic design, offering better grip for optimal tool control
