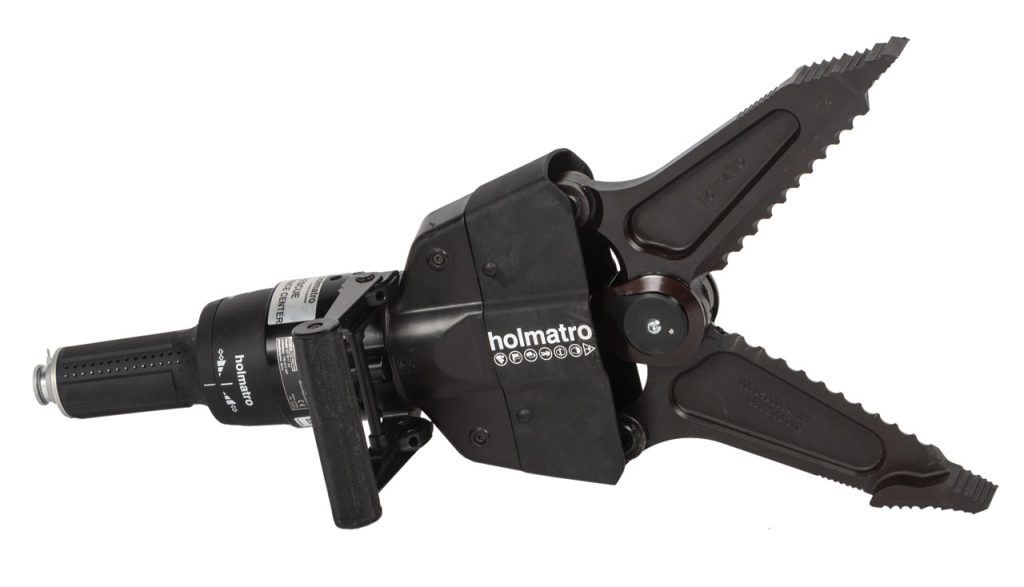

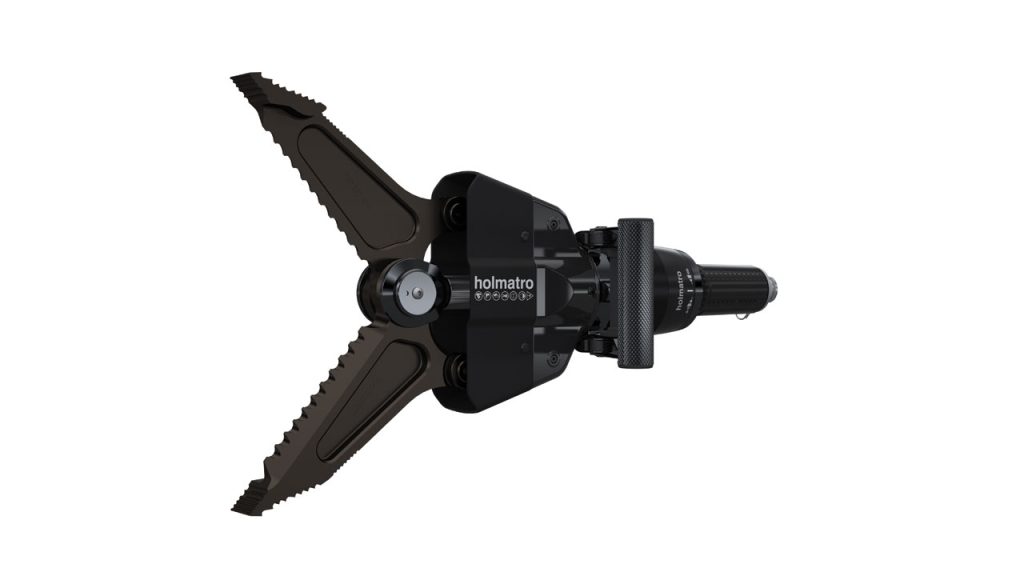

Combi Tool CT 5114 ST
Features & benefits
- Easy to add to your existing kit
- Easy to carry, transport and store
About the Combi Tool CT 5114 ST
Specifications
Details
Article number
151.000.518
Basic specifications
model
CT 5114 ST
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. spreading force
303492 lbf
min. spreading force (EN 13204)
7419 lbf
spreading distance
362 mm
spreading distance
14.3 in
max. cutting opening
277 mm
max. cutting opening
10.9 in
max. squeezing force
7644 lbf
max. spreading force
1350 / 137.7 (kN/t)
min. spreading force (EN 13204)
33 / 3.4 (kN/t)
max. squeezing force
34 / 3.5 (kN/t)
directives
2006/42/EC
theoretical cutting force
60249 lbf
theoretical cutting force
268 / 27.3 (kN/t)
min. squeezing force (EN 13204 2025 Ed.)
5620 lbf
min. squeezing force (EN 13204 2025 Ed.)
25 / 2.5 (kN/t)
Dimensions, weight and temperature

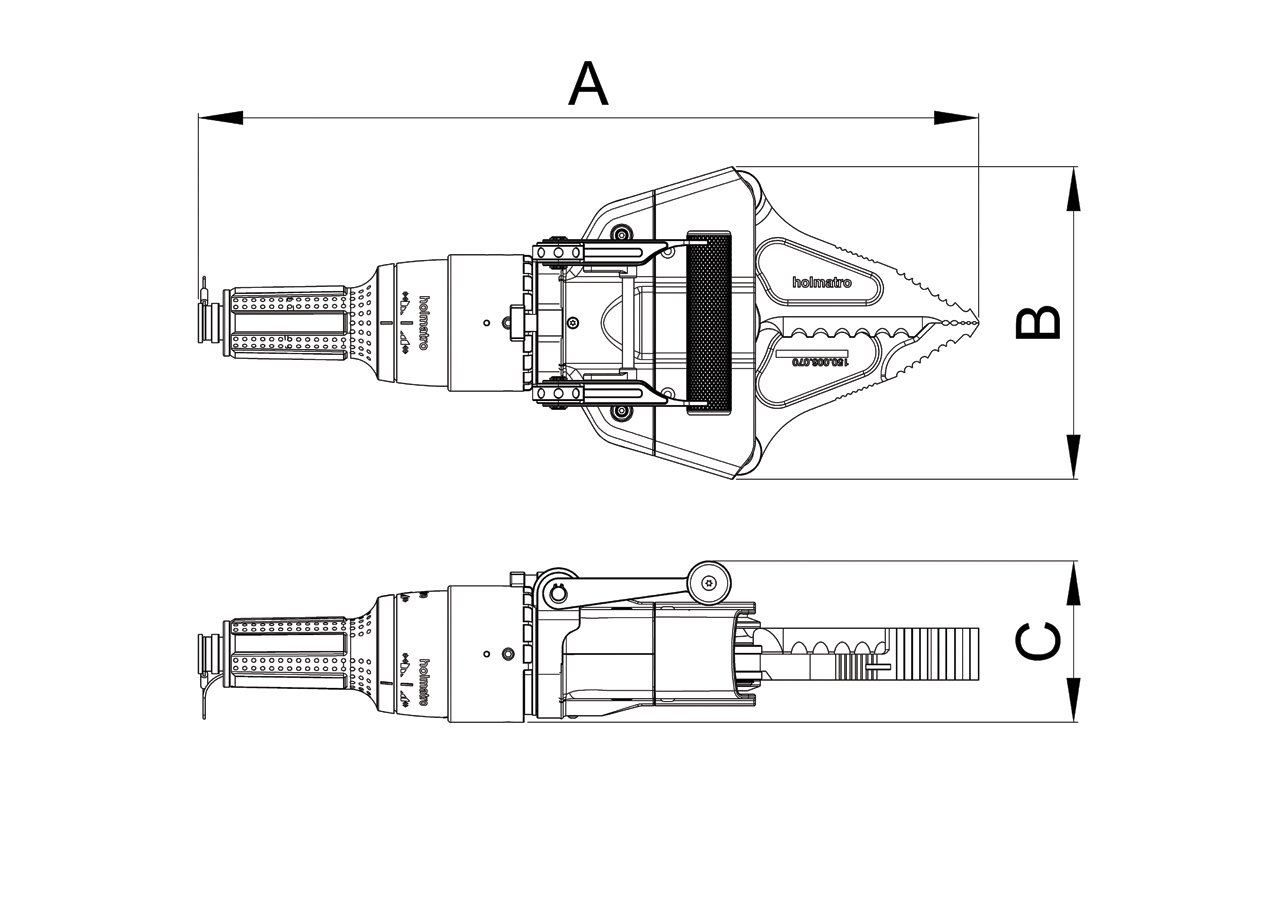

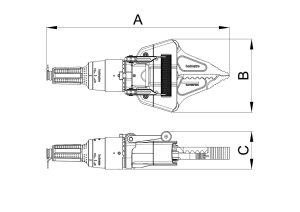

dimensions (AxBxC)
598 x 217 x 115 mm
dimensions (AxBxC)
23.5 x 8.5 x 4.5 in
weight (without hose)
8.4 kg
weight (without hose)
18.5 lb
weight, ready for use (EN13204:2025 & NFPA1960)
9.6 kg
weight, ready for use (EN13204:2025 & NFPA1960)
21.2 lb
Norms
EN 13204 classification
BK33/362-E-8.4
NFPA 1960, cutting capacity
A5 B5 C5 D6 E4 F3
NFPA 1960 compliant
yes
EN 13204 cutting capacity
1E 2E 3E 4E 5E
EN 13204 compliant
yes
NFPA 1960, HSF
8992 lbf
NFPA 1960, HSF
40 / 4.1 (kN/t)
NFPA 1960, LSF
6744 lbf
NFPA 1960, LSF
30 / 3.1 (kN/t)
EN 13204 2025 Ed classification
CT3-33/362-E
Cutting performance
round bar (S235 acc. to EN 13204)
24 mm
round bar (S235 acc. to EN 13204)
0.9 in
Features
Extremely compact & ultra-lightweight
- Easy to add to your existing kit
- Easy to carry, transport and store
- Carrying handle 90° foldable for extra compactness
Optimal performance to weight ratio
- Very high spreading force and large spreading distance compared to size and weight
- High cutting force and large cutting opening compared to size and weight
Multifunctional

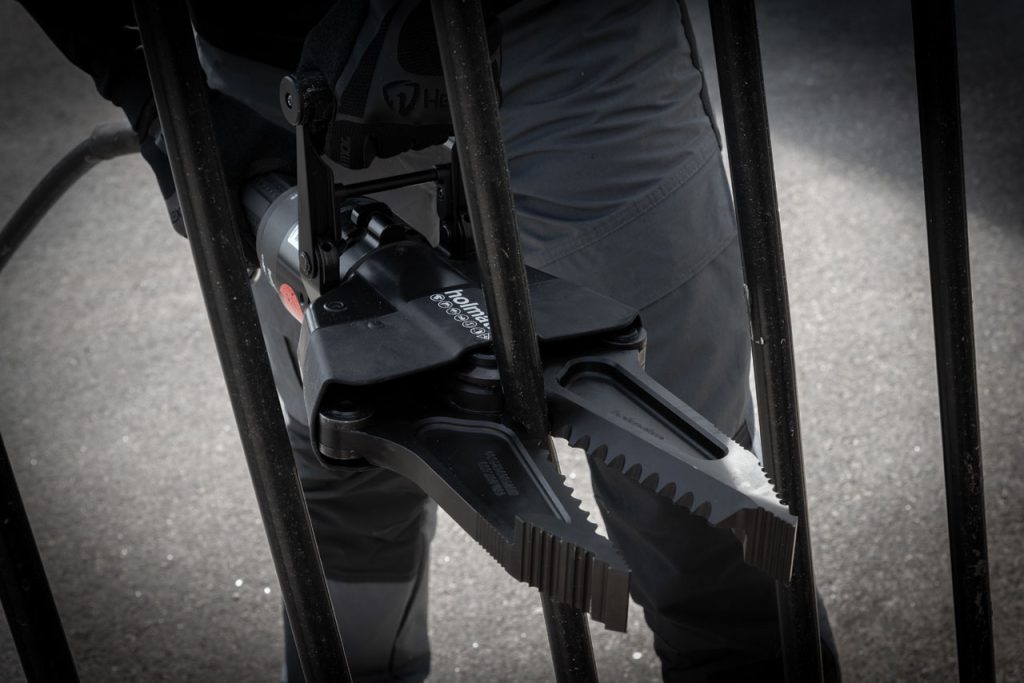

- Suitable for both cutting and spreading
- Suitable for dive operations / under water use

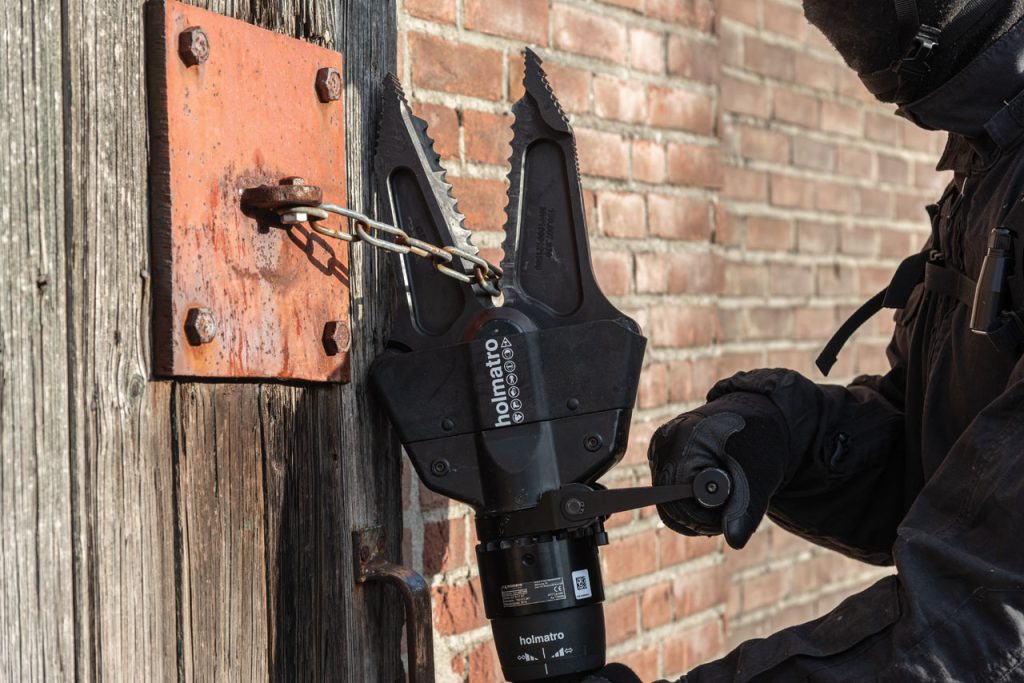

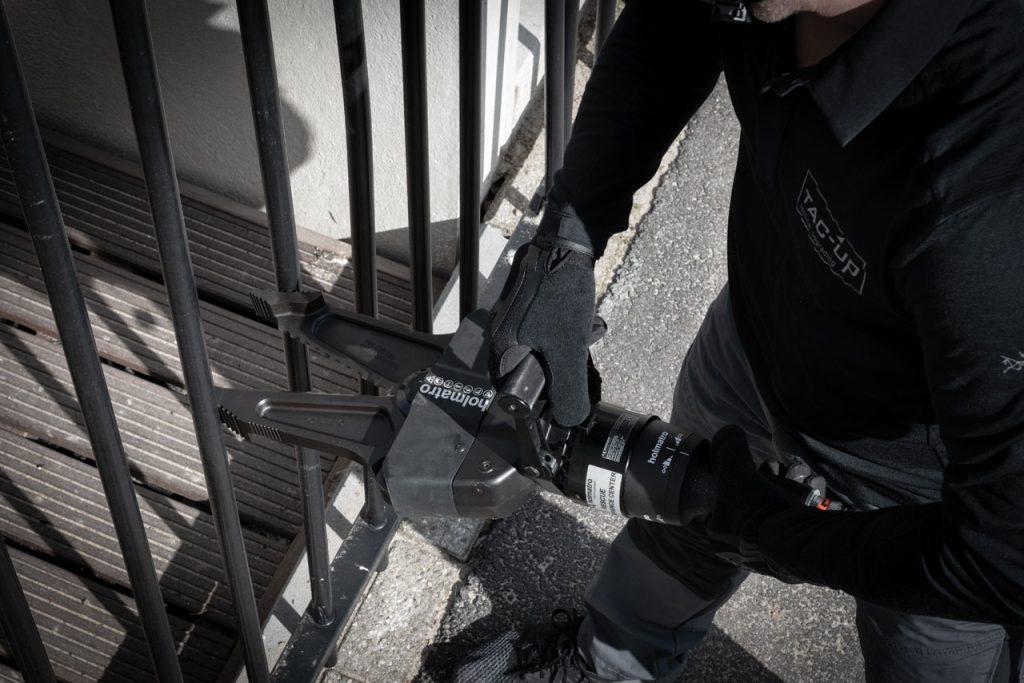

- Suitable for a variety of applications, ranging from forcible entry to extrication of persons trapped

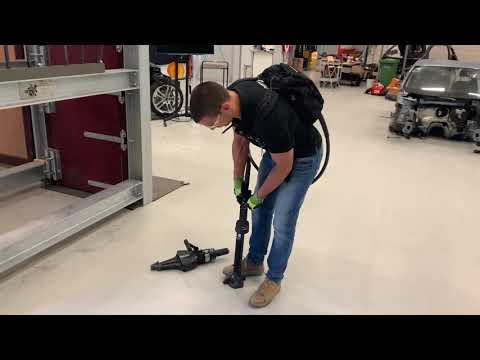

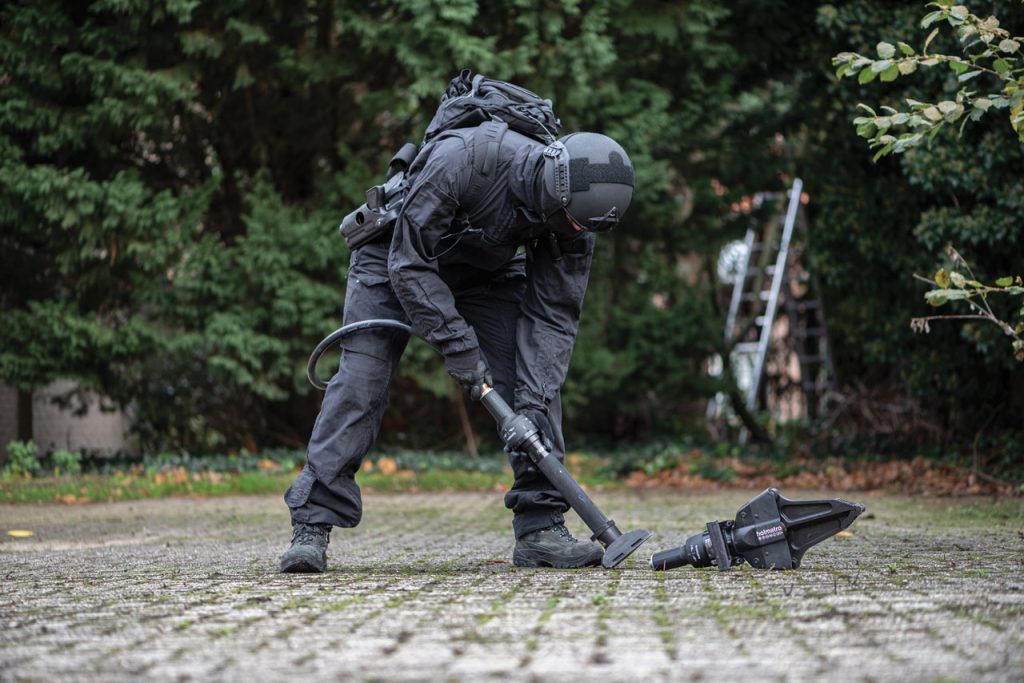

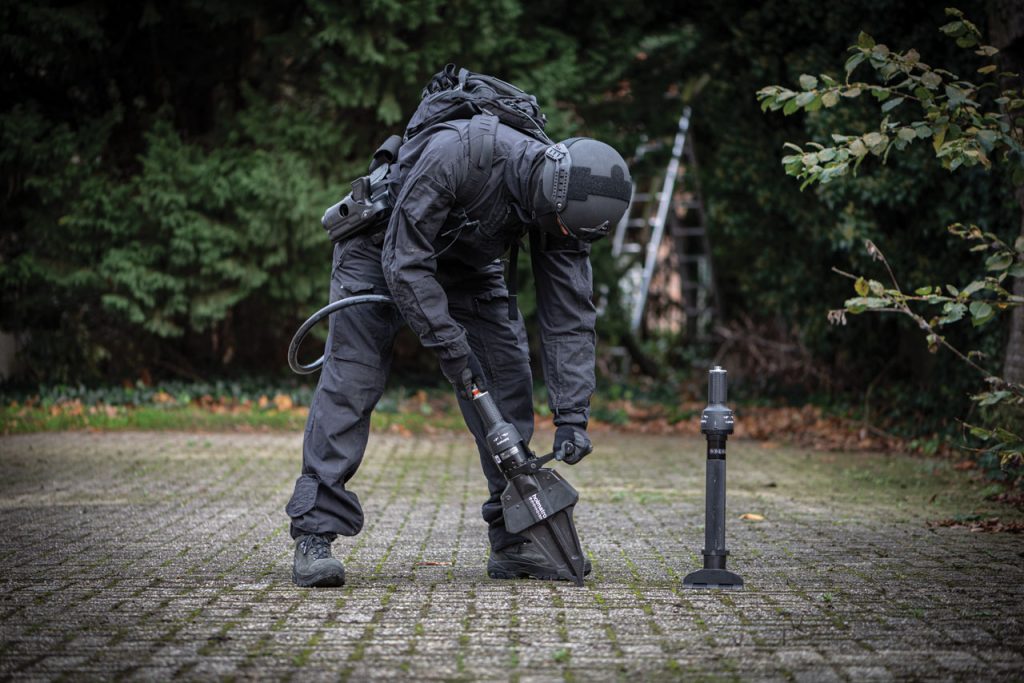

Pump-operated model
- The separate hand pump decreases the weight of the tool and increases maneuverability
360° rotatable aluminum carrying handle
- Continuous swivel with 11 locking positions
- For use of the tool in almost any position
Equipped with i-Bolt
- Flat central bolt construction for better access to narrow spaces
- Squeezes the blades together directly, which results in less blade separation and a better cutting performance
