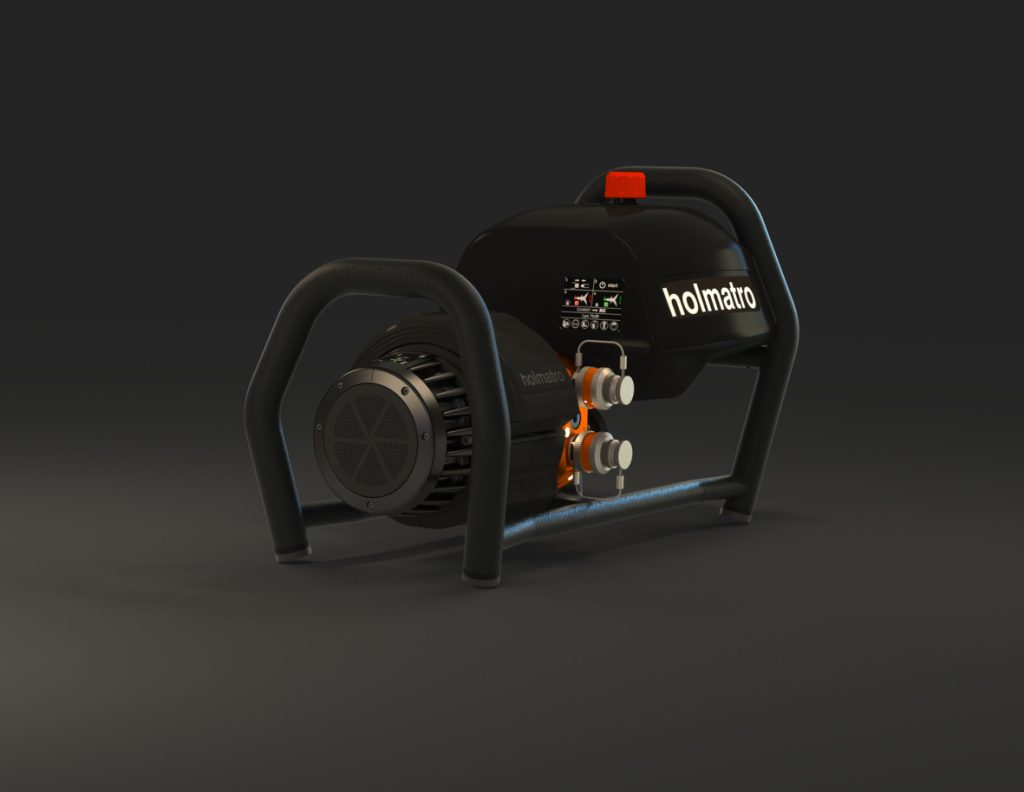

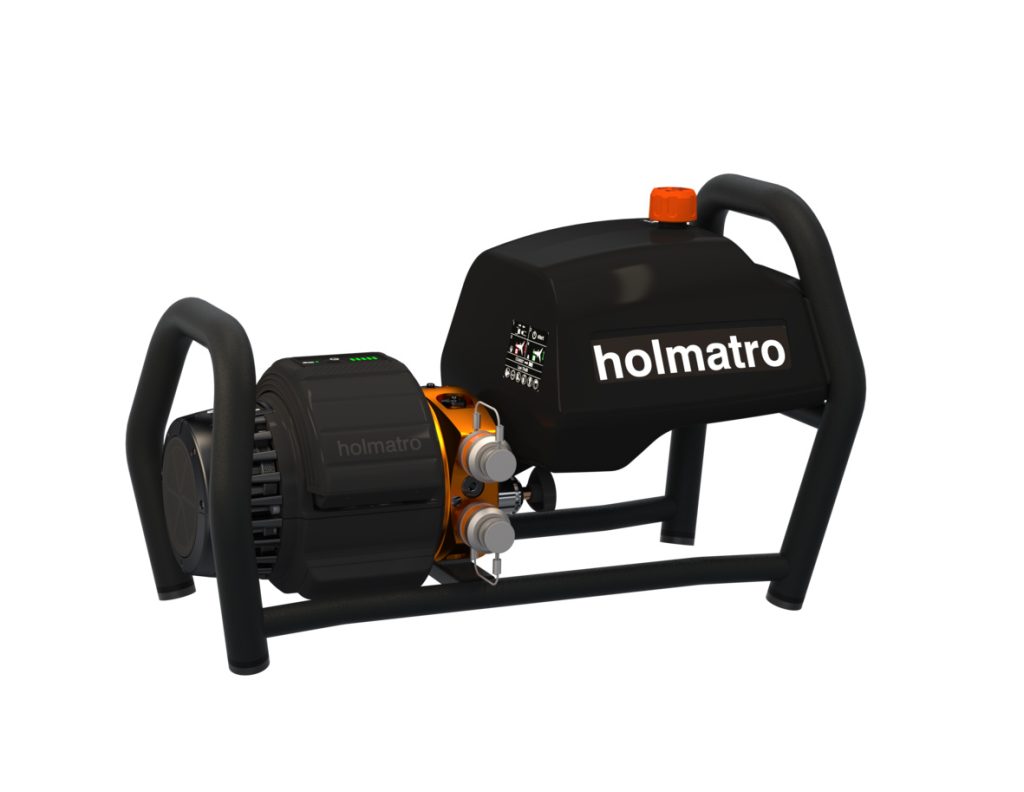

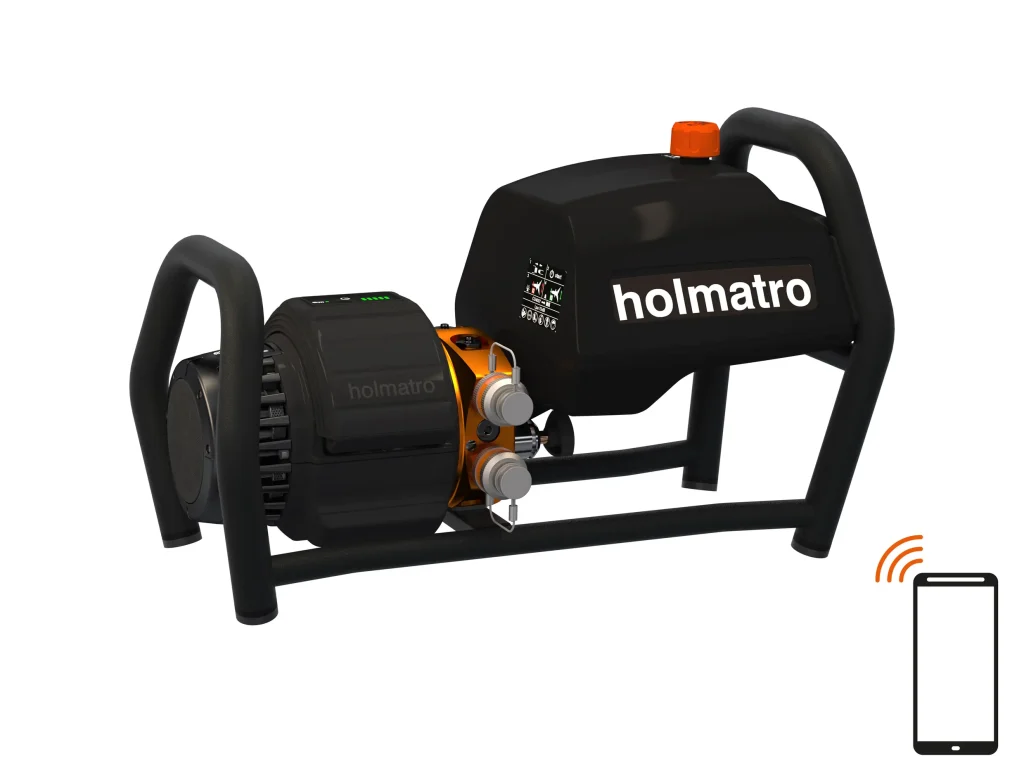

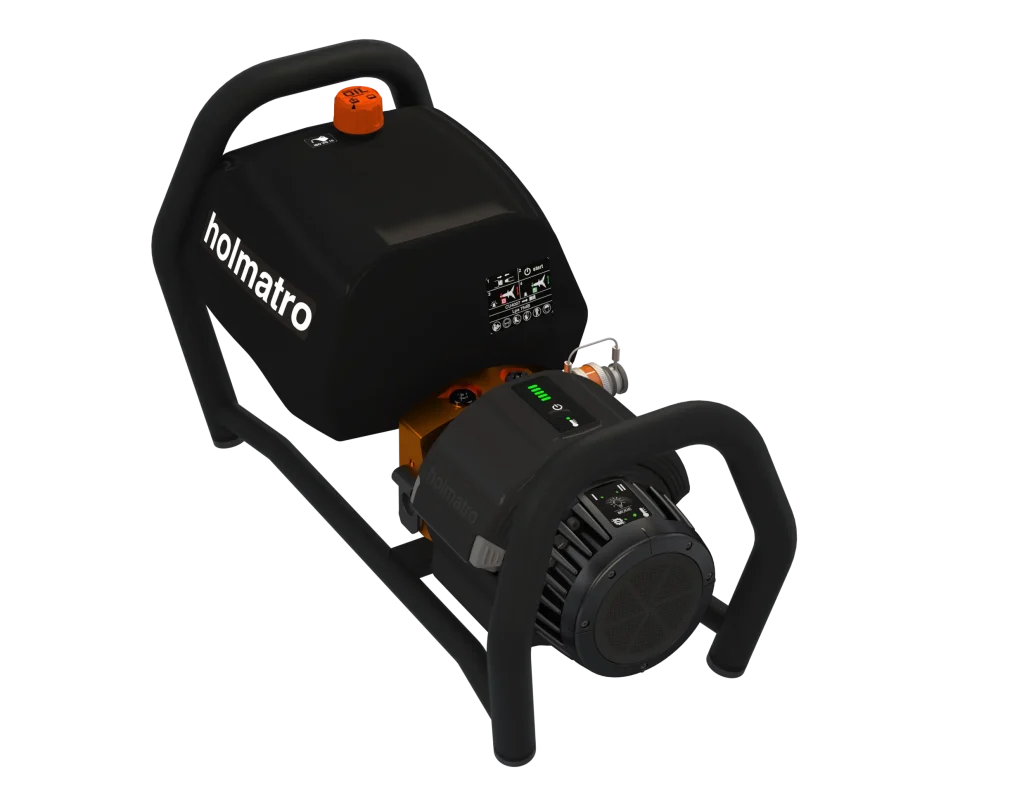

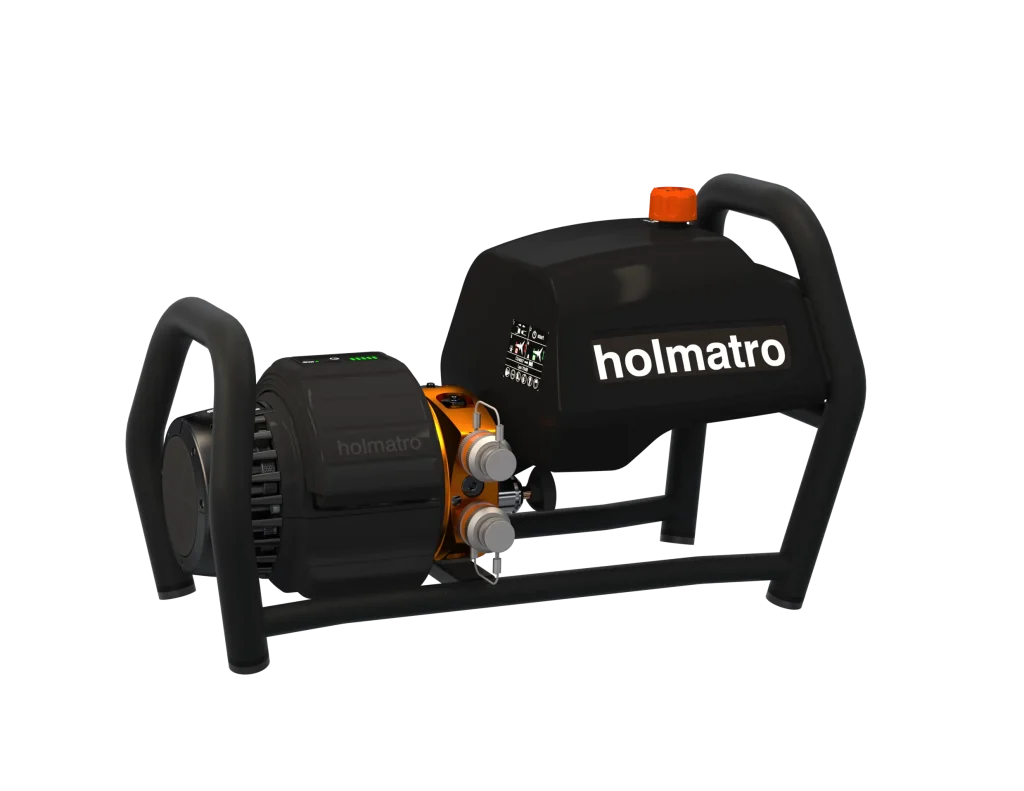

Battery Pump BP20
Features & benefits
- The only battery pump with two connections for hose tools – Switches automatically between two outlets thanks to patented torque valve technology
- Fastest battery pump on the market thanks to Stepless Speed Maximization (patented) – The pump continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
About the Battery Pump BP20
Specifications
Details
Article number
151.004.766
Basic specifications
model
BP20
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
battery included
no
connectivity, mobile app
Bluetooth
Performance
number of stages
stepless
capacity oil tank (effective)
5300 cc
capacity oil tank (effective)
179.2 oz
protection rate
IP44
max. output / min
2700 cc
max. output / min
91.3 oz
General specifications
pump type
axial piston pump
operator type
battery
number of tool connections
2
number of tools simultaneously usable
1
Dimensions, weight and temperature
weight, ready for use
16.7 kg
weight, ready for use
36.8 lb
weight (excl. battery)
15.1 kg
weight (excl. battery)
33.3 lb

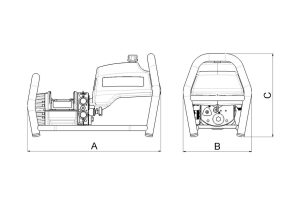

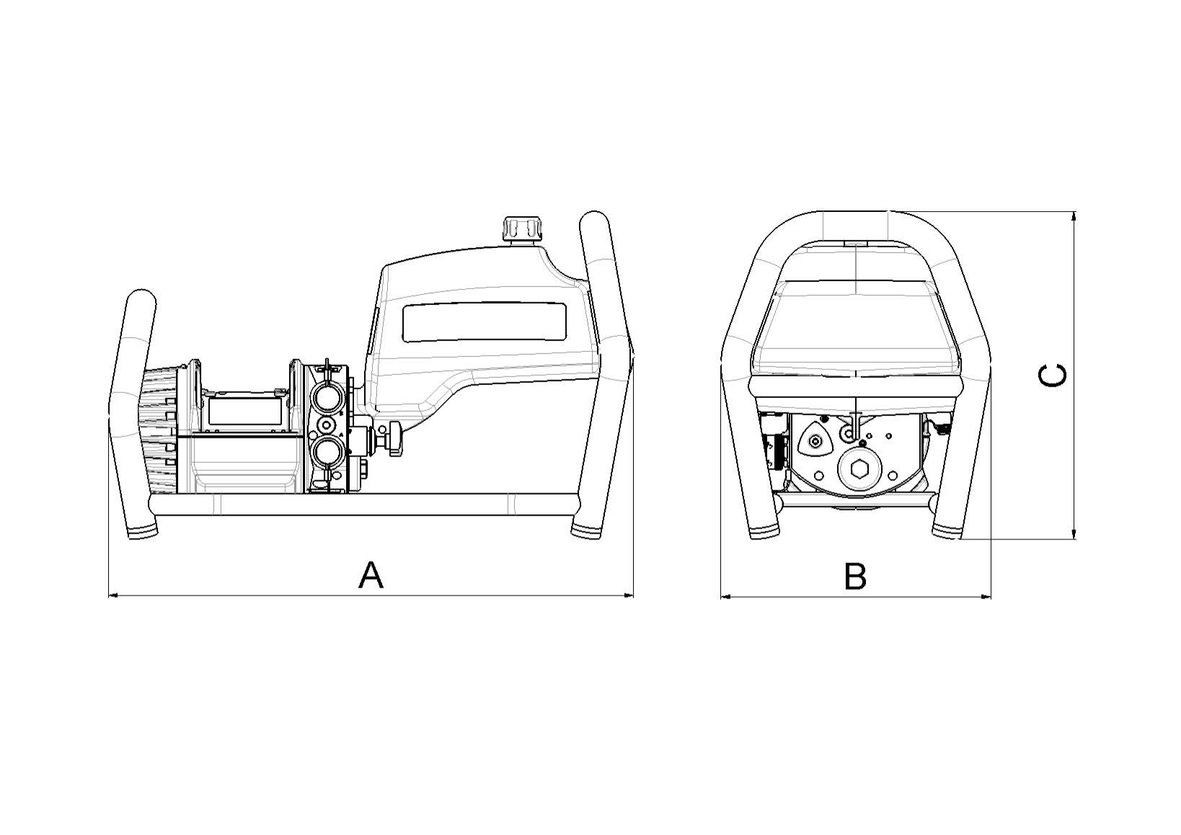

dimensions (AxBxC)
531 x 271 x 332 mm
dimensions (AxBxC)
20.9 x 10.7 x 13.1 in
Norms
EN 13204 classification
ATO
NFPA 1960 compliant
yes
Features
Unrivaled performance

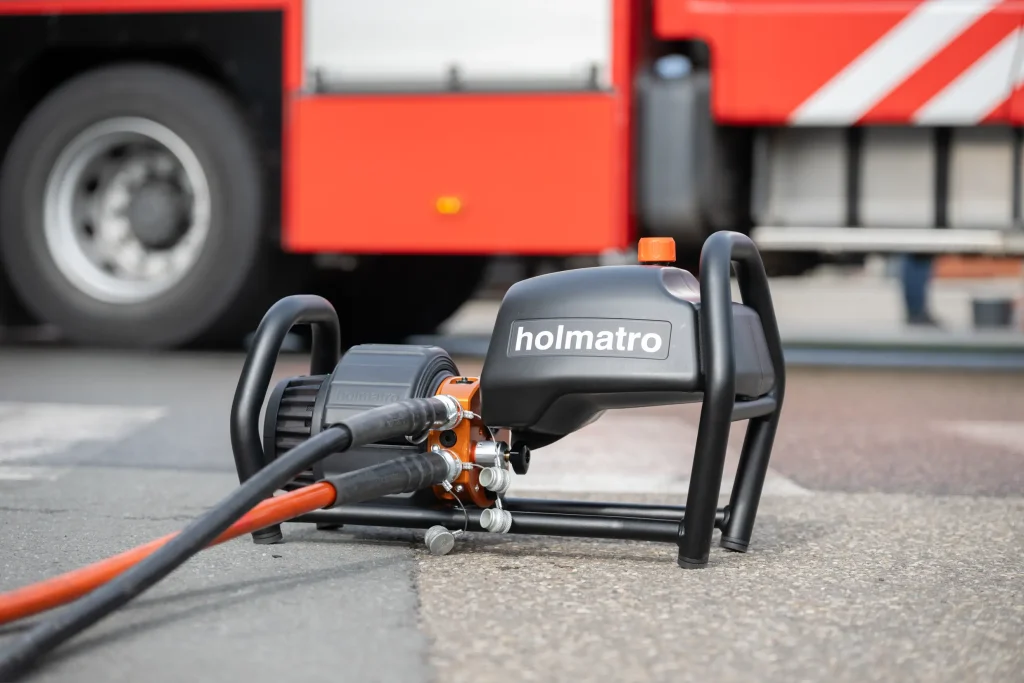

- The only battery pump with two connections for hose tools – Switches automatically between two outlets thanks to patented torque valve technology
- Fastest battery pump on the market thanks to Stepless Speed Maximization (patented) – The pump continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
- Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed mode
- Enough oil capacity to power two large rescue sets (cutter, spreader, ram)
Battery management made easy
- One battery platform – Holmatro batteries power the Battery Pump, Pentheon tools, OmniLock struts and future Holmatro innovations
- On-tool charging – Stay powered by charging batteries directly on the pump
- Priority charging – Batteries on the pump are always charged first, before those on a separate charger
- Connect up to three chargers to a single outlet – Automatically charge up to six batteries
- Smart battery software ensures optimal performance and battery life
Superb ergonomics for effortless handling

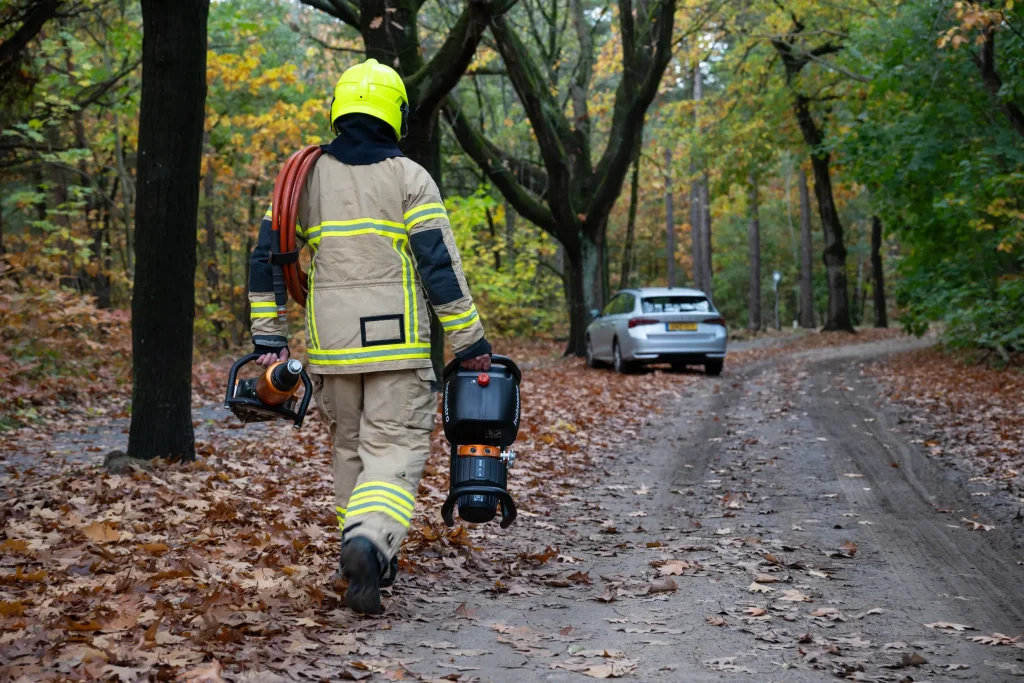

- Lightweight, compact, and easy to carry
- ECO mode for optimal reduction of noise and less battery consumption
Always continue your mission
- Flawless operation in extreme heat, cold, rain, or snow

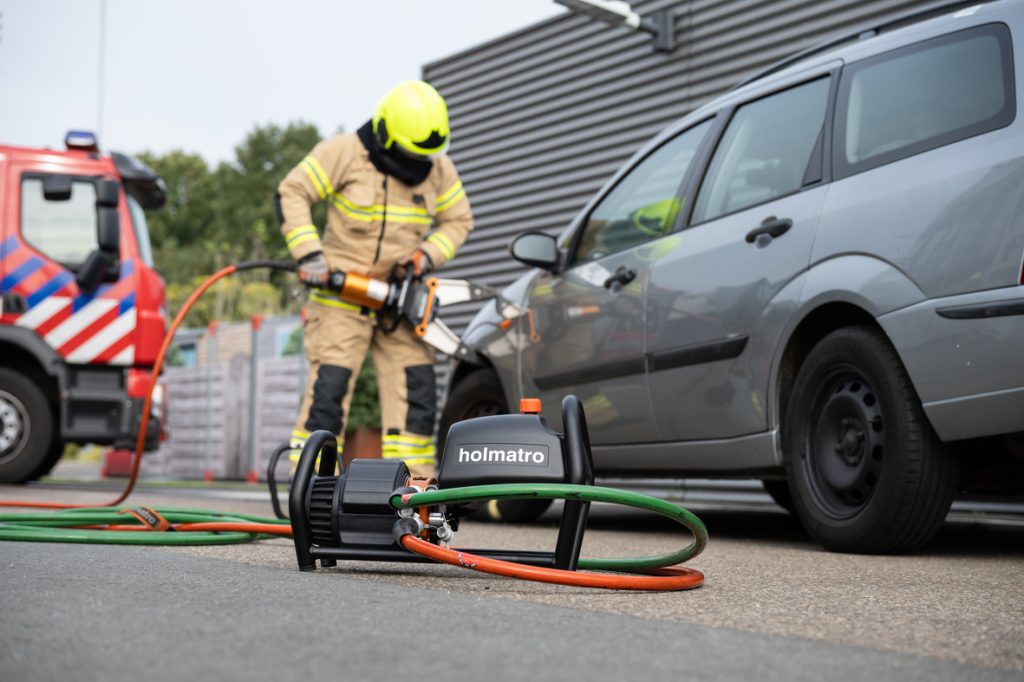

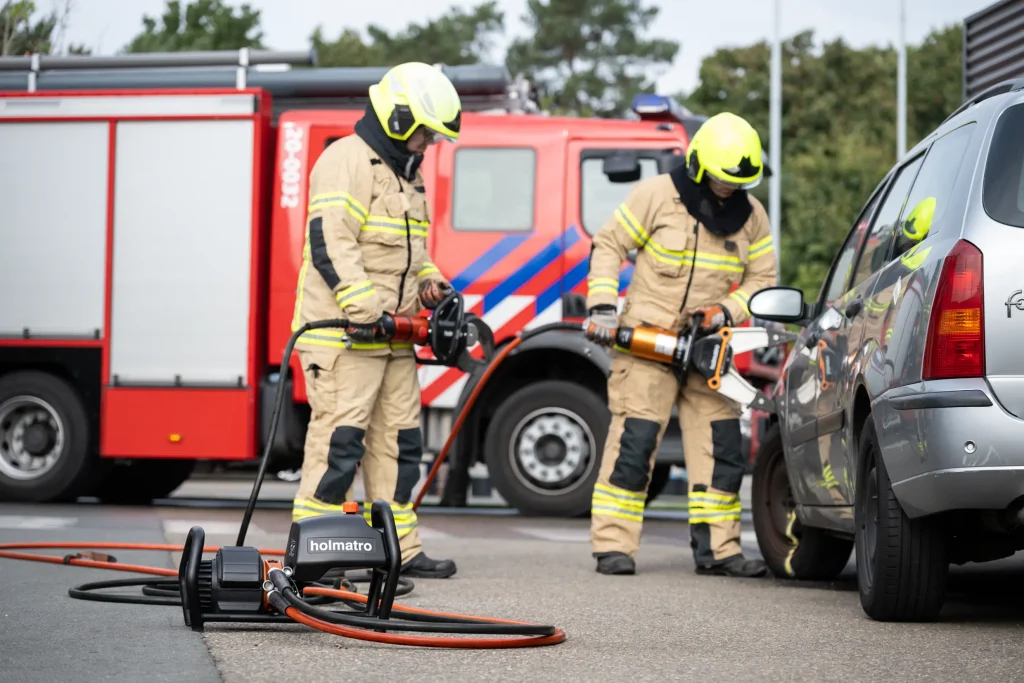

- Ideal for powering rescue equipment in confined spaces like tunnels, trains and collapsed buildings
- Environmentally friendly, emission free
- Automatic LED lights powered by the main battery – For better visibility in the dark. The lights can also be operated manually
Effortless pump maintenance
- Hydraulic oil level indicator for quick and easy monitoring of oil level
- Premium pump service thanks to the Holmatro Inspection Procedures (HIP) – An extensive software program for Authorized Holmatro (Dealer) Service Technicians
Smarter operations with the MyHolmatro app
- Easily connect the pump to your tablet or phone with Bluetooth®
- Real-time diagnostics – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode
