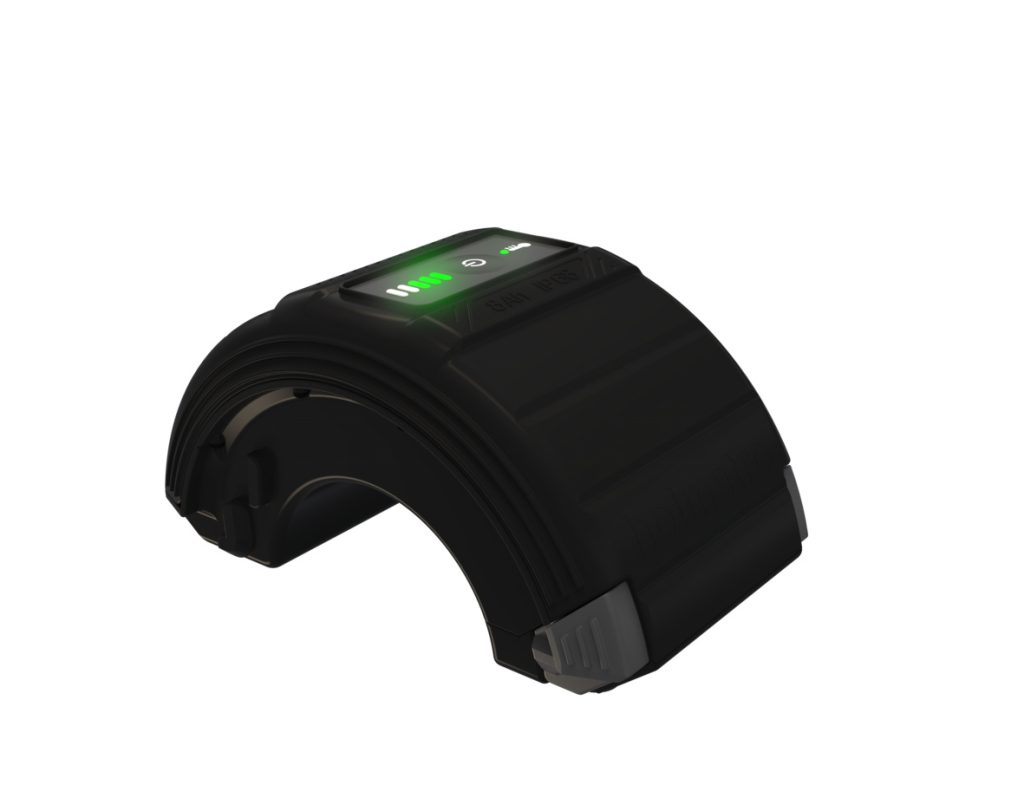

Battery PBPA288

Purpose-built battery with high capacity. Designed for extended working time. Suitable for powering Pentheon tools and OmniLock shoring equipment.

Features & benefits

  • As these cells heat up less quickly, you can keep working with your tool while continuously using the maximum battery power.
Show all

About the Battery PBPA288

Specifications

Choose unit system
Details
Article number
151.004.490
Basic specifications
model
PBPA288
Performance
capacity
8 Ah
energy
202 Wh
minimum battery life
500 cycles
charging time
69 min.
protection rate
IP68
General specifications
voltage
28 VDC
battery type
Li-Ion
Dimensions, weight and temperature
weight, ready for use
1.6 kg
weight, ready for use
3.5 lb

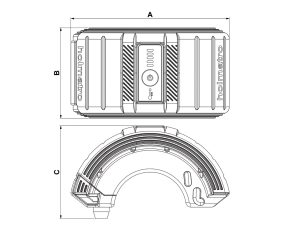

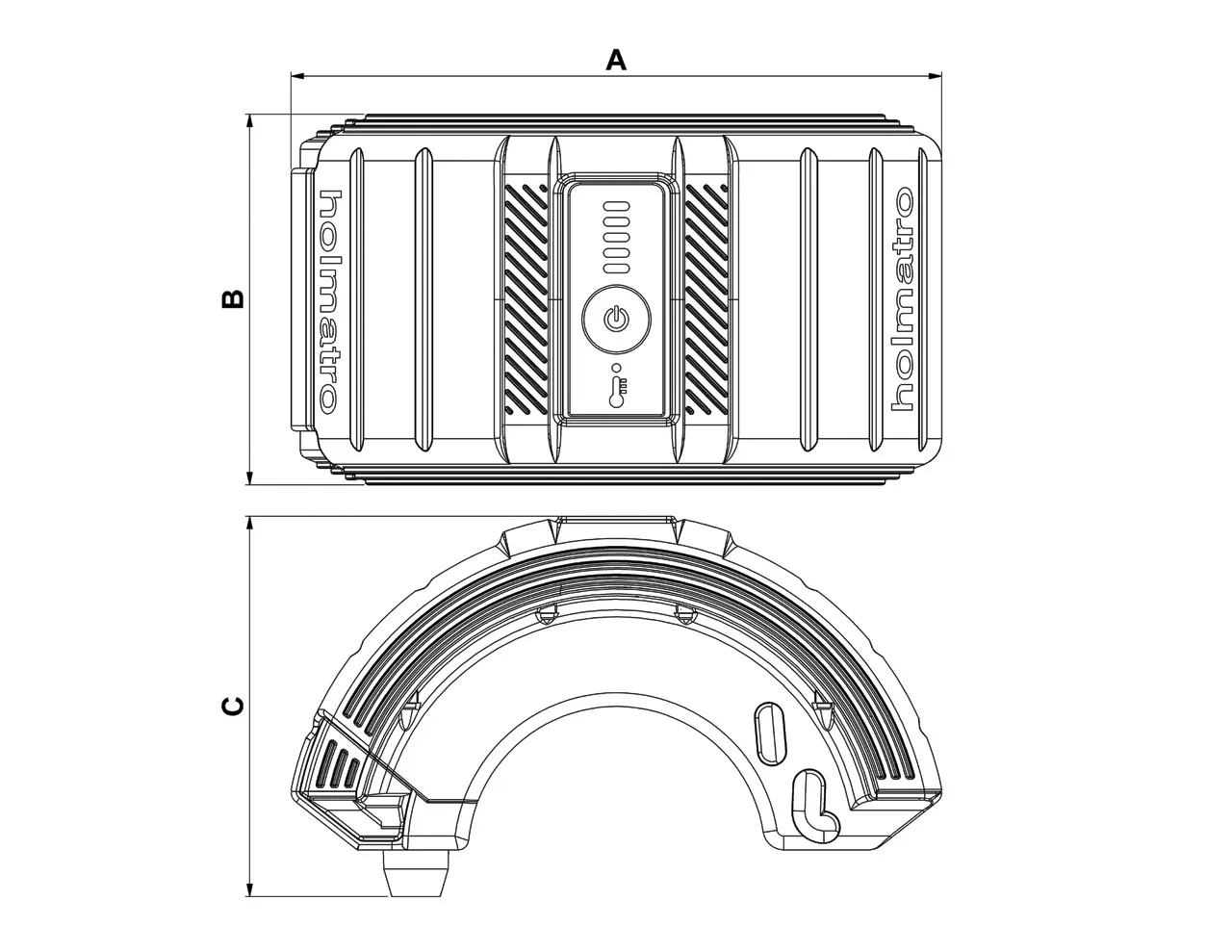

dimensions (AxBxC)
188 x 107 x 110 mm
dimensions (AxBxC)
7.4 x 4.2 x 4.3 in

Features

Contains extra powerful and large cells
  • As these cells heat up less quickly, you can keep working with your tool while continuously using the maximum battery power.
Realtime feedback on battery temperature and state of charge
  • Direct feedback, no need to press a button first.
Suitable for on-tool battery charging
  • Charge the battery while it remains on the tool. Simply connect your tool to the charger. The battery on the tool has priority over the one on the charger.
Waterproof
  • Suitable for under water use, also in salty water
  • Battery can be changed under water
Safe
  • Although the battery contains an integrated on/off switch for the tool, there isn't any voltage on the contacts until it registers a connection with the tool. So you can put it in a puddle of water without any consequences!

Downloads

User manual Battery PBPA288

Maintenance – Manual Diagnostics Software (HDS) – End User
