Backpack Pump GBP10EVO3
Features & benefits

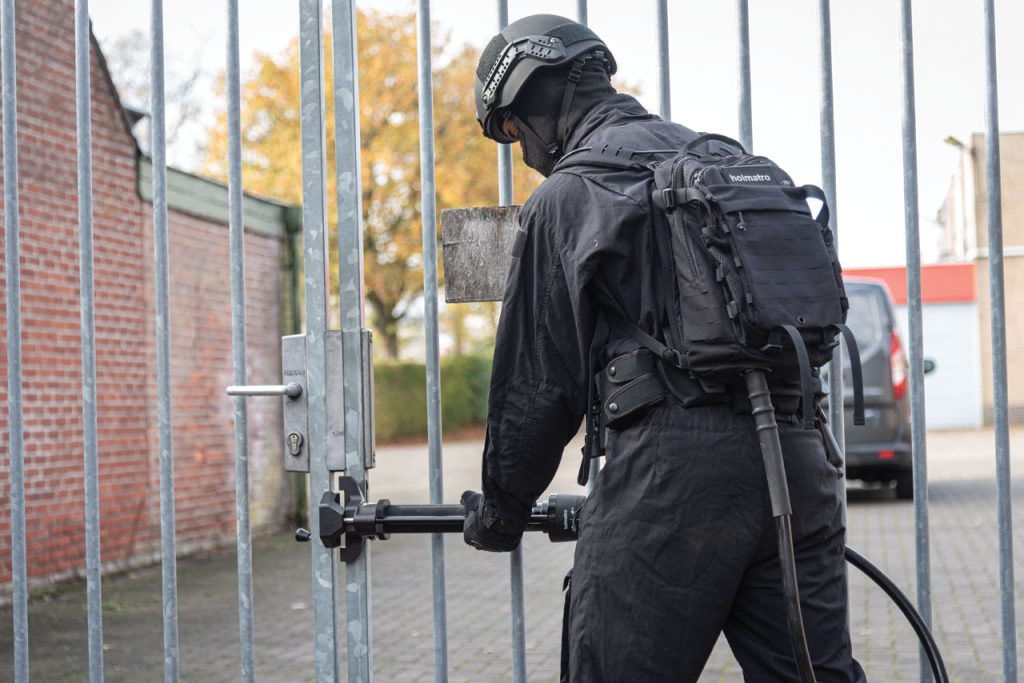

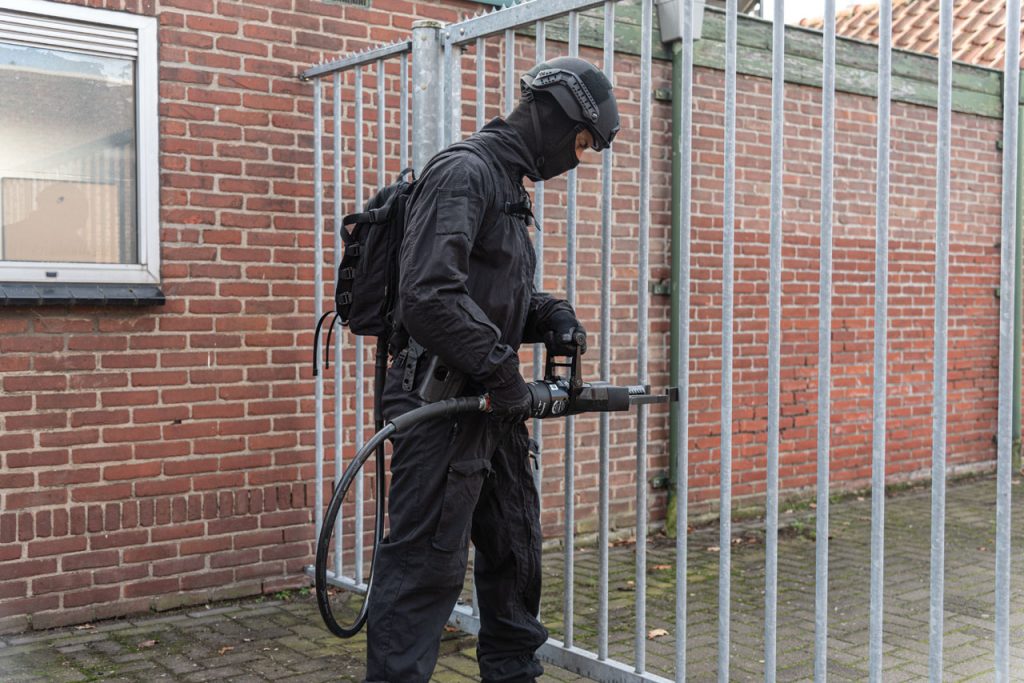

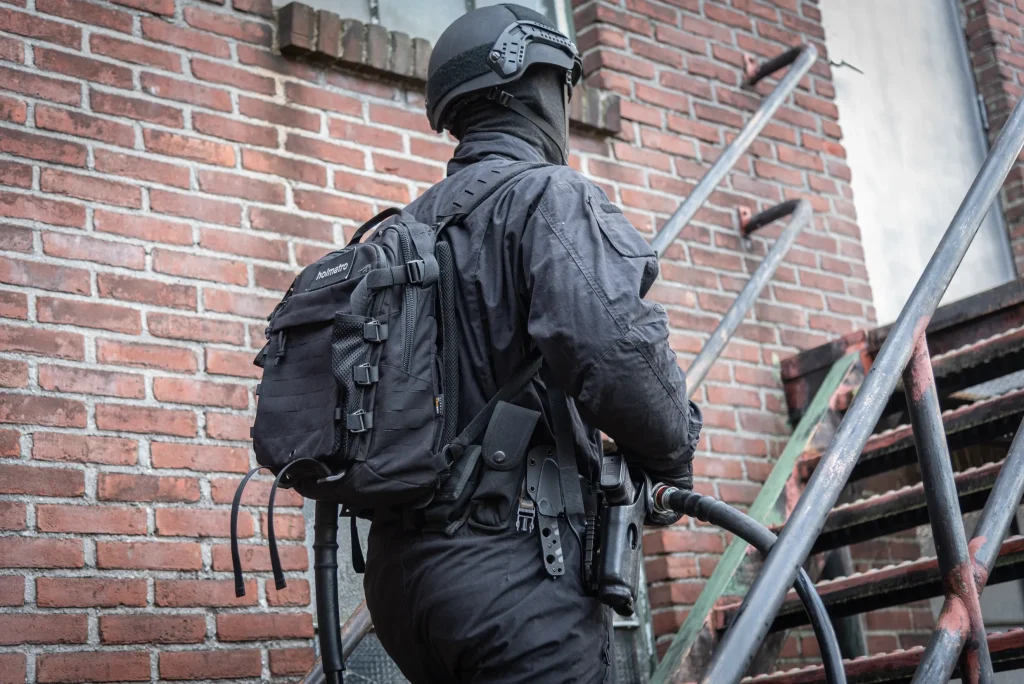

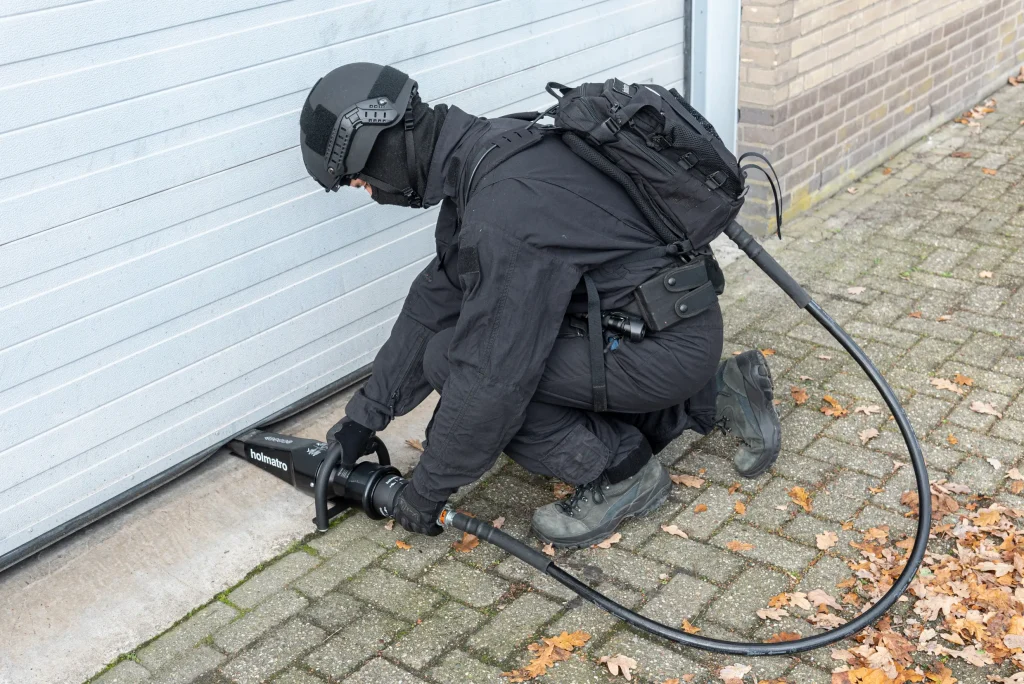

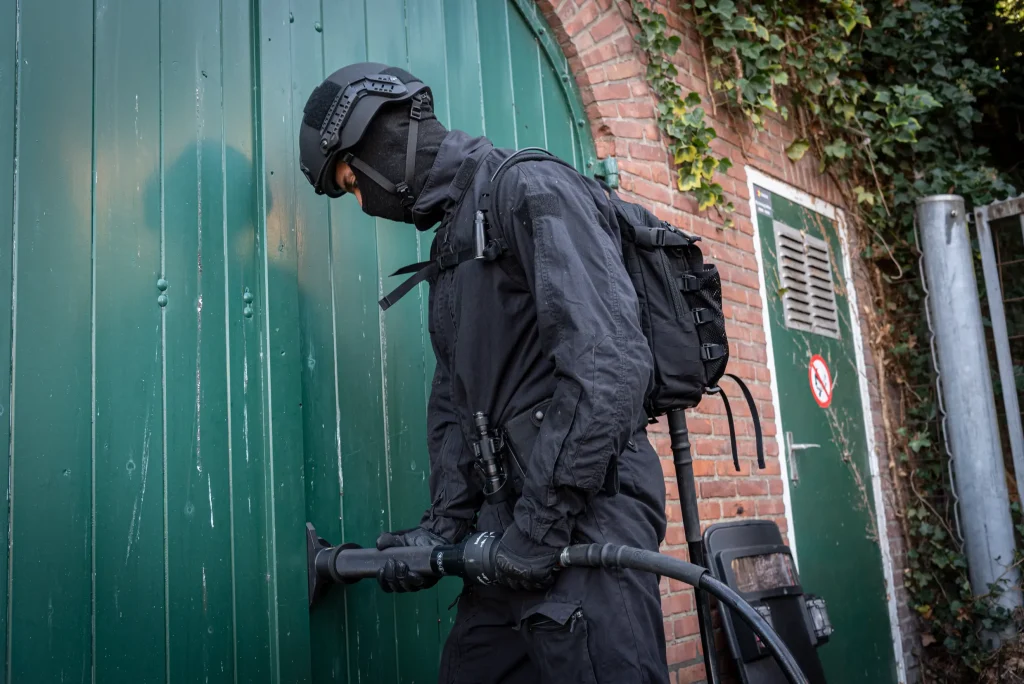

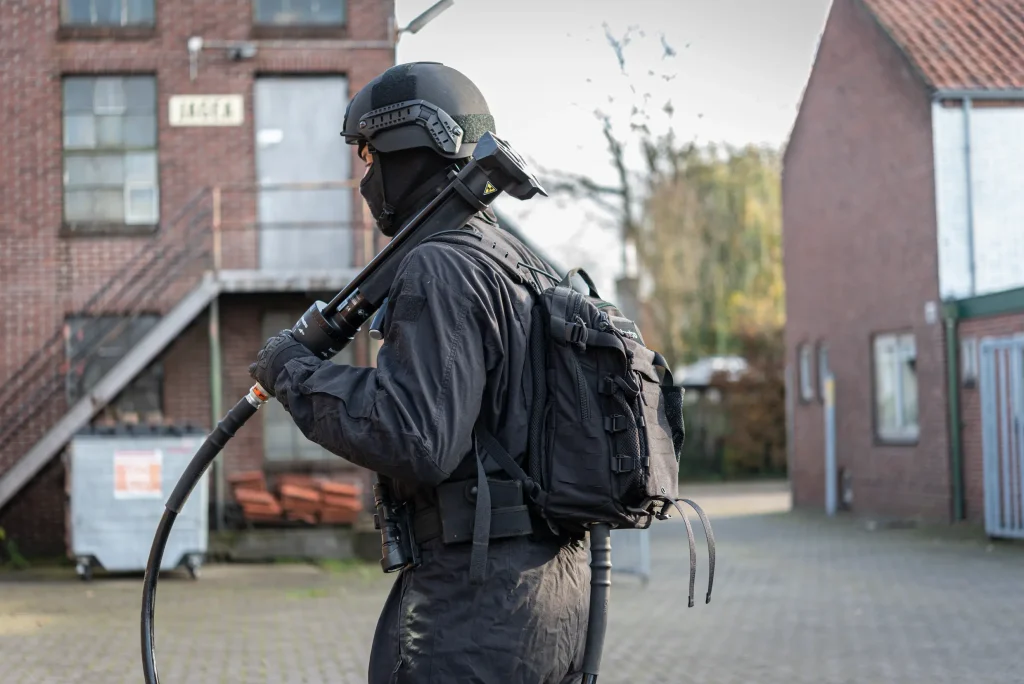

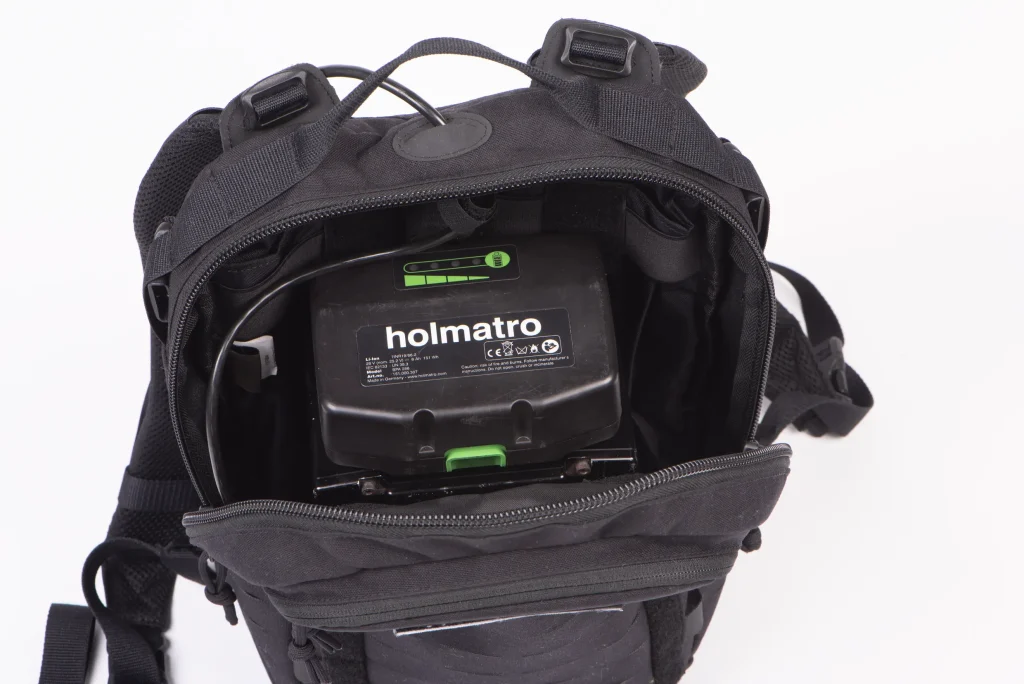

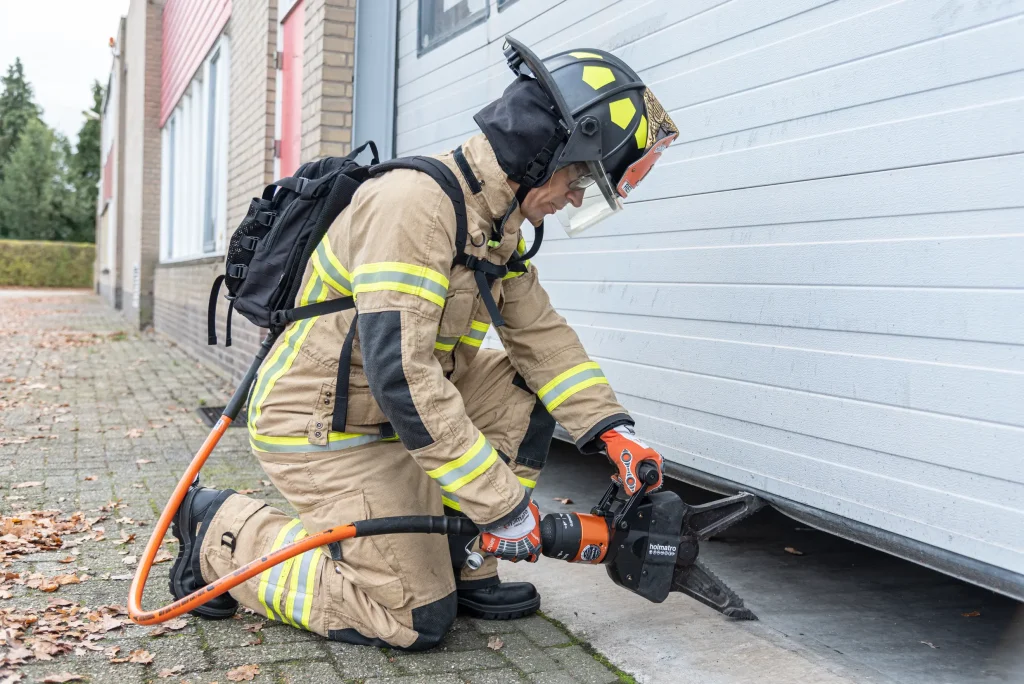

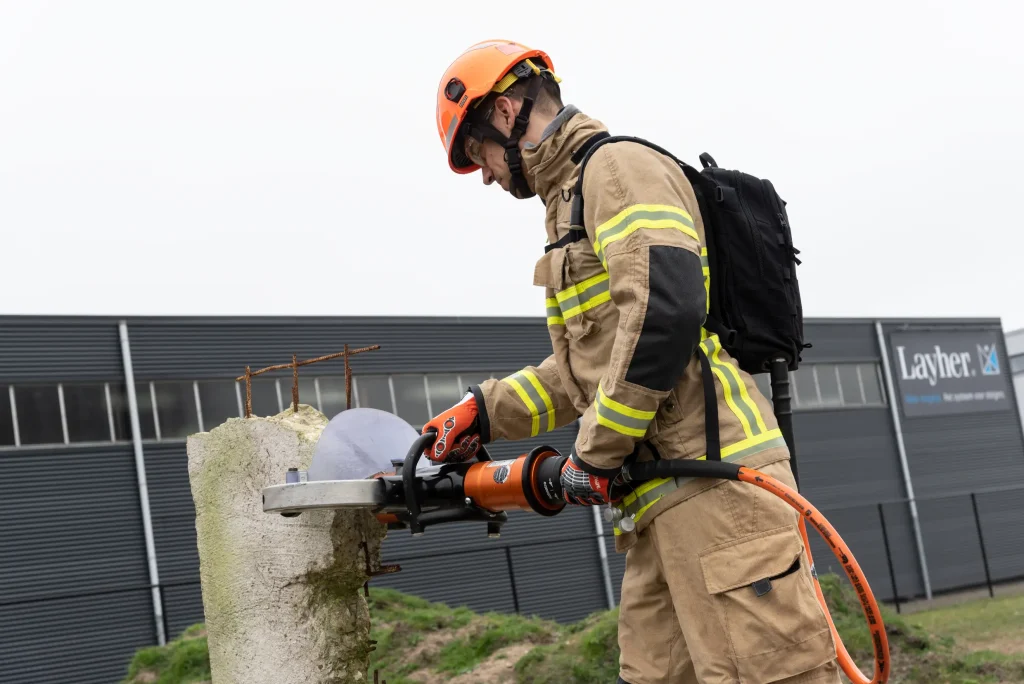

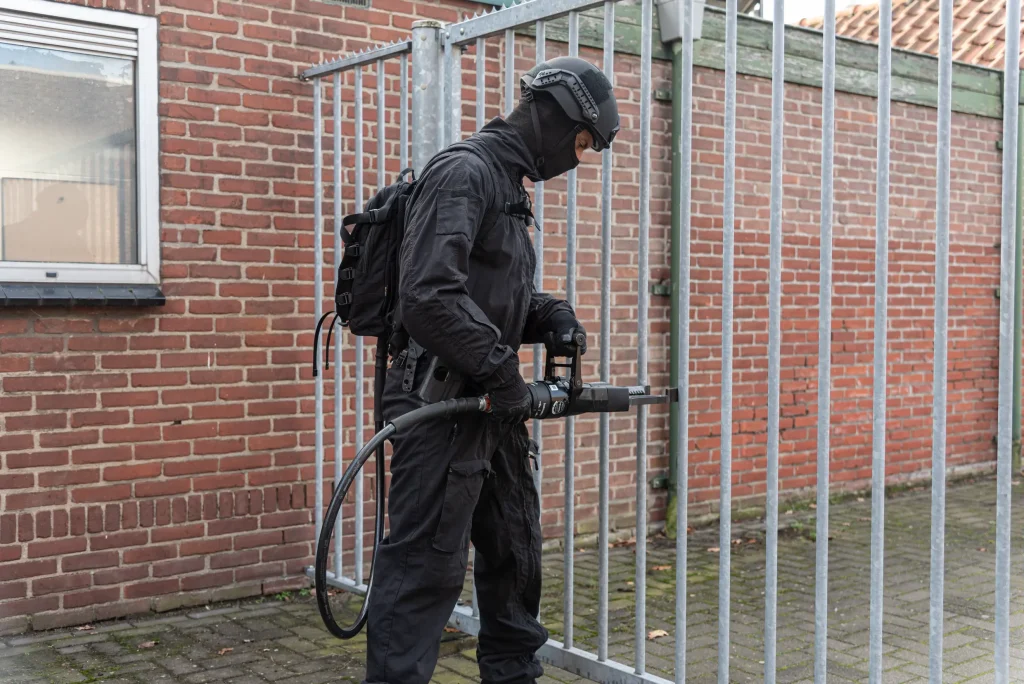

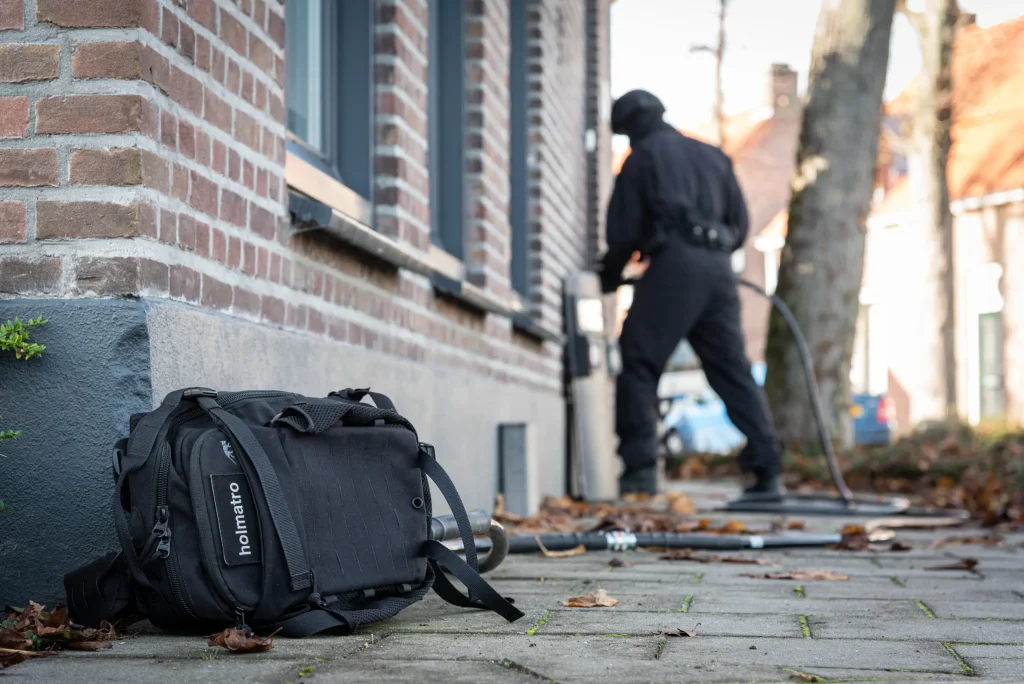

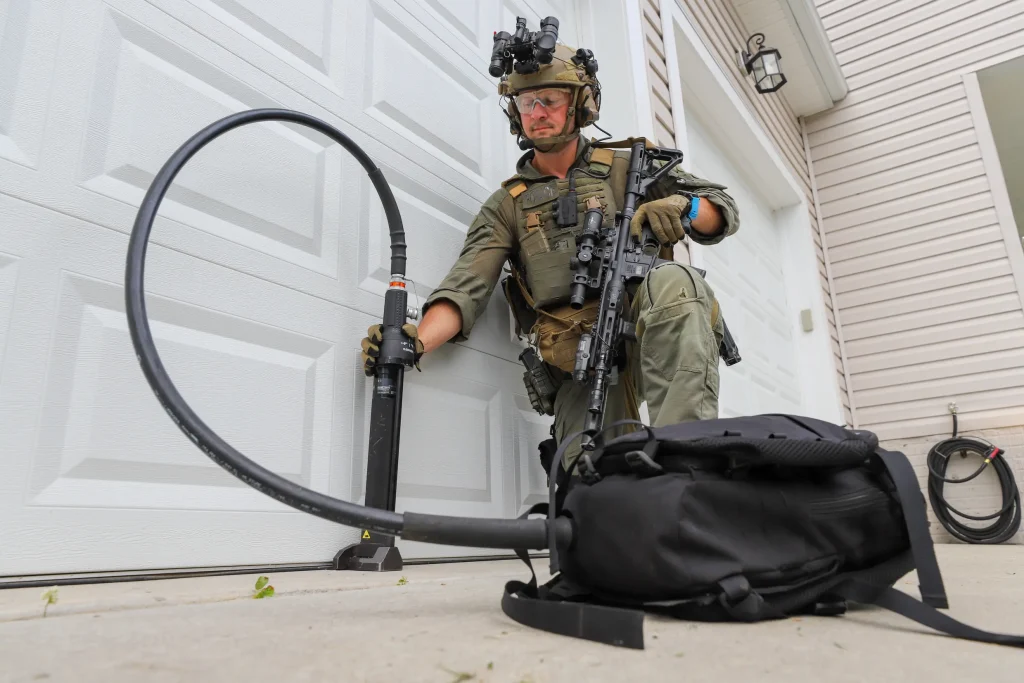

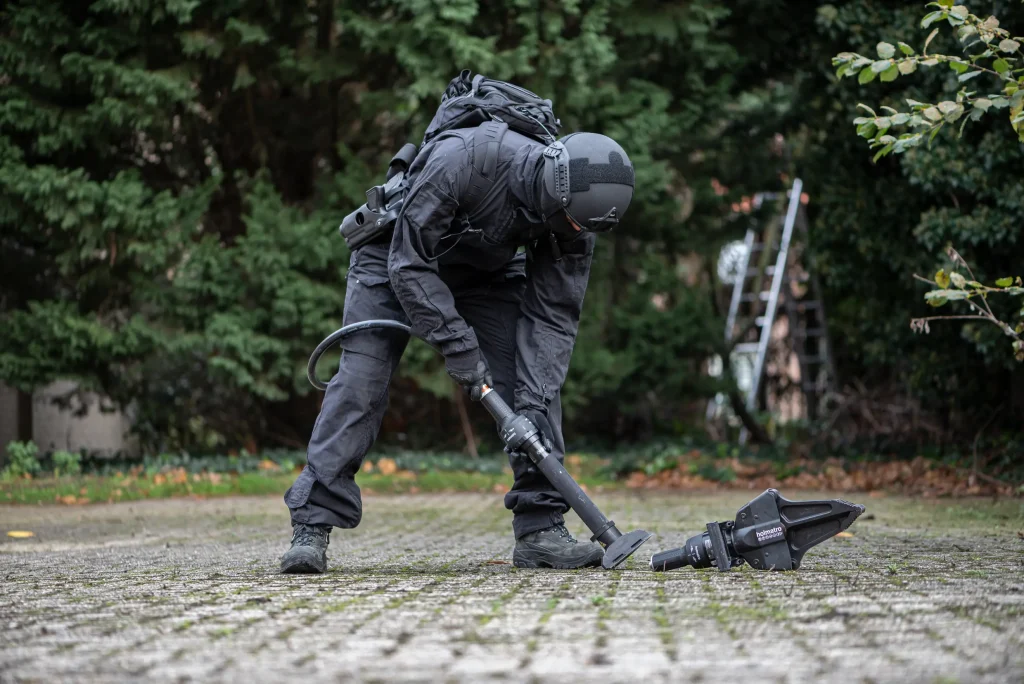

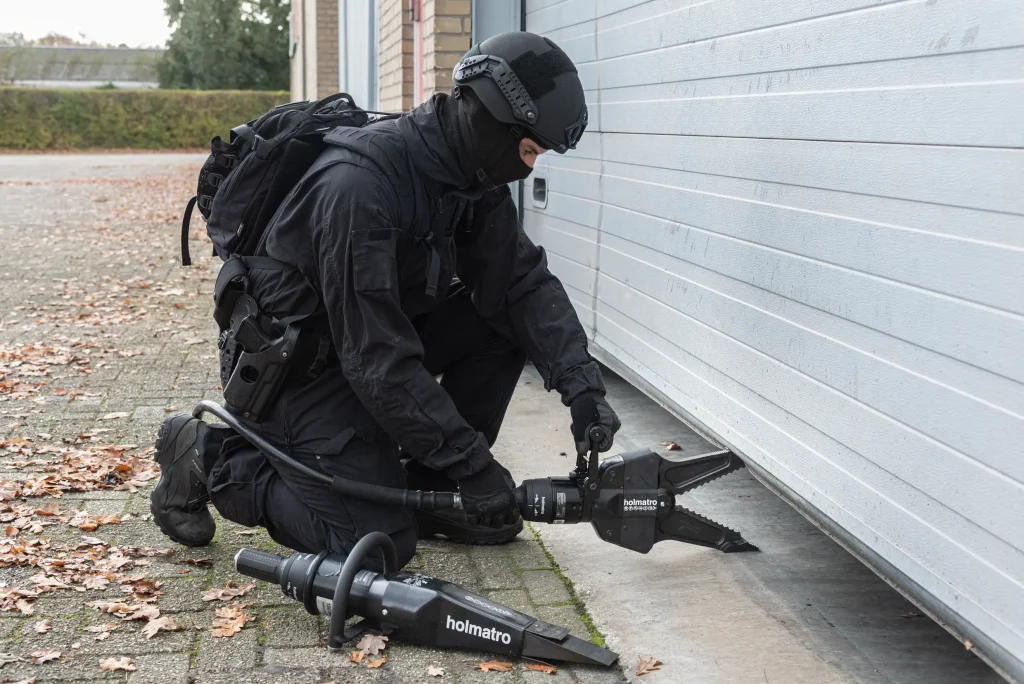

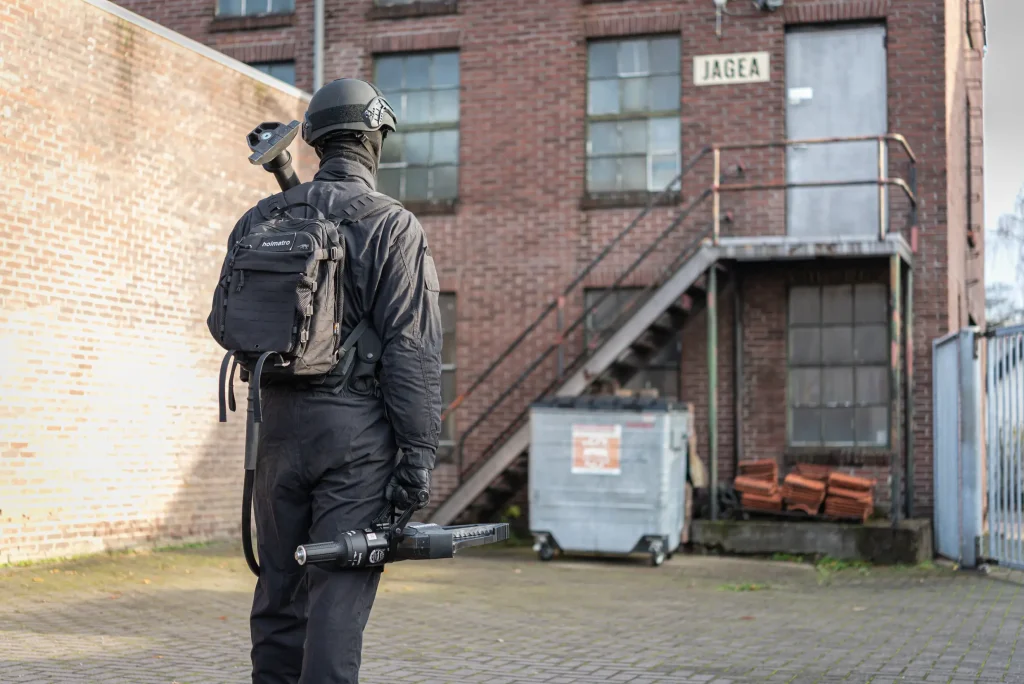

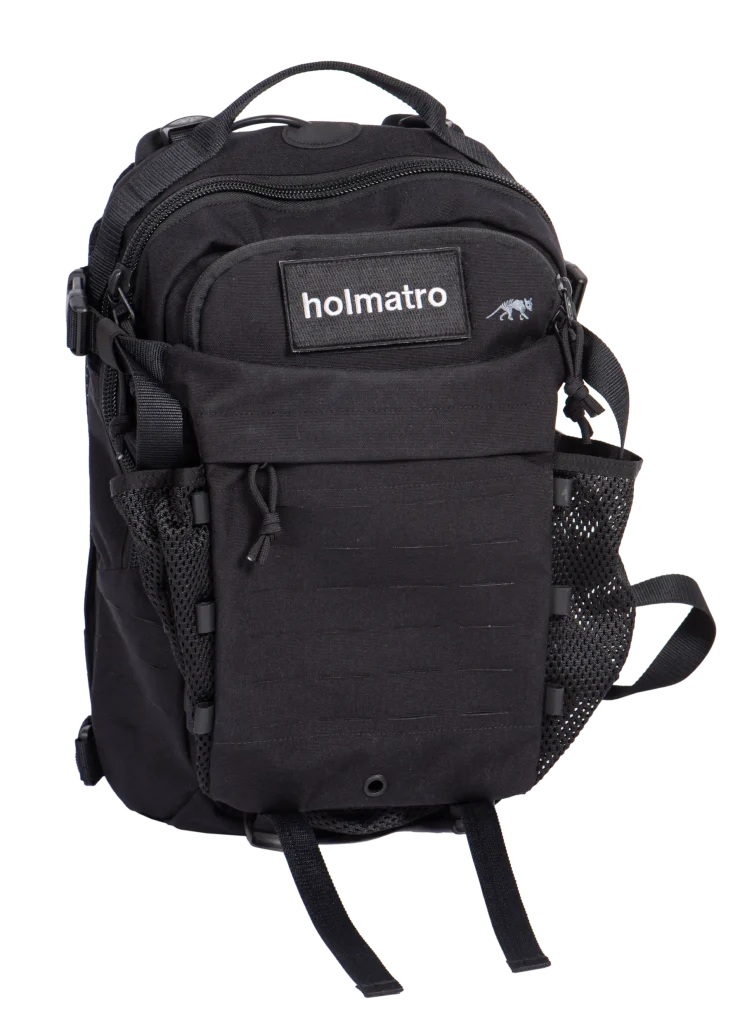

- The pump is compact, lightweight and contained in a backpack
About the Backpack Pump GBP10EVO3
Specifications
Details
Article number
159.000.168
Basic specifications
model
GBP10EVO3
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
battery included
no
Performance
number of stages
2
capacity oil tank (effective)
425 cc
capacity oil tank (effective)
14.4 oz
protection rate
IP54
directives
2006/42/EC, 2014/30/EU
General specifications
pump type
axial piston pump
operator type
battery
number of tool connections
1
number of tools simultaneously usable
1
engine
28 VDC - 700 W
Dimensions, weight and temperature
weight, ready for use
7.5 kg
weight, ready for use
16.5 lb
weight (excl. battery)
6.5 kg
weight (excl. battery)
14.3 lb
dimensions (AxBxC)
380 x 240 x 120 mm
dimensions (AxBxC)
15 x 9.4 x 4.7 in
Features

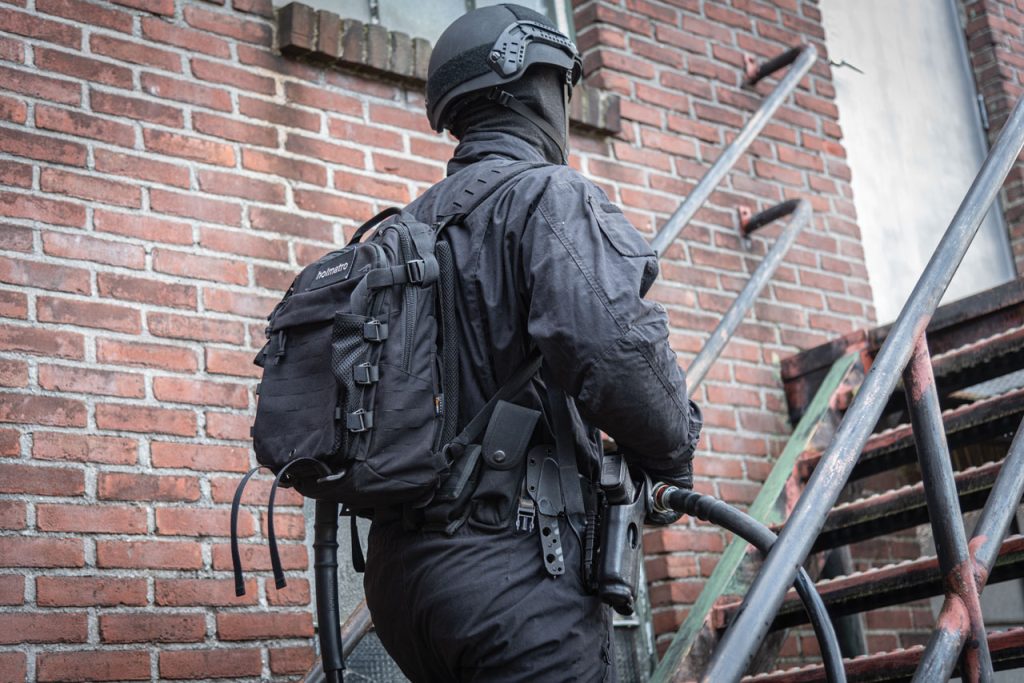

Very portable

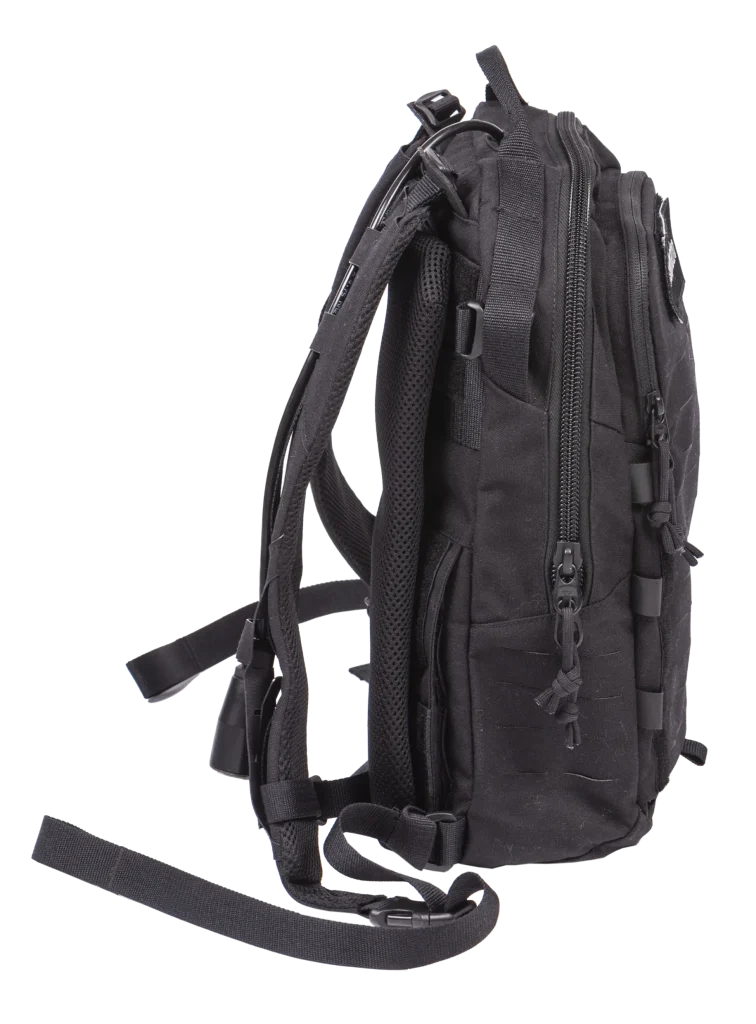

- The pump is compact, lightweight and contained in a backpack
Proven EVO3 technology

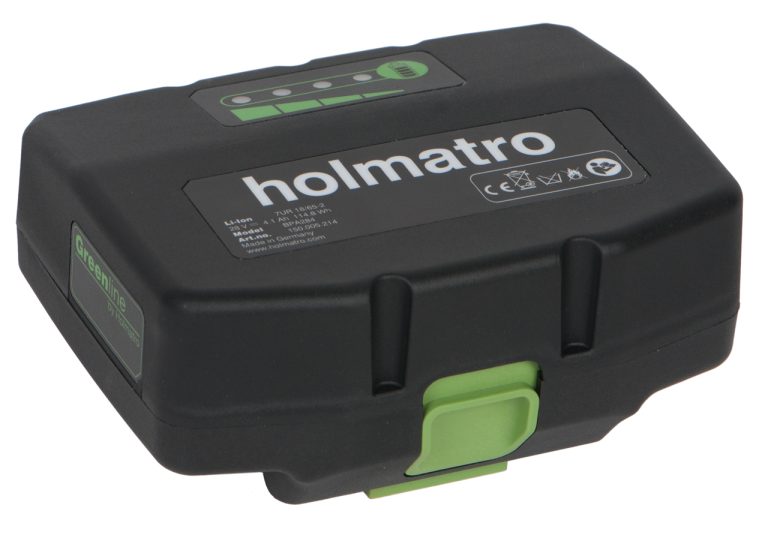

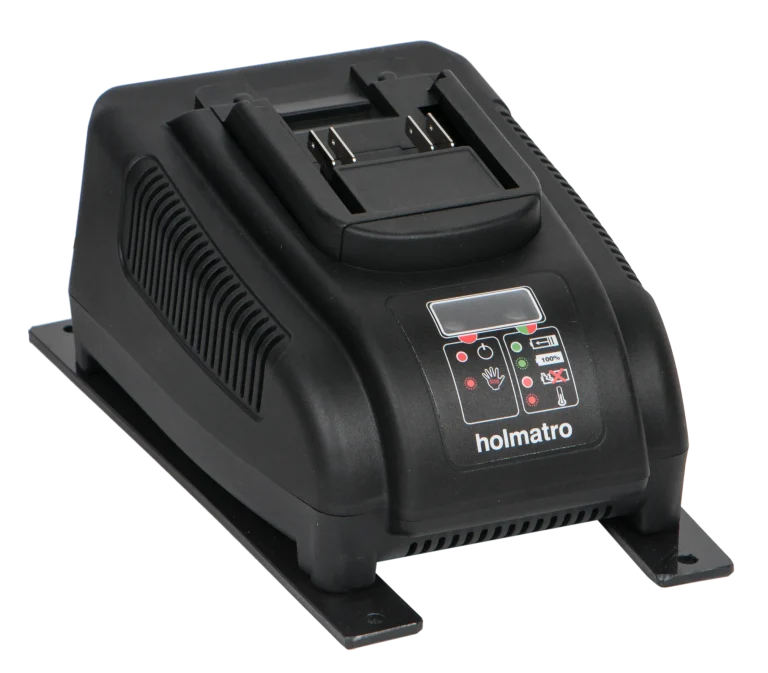

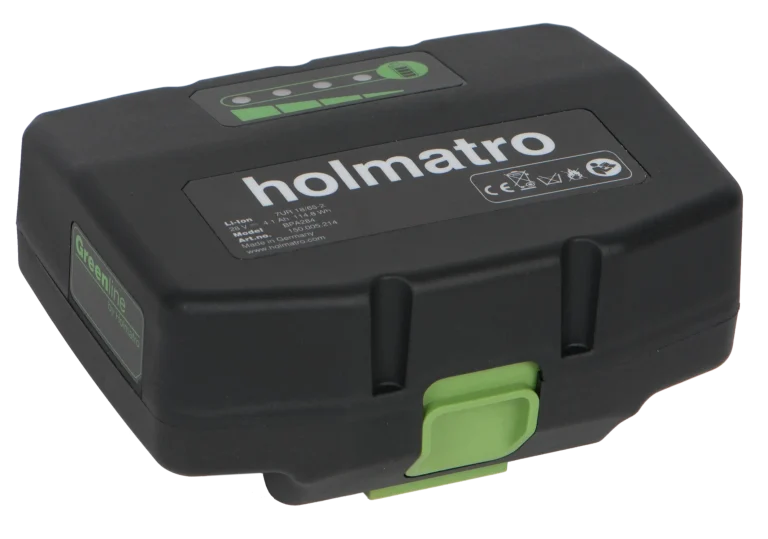

- Battery used for the pump is the same as is used for all other Holmatro EVO3 tools.
Large oil content
- Pump can be used with all CORE tools except 15t and 22t telescopic rams.
Safe to use in harsh environments
- Thanks to IP 54 rating: Protection against dust and splashing of water
Emission-free
- Ideal for use in confined and/or underground spaces
