Combi Tool PCT17ST

Cordless Combi Tool, part of the Holmatro Pentheon Series. Designed to offer you the unrestrained performance, unparalleled speed and ultimate control you've never experienced before! This multifunctional tool can be used for cutting, spreading and squeezing and is therefore suitable for a variety of applications, ranging from forcible entry to extrication of persons trapped.

Read more
Watch Wishlist
New
Combi Tool PCT17ST
Combi Tool PCT17ST
Combi Tool PCT17ST
Combi Tool PCT17ST
Combi Tool PCT11/14/17ST
Combi Tool PCT11/14/17ST
Combi Tool PCT11/14/17ST
Combi Tool PCT11/14/17ST
  • Combi Tool PCT17ST
  • Combi Tool PCT17ST
  • video
  • Combi Tool PCT17ST
  • Combi Tool PCT17ST
  • Combi Tool PCT11/14/17ST
  • Combi Tool PCT11/14/17ST
  • Combi Tool PCT11/14/17ST
  • Combi Tool PCT11/14/17ST
Specifications
Details
Articlenumber 151.001.572
Basic specifications
model PCT17ST
max. working pressure 720 / 72 (bar/Mpa) 10443 psi
battery included no

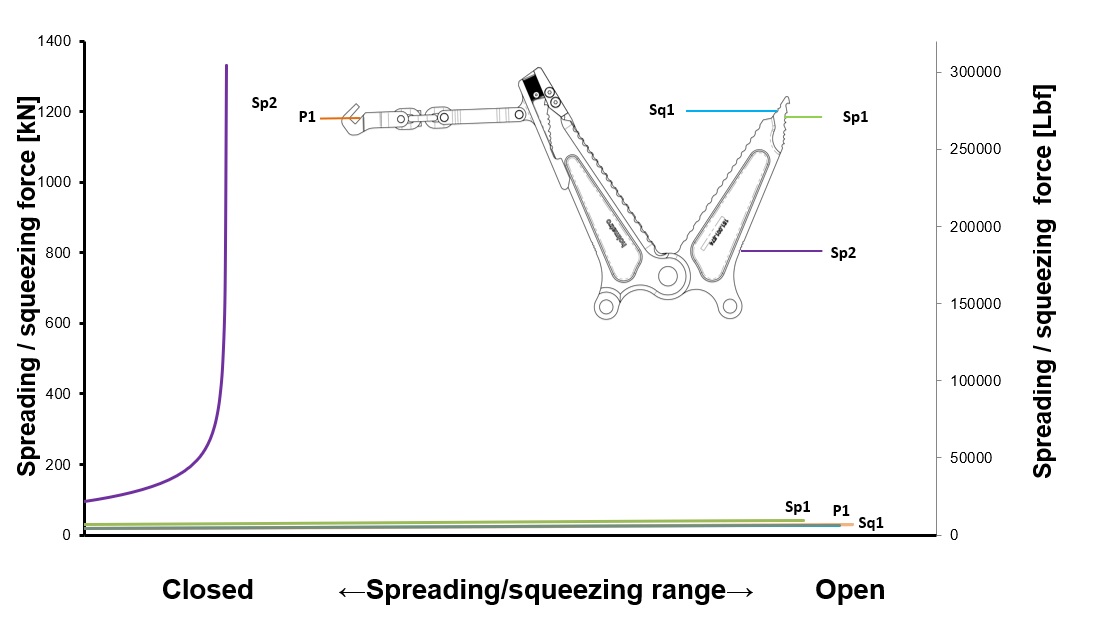

Performance
max. spreading force 1350 / 137.7 (kN/t) 303492 lbf
min. spreading force (EN 13204) 28 / 2.9 (kN/t) 6295 lbf
spreading distance 431 mm 17 in
max. cutting opening 352 mm 13.9 in
max. squeezing force 27 / 2.8 (kN/t) 6070 lbf
max. pulling force 30 / 3.1 (kN/t) 6744 lbf
protection rate IP57
directives 2006/42/EC, 2014/30/EU
theoretical cutting force 268 / 27.3 (kN/t) 60249 lbf
Dimensions, weight and temperature
weight, ready for use 14.4 kg 31.7 lb
weight excl. battery 12.9 kg 28.4 lb
dimensions (AxBxC) 776 x 270 x 275 mm 30.6 x 10.6 x 10.8 in
Norms
EN 13204 classification BK28/431-E-14.4
NFPA 1936, cutting capacity A5 B5 C4 D6 E4 F3
NFPA 1936 compliant yes
EN 13204, cutting capacity 1E 2E 3E 4E 5E
EN 13204 compliant yes
NFPA 1936, HPF 27 / 2.8 (kN/t) 6070 lbf
NFPA 1936, HSF 32 / 3.3 (kN/t) 7194 lbf
NFPA 1936, LPF 18 / 1.8 (kN/t) 4047 lbf
NFPA 1936, LSF 25 / 2.5 (kN/t) 5620 lbf
Cutting performance
round bar (S235 acc. to EN 13204) 24 mm 0.9 in
Features
  • • Unparalleled Speed
    - Fastest Combi Tool on the market, thanks to Stepless Speed Maximization (PATENTED). A mechatronic system inside the tool continuously optimize the motor and pump settings to deliver a maximized oil flow over the full pressure range. This results in unparalleled speed for spreading and cutting of doors, fences and other obstacles. That means even shorter breaching operations, maximizing safety of the operator and minimizing the response time of the target.
    - Where all other hydraulic breaching tools show a significant decrease in speed when switching to another stage to deal with higher loads, Holmatro Pentheon tools stick to the ideal stepless speed curve.
  • • Ultimate Control
    - A unique two-mode control handle for ultimate speed control offers you the choice, at any time during the breaching operation, to switch between the tool's high-speed and low-speed modes. This allows you to accurately position the tool at low speed and then operate it at high speed.
    - Within these two modes the speed is still proportional to how far you turn the control handle to its left or right.
  • • Extended working time thanks to:
    - A purpose-built battery with increased capacity
    - The energy efficiency of our patented mechatronic drive technology.
    - An Auto Start/Stop function. When the tool is not operated or has reached its maximum pressure, the motor stops automatically. This saves valuable battery capacity. Simply turn the control handle to restart the tool.
  • • Minimum sound level
    - If the tool is switched on, the engine will only start running when the control handle is activated/turned. When the controle handle is released, the engine and sound stop immediately, but the tool is still stand-by and ready for action.
  • • Under water use
    - Should you encounter a situation where you need to use your breaching tools completely submerged in water, our Pentheon tools are up for the job!
  • • Realtime diagnostics
    - LED indicators on the tool, battery and charger provide you with direct feedback on the battery's temperature, state of charge and state of health, as well as the tool temperature and when the maximum pressure has been reached.
    - For more detailed battery information you can make use of our diagnostics software.
    - A more extensive software program for Authorized Holmatro (Dealer) Service Technicians will allow them to provide the best service for your Pentheon tools. It combines in-depth tool diagnostics with automated inspection procedures.
  • • Ease of use
    - Inline control handle with 360° access.
    - 360° Carrying handle. Goes all around the tool, so you can hold it in any position. Includes a suitcase grip for easy carrying. Made of a high-grade synthetic polymer: an extremely tough and elastic material that always returns into its original shape. Damage-proof!
    - The LED lights in the carrying handle can be switched on and off by a separate button.
  • • Battery management made easy
    - Stop swapping batteries with Holmatro's On-Tool Charging System. From now on you can charge a battery while it remains on the tool. Simply connect your tool to the charger and the whole charging process will regulate itself. The battery on the tool has priority over the one on the charger, which will resume charging when the battery on the tool is 100% full.
