Spreader PSP60

Cordless Spreader, part of the Holmatro Pentheon Series. Designed to offer you unrivaled performance, superior usability, advanced connectivity and exceptional serviceability.

Read more
Watch Wishlist

Insights at your fingertips

Get the MyHolmatro App now!

Next-Gen
Spreader PSP60
Spreader PSP60
Spreader PSP60
Spreader PSP60
Spreader PSP60
Spreader PSP60
Spreader PSP60
Spreader PSP60
Spreader PSP60
Spreader PSP60
  • Spreader PSP60
  • Spreader PSP60
  • video
  • video
  • video
  • Spreader PSP60
  • Spreader PSP60
  • Spreader PSP60
  • Spreader PSP60
  • Spreader PSP60
  • Spreader PSP60
  • Spreader PSP60
  • Spreader PSP60
Specifications
Details
Articlenumber 159.000.230
Basic specifications
model PSP60
max. working pressure 720 / 72 (bar/Mpa) 10443 psi
battery included no
Performance

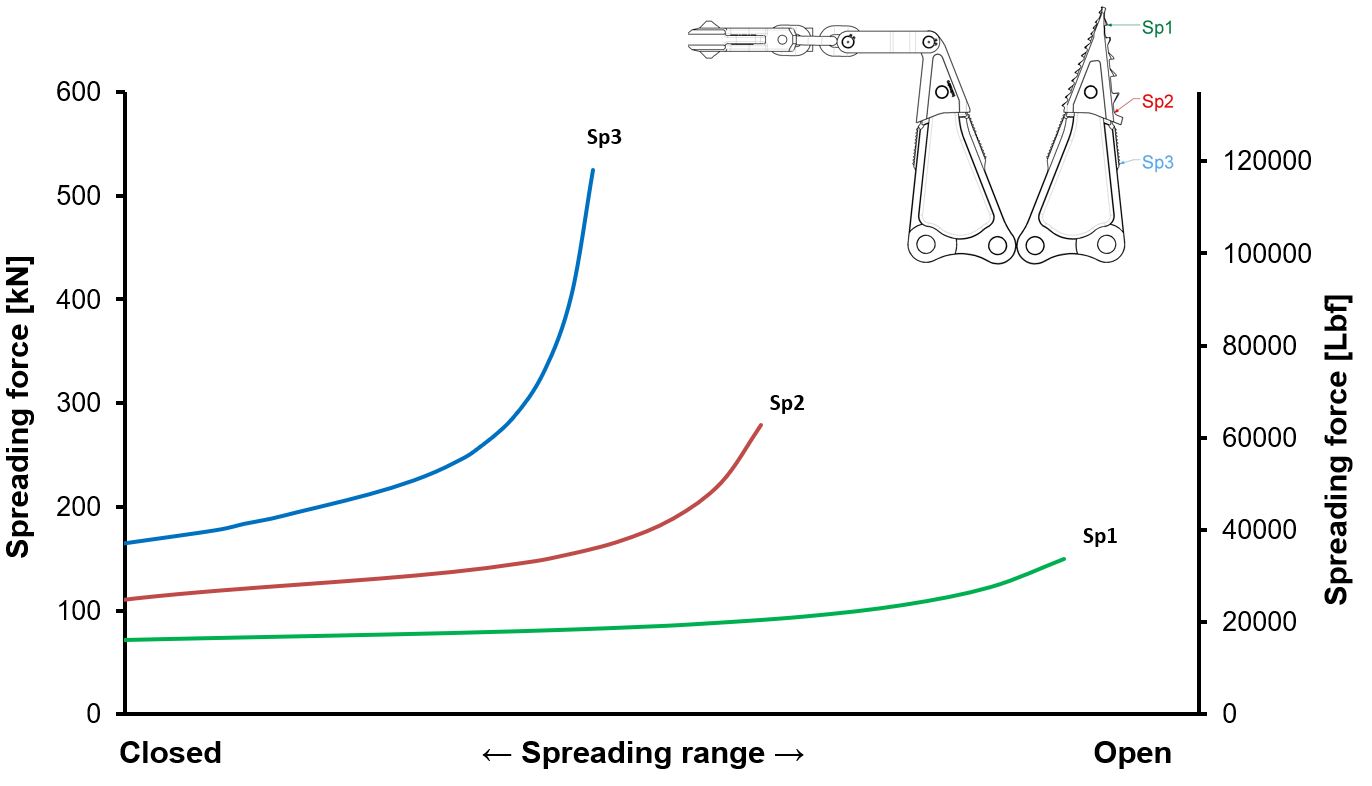

max. spreading force 522 / 53.2 (kN/t) 117350 lbf
theoretical calculated spreading force 875 / 89.2 (kN/t) 196708 lbf
min. spreading force (EN 13204) 62 / 6.3 (kN/t) 13938 lbf
spreading distance 820 mm 32.3 in

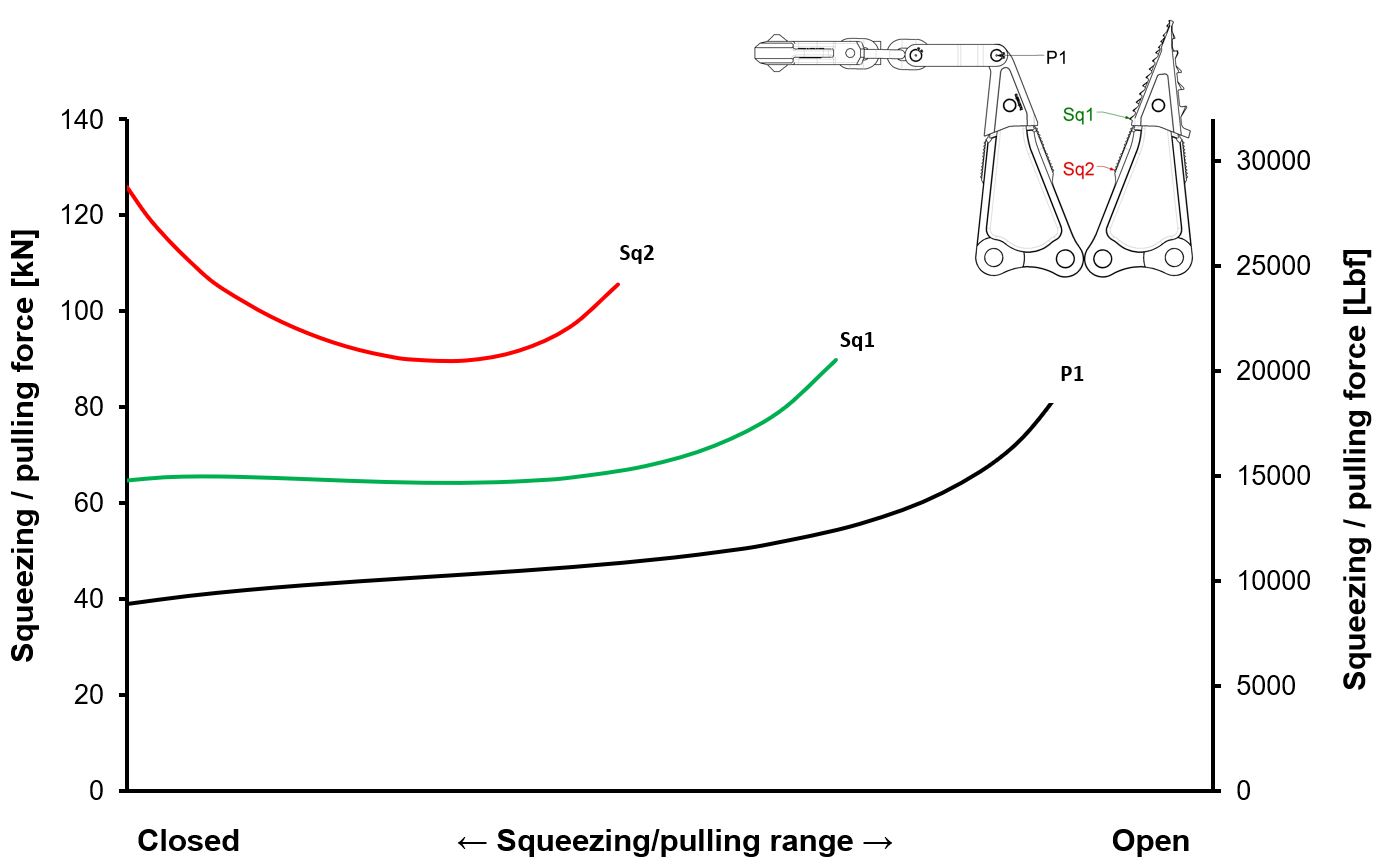

max. squeezing force 127 / 13 (kN/t) 28551 lbf
max. pulling force 79 / 8.1 (kN/t) 17760 lbf
pulling distance 700 mm 27.6 in
protection rate IP57
directives 2006/42/EC, 2014/30/EU, 2014/53/EU
Dimensions, weight and temperature
weight (excl. battery) 23.3 kg 51.4 lb
dimensions (AxBxC) 1052 x 319 x 274 mm 41.4 x 12.6 x 10.8 in
weight, ready for use (incl. battery) 24.9 kg 54.9 lb
Norms
EN 13204 classification BS62/820-24.9
NFPA 1960 compliant yes
EN 13204 compliant yes
NFPA 1960, HPF 79 / 8.1 (kN/t) 17760 lbf
NFPA 1960, HSF 112 / 11.4 (kN/t) 25179 lbf
NFPA 1960, LPF 38 / 3.9 (kN/t) 8543 lbf
NFPA 1960, LSF 60 / 6.1 (kN/t) 13489 lbf
Features
  • • Unparalleled speed for faster rescue operations
    - Fastest spreader on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
    - Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
  • • Ultimate speed control for more controlled tool handling
    - Two-speed inline control handle – Switch between high-speed and low-speed and keep perfect control at all times
  • • Guaranteed maximum power during a tool’s entire lifespan
    - Electronic motor control and pressure monitoring – Constant lifetime performance for every Pentheon tool
  • • Battery management made easy
    - Charge batteries directly on the tools with the On-Tool Charging System
    - Priority charging for on-tool batteries over batteries on a separate charger
    - Charge up to six batteries automatically – Connect up to three chargers to one single outlet
    - Holmatro battery – Power Pentheon tools as well as OmniLock struts (patented) and other upcoming Holmatro products
  • • Superb ergonomics for effortless handling
    - Easy tool operation on all sides of a vehicle – Inline control handle with 360° access
    - Hold every tool in any position – 360° carrying handle made of tough, damage-proof material
  • • Continue your mission under all conditions
    - Flawless performance under water, at high and low outdoor temperatures and in rain and snow
    - Easier communication during rescue operations – A new and improved drive system ensures tool operation at a lower sound level
    - Automatic LED lights in the carrying handle, powered by the main battery. The lights can also be operated manually
  • • Realtime tool insights to adapt and change tactics
    - Connect every tool to your tablet or phone with Bluetooth®
    - Easy to use and intuitive MyHolmatro app
    - Real-time diagnostics during every operation – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode
  • • Automatically keep your tools in perfect condition
    - Quickly and easily perform an automated Pentheon Self Check with the MyHolmatro app – Automatically check the drive system, speed and pressure, battery firmware and battery state of health
  • • Effortless tool maintenance
    - Premium tool service thanks to the Holmatro Inspection Procedures (HIP) – An extensive software program for Authorized Holmatro (Dealer) Service Technicians
  • • Phenomenal grip over the full spreading range
    - Extreme Grip Spreader Tips with teeth on the inside and outside offer immediate grip and bite sharply into the material
