Cutter PCU60

Cordless Inclined Cutter, part of the Holmatro Pentheon Series. Designed to offer you unrivaled performance, superior usability, advanced connectivity and exceptional serviceability.

Read more
Watch Wishlist

Insights at your fingertips

Get the MyHolmatro App now!

Next-Gen
Cutter PCU60
Cutter PCU60
Cutter PCU60
Cutter PCU60
Cutter PCU60
Cutter PCU60
  • Cutter PCU60
  • Cutter PCU60
  • video
  • video
  • video
  • Cutter PCU60
  • Cutter PCU60
  • Cutter PCU60
  • Cutter PCU60
Specifications
Details
Articlenumber 159.000.231
Basic specifications
model PCU60
max. working pressure 720 / 72 (bar/Mpa) 10443 psi
battery included no
Performance
max. cutting opening 205 mm 8.1 in
protection rate IP57
directives 2006/42/EC, 2014/30/EU, 2014/53/EU
theoretical cutting force 1765 / 180 (kN/t) 396788 lbf
General specifications
NCT yes
cutter jaw inclined
Dimensions, weight and temperature
weight (excl. battery) 23.5 kg 51.8 lb

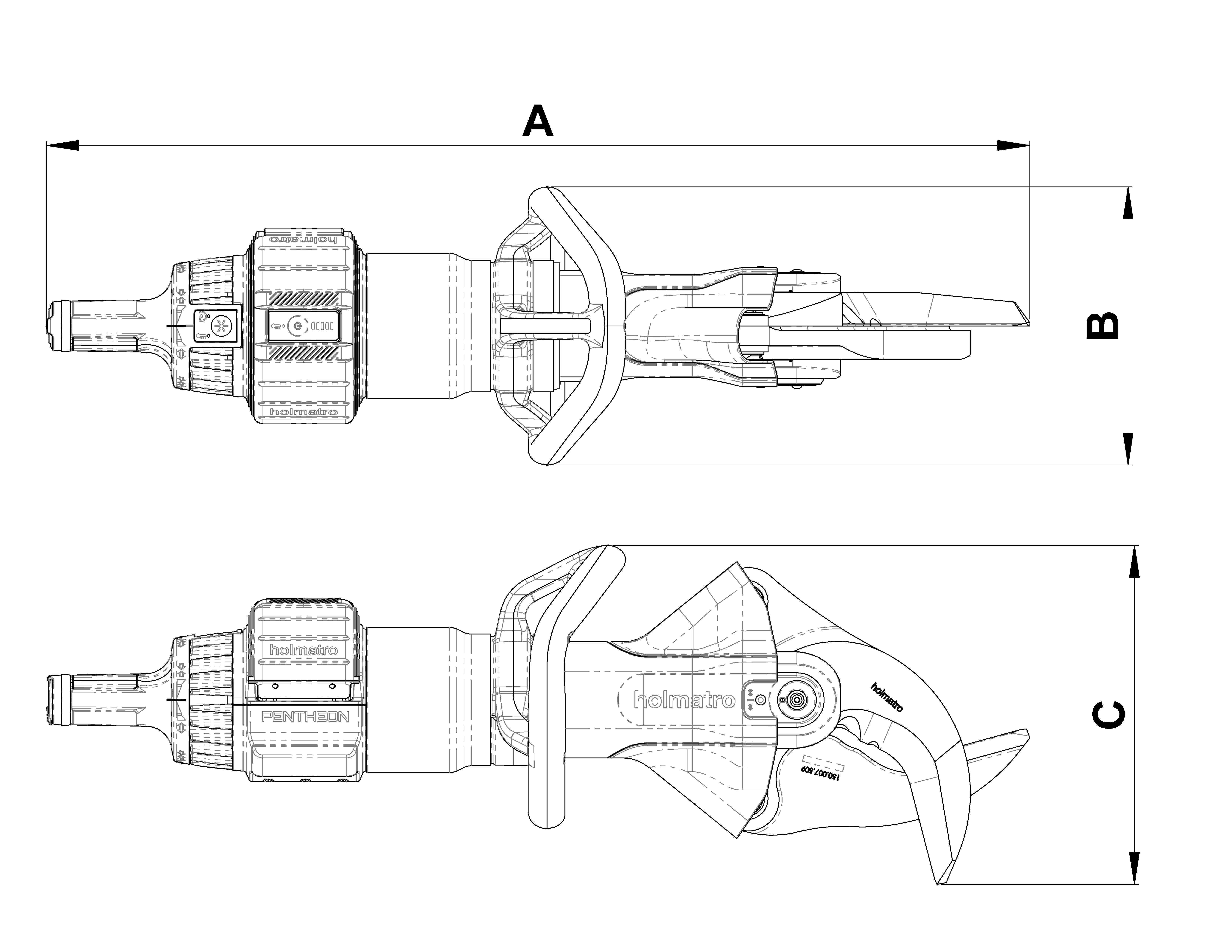

dimensions (AxBxC) 947 x 270 x 331 mm 37.3 x 10.6 x 13 in
weight, ready for use (incl. battery) 25 kg 55.1 lb
Norms
EN 13204 classification CC205K-25
NFPA 1960, cutting capacity A9 B9 C9 D9 E9 F4
NFPA 1960 compliant yes
EN 13204, cutting capacity 1K 2K 3K 4K 5K
EN 13204 compliant yes
Cutting performance
round bar (S235 acc. to EN 13204) 47 mm 1.9 in
Features
  • • Unparalleled speed for faster rescue operations
    - Fastest cutter on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
    - Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
  • • Ultimate speed control for more controlled tool handling
    - Two-speed inline control handle – Switch between high-speed and low-speed and keep perfect control at all times
  • • Guaranteed maximum power during a tool’s entire lifespan
    - Electronic motor control and pressure monitoring – Constant lifetime performance for every Pentheon tool
  • • Battery management made easy
    - Charge batteries directly on the tools with the On-Tool Charging System
    - Priority charging for on-tool batteries over batteries on a separate charger
    - Charge up to six batteries automatically – Connect up to three chargers to one single outlet
    - Holmatro battery – Power Pentheon tools as well as OmniLock struts (patented) and other upcoming Holmatro products
  • • Superb ergonomics for effortless handling
    - Easy tool operation on all sides of a vehicle – Inline control handle with 360° access
    - Hold every tool in any position – 360° carrying handle made of tough, damage-proof material
  • • Continue your mission under all conditions
    - Flawless performance under water, at high and low outdoor temperatures and in rain and snow
    - Easier communication during rescue operations – A new and improved drive system ensures tool operation at a lower sound level
    - Automatic LED lights in the carrying handle, powered by the main battery. The lights can also be operated manually
  • • Realtime tool insights to adapt and change tactics
    - Connect every tool to your tablet or phone with Bluetooth®
    - Easy to use and intuitive MyHolmatro app
    - Real-time diagnostics during every operation – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode
  • • Automatically keep your tools in perfect condition
    - Quickly and easily perform an automated Pentheon Self Check with the MyHolmatro app – Automatically check the drive system, speed and pressure, battery firmware and battery state of health
  • • Effortless tool maintenance
    - Premium tool service thanks to the Holmatro Inspection Procedures (HIP) – An extensive software program for Authorized Holmatro (Dealer) Service Technicians
  • • Maximized working space makes every operation safer
    - Safer, quicker and easier cutting without the need to reposition your tool – The inclined cutter jaw (mounted at a 30° angle) provides more space between the tool and the car
  • • Superior cutting performance on new and future cars
    - Optimum Holmatro blade design has offered superior cutting performance since 2003 – The U-shaped blades pull even the toughest materials into the cutting recess
