- Specifications
-

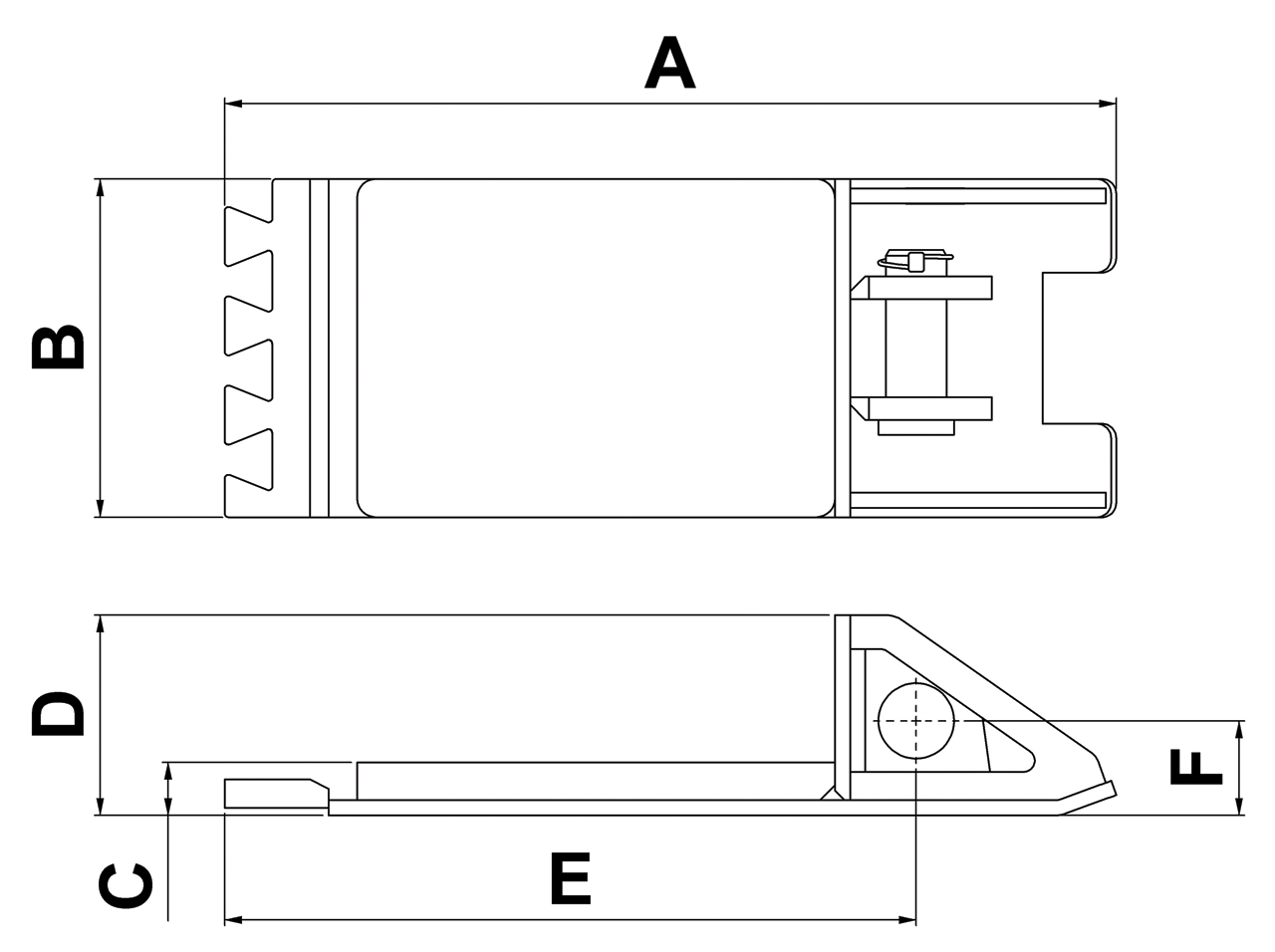

Details Articlenumber 100.003.315 Basic specifications model SPPB-LW Dimensions, weight and temperature weight, ready for use 9.5 kg 20.9 lb Technical drawing dimensions dimension A 472 mm 18.6 in dimension B 179 mm 7 in dimension C 28 mm 1.1 in dimension D 106 mm 4.2 in dimension E 366 mm 14.4 in dimension F 50 mm 2 in - Features
-
- • Low construction height; total height is 56 mm (2.20 inches)
- Efficient when there is limited insertion space - • Lightweight components with optimally placed grips
- Easy to carry, handle, position and assemble by one or two persons (no forklift needed)
- Reduces the physical burden
- Maximum performance at a minimum weight - • Modular system
- Easy to adapt to different load sizes and projects
- Plug and play; easy to assemble without the use of extra equipment
- • Low construction height; total height is 56 mm (2.20 inches)
